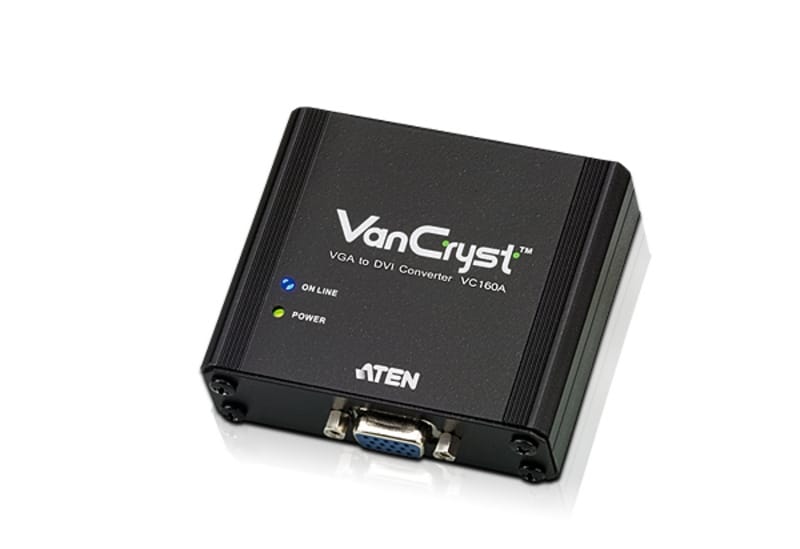

The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display. It uses dual power
sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.
Converts analog VGA signals to DVI output
Multiplatform support – Windows and Mac
No software required – eliminates incompatibility and installation issues
Compact and lightweight
Supports dual power sources – VGA port or power adapter (in case the VGA port cannot provide sufficient power)
Superior video quality – up to 1080P (HDTV) or 1920x1200 (PC)
Automatically detects video input signals (indicated by LED)
Smart Video Display – Image quality is optimized based on the available resolution of the output device
Screen Position Button – screen position can be adjusted and restored for each output resolution
Package Contents
1x VC160A VGA to DVI Converter
1x Power Adapter
1x User Instructions
| Features | |
| Internal The product is built in. |
 |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Video resolutions The amount of detail that can be seen in the video image. | 1920 x 1200 pixels |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 165 MHz |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | VGA (D-Sub) |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | DVI-D |
| Power | |
| Operating voltage Defines the range of operating voltages available | 5.3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79 mm |
| Depth The distance from the front to the back of something. | 78.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 250 g |
| Packaging data | |
| Quick installation guide |
|
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 119 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 320 g |
| Logistics data | |
| Master (outer) case net weight | 2.5 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.55 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 262640 |
| MPN | VC160A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
