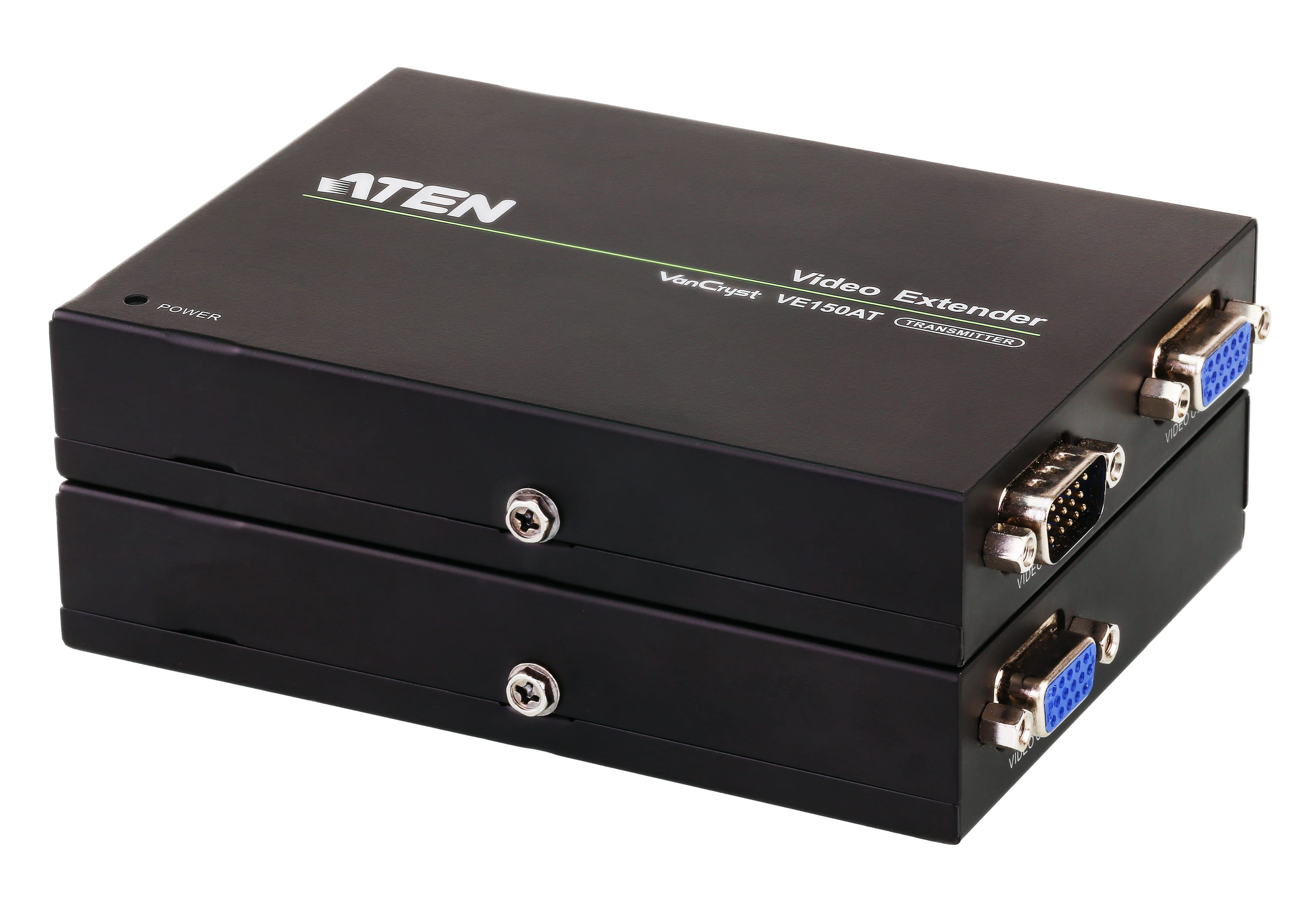

Aten Professional Video Extender VGA Via Cat5, Supports One local & One Remote Output, 1900x1200@60Hz 30m, 1280x1024@60hz 150m
VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
Uses Cat 5e cables to connect the local and remote units
Supports one local and one remote display
Long distance transmission " up to 150 m
Adjustable gain control " manually adjust signal strength to compensate for distance
Superior video quality " up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Built-in 8KV/15KV ESD protection
Supports DDC for the local monitor
Easy installation
Rack Mountable
Plug-and-play " no software installation required
Uses Cat 5e cables to connect the local and remote units
Supports one local and one remote display
Long distance transmission " up to 150 m
Adjustable gain control " manually adjust signal strength to compensate for distance
Superior video quality " up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Built-in 8KV/15KV ESD protection
Supports DDC for the local monitor
Easy installation
Rack Mountable
Plug-and-play " no software installation required
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1280 x 1024 pixels |
| Cable types supported | Cat5e |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 1024 (SXGA) |
| Cable length How long the cable is. | 150 m |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Power | |
| Operating voltage Defines the range of operating voltages available | 5.3 V |
| Power requirements | 1.2W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 86 x 119 x 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 250 g |
| SKU | 646380 |
| MPN | VE150A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
