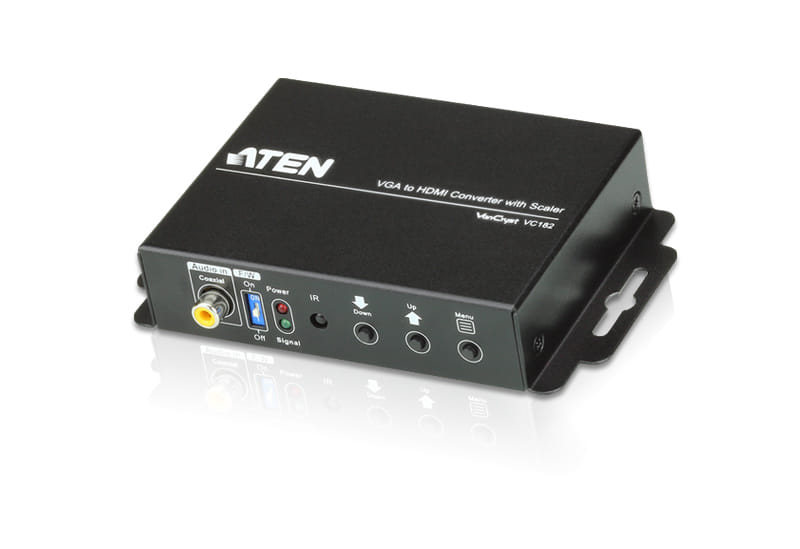

ATEN VC182-AT-U, Scaler video converter, Black, Metal, 1920 x 1200 pixels, 480i,480p,1080i,1080p, 4:3,16:10
The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.
| Features | |
| Converter type | Scaler video converter |
| Internal The product is built in. |
 |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 480i,480p,1080i,1080p |
| Supported aspect ratios The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device. | 4:3,16:10 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 165 MHz |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | VGA (D-Sub) |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.56 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 110 mm |
| Depth The distance from the front to the back of something. | 83 mm |
| Height The measurement of the product from head to foot or from base to top. | 28 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 420 g |
| Packaging data | |
| Quick installation guide |
|
| Quantity The number of products there are. | 1 |
| SKU | 541298 |
| MPN | VC182-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
