Aten VanCryst VGA to HDMI Converter with Audio
Details:

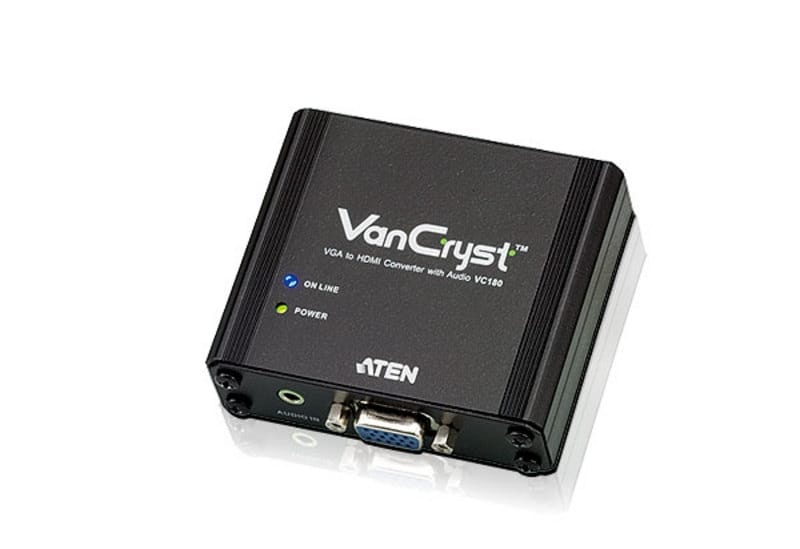

The VC180 is a VGA-to-HDMI Converter with Audio that lets you view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.
Specifications:
- Connectors:
- Video In: 1 x HDB-15 Female (Blue)
- Audio In: 1 x 3.5 mm Stereo Audio (Green)
- HDMI Out: 1 x HDMI Type A Female (Black)
- Power: 1 x DC Jack
- LEDs:
- Power: 1 (Green)
- On Line: 1 (Blue)
- Video: Up to 1920 x 1200 @ 60 Hz
- Power Consumption: DC5.3V, 3.2W
- Environment:
- Operating Temp. 0 - 50°C
- Storage Temp. -20 - 60°C
- Humidity: 0 - 80% RH, Non-condensing
- Physical Properties:
- Housing: Metal
- Weight: 0.15 kg
- Dimensions (LxWxH): 7.90 x 7.29 x 2.43cm
Package Contents
- 1 x VC180 VGA to HDMI Converter with Audio
- 1 x Power Adapter
- 1 x User Instructions
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | RoHS |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080i,1080p,480p,720p |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | VGA |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Power | |
| External power adapter |
 |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79 mm |
| Depth The distance from the front to the back of something. | 72.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 150 g |
| Packaging data | |
| Manual |
|
| SKU | 262633 |
| MPN | VC180-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
