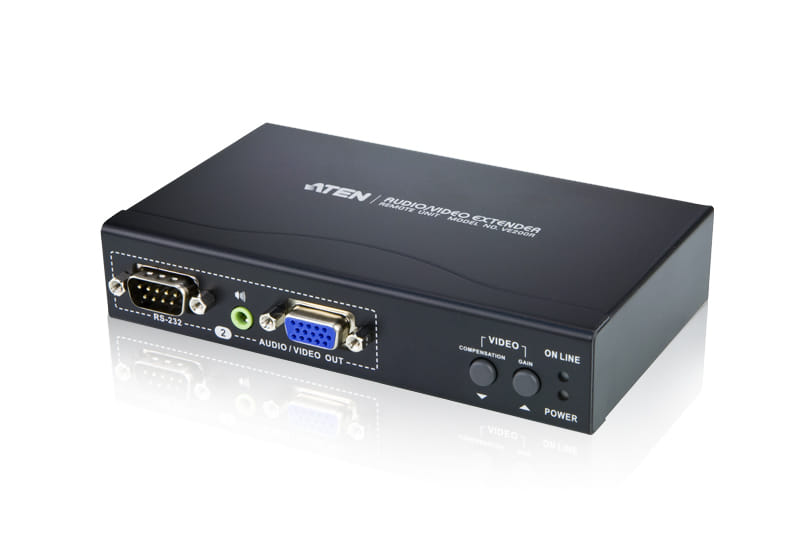

Aten VGA/Audio/RS-232 Cat 5 Receiver with Dual Output (1280 x 1024@200m) (LS)
Features:
Transmission distance up to 200 m*
High-quality video " up to 1920x1200@60Hz at 30 m, 1600x1200@60Hz at 150 m, 1280x1024@60Hz at 200 m
Audio and serial enabled
Supports dual outputs
Two gain control modes for sharpest picture quality
Video gain and compensation adjustable via OSD
IR receiver for quick and easy video quality adjustment
IR remote control for screen on/off and video adjustment at remote site
Automatic and adjustable gain control " adjust signal strength to compensate for distance
Provide a RS-232 channel for selection**
Follows VESA FDMI mount standard
Supports DDC for the local monitor
Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
Video Output
Interfaces 2 x HDB-15 Female (Blue)
Impedance 75
Video
Max. Bandwidth 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1600 x 1200@150m
Audio Outputs
Interfaces 2 x Mini Stereo Jack Female (Green)
Control
RS-232 2 x DB-9 Male (Black)
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5.3V:3.65W:17BTU
Environmental
Operating Temperature 0-50 DegC
Storage Temperature -20 - 60 DegC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.35 kg ( 0.77 lb )
Dimensions (L x W x H) 13.90 x 8.80 x 2.86 cm
(5.47 x 3.46 x 1.13 in.)
Carton Lot 5 pcs
Transmission distance up to 200 m*
High-quality video " up to 1920x1200@60Hz at 30 m, 1600x1200@60Hz at 150 m, 1280x1024@60Hz at 200 m
Audio and serial enabled
Supports dual outputs
Two gain control modes for sharpest picture quality
Video gain and compensation adjustable via OSD
IR receiver for quick and easy video quality adjustment
IR remote control for screen on/off and video adjustment at remote site
Automatic and adjustable gain control " adjust signal strength to compensate for distance
Provide a RS-232 channel for selection**
Follows VESA FDMI mount standard
Supports DDC for the local monitor
Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
Video Output
Interfaces 2 x HDB-15 Female (Blue)
Impedance 75
Video
Max. Bandwidth 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1600 x 1200@150m
Audio Outputs
Interfaces 2 x Mini Stereo Jack Female (Green)
Control
RS-232 2 x DB-9 Male (Black)
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5.3V:3.65W:17BTU
Environmental
Operating Temperature 0-50 DegC
Storage Temperature -20 - 60 DegC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.35 kg ( 0.77 lb )
Dimensions (L x W x H) 13.90 x 8.80 x 2.86 cm
(5.47 x 3.46 x 1.13 in.)
Carton Lot 5 pcs
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 200 m |
| Audio system System used to play music or speech. | stereo |
| LED indicators |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| VGA (D-Sub) output ports | 2 |
| Audio output The type of audio output that the device produces, and the connector(s). | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| External power adapter |
|
| Power requirements | DC 5.3V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 80.3 x 139 x 28.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 340 g |
| Packaging content | |
| Manual |
|
| SKU | 541307 |
| MPN | VE200R-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter, Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
