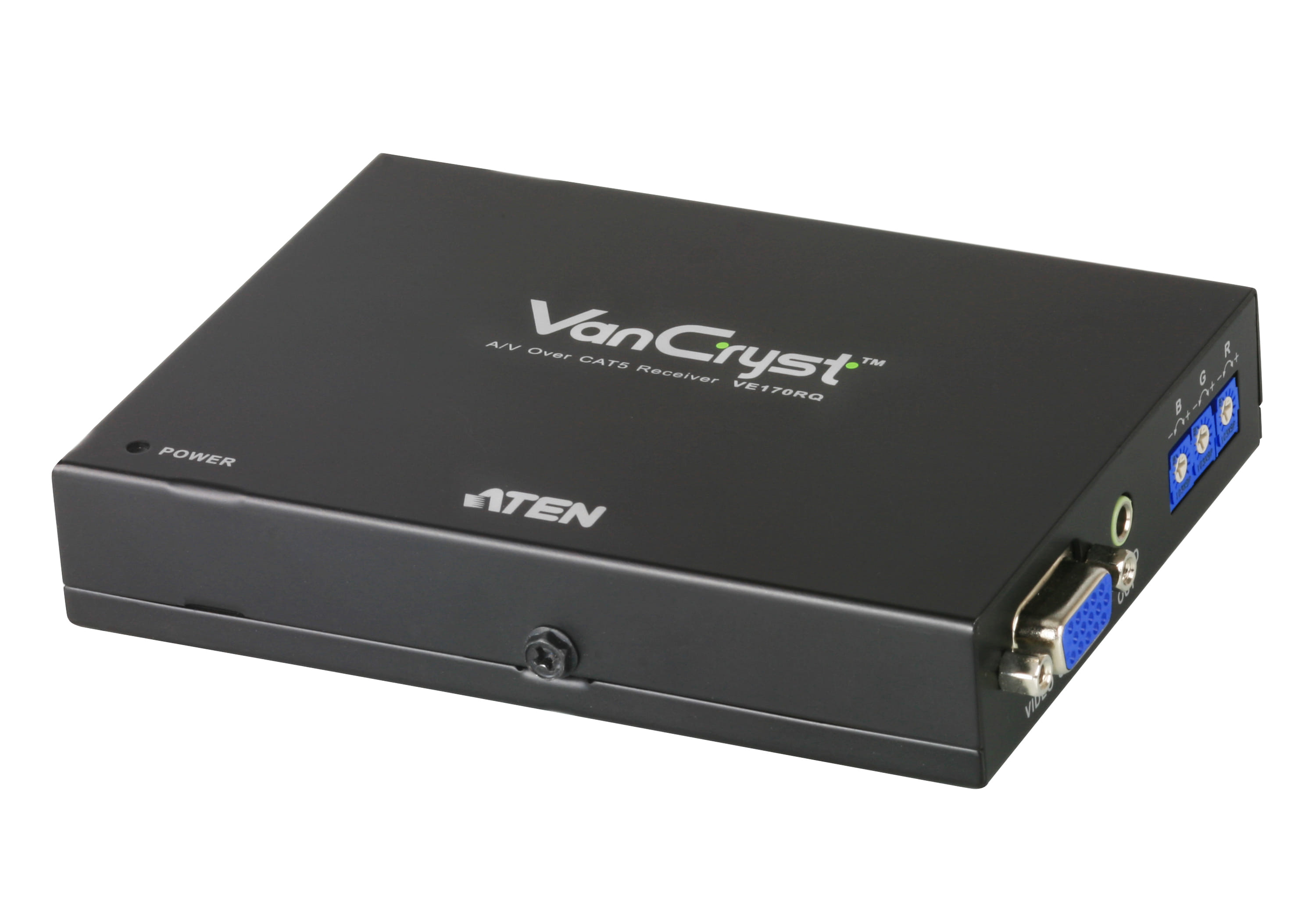

Aten VGA/Audio Cat 5 Receiver with Deskew
Item No:
700349
MPN:
VE170RQ-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VE170RQ AT U, 1920 x 1200 pixels, AV receiver, 300 m, Wired, Black
The VE170RQ A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost effective and efficient solution for sending and receiving high quality audio and video content.
The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.
The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 75 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| RJ-45 input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (receiver) (max) | 4.82 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 90.4 x 127.7 x 22.6 mm |
| Receiver weight | 240 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 700349 |
| MPN | VE170RQ-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
