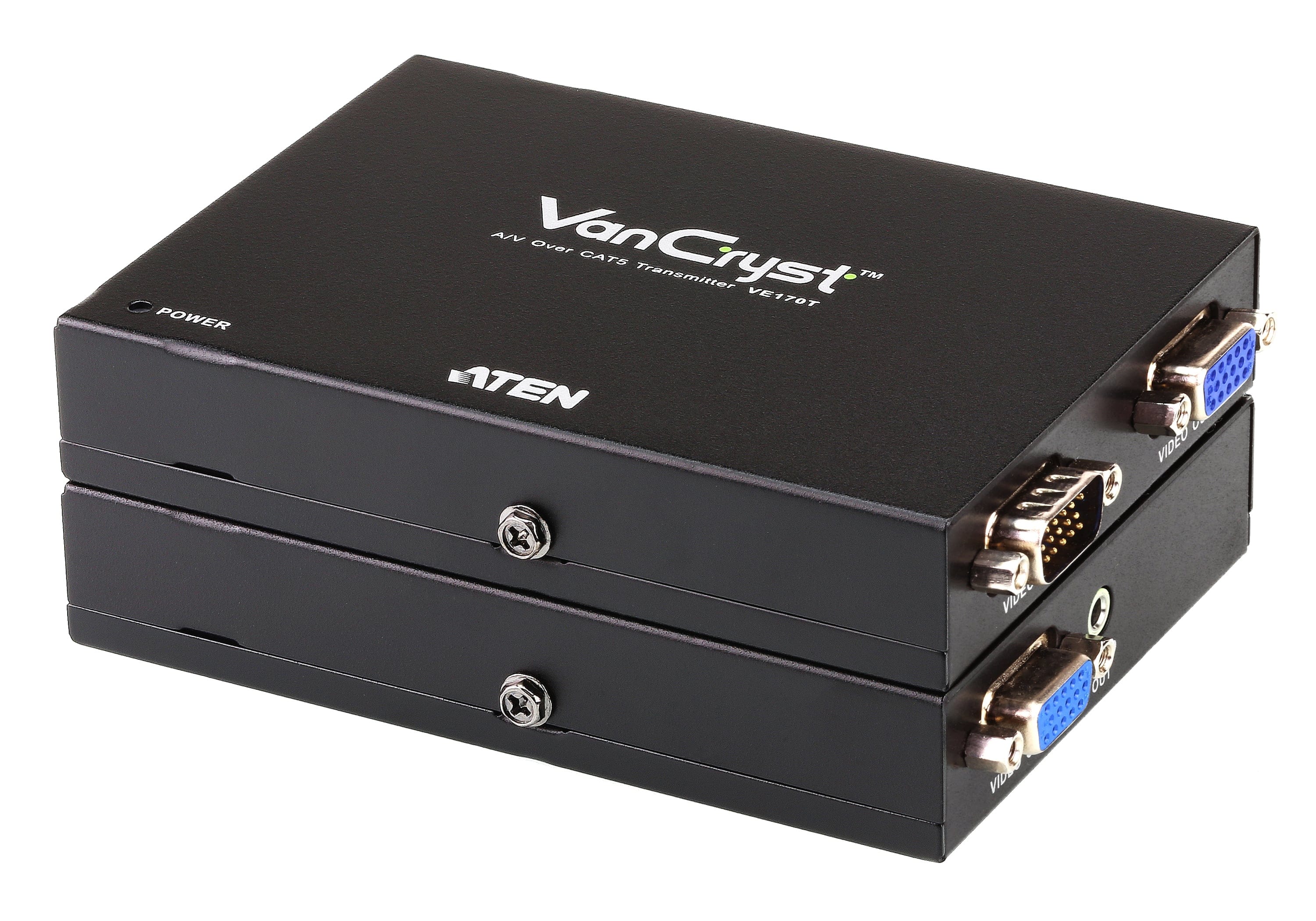

Aten VGA/Audio Cat 5 Extender
Item No:
700343
MPN:
VE170-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VE170 AT U, 1920 x 1200 pixels, AV transmitter & receiver, 300 m, Wired, Black
The VE170 VGA / Audio Cat 5 Extenders, consisting of a transmitter (VE170T) and receiver (VE170R), are cost effective and efficient solutions for sending and receiving high quality audio/video content over long distances. Simply connect the transmitter to the receiver via one Cat 5e cable, and a VGA display or projector can be located up to 300 m (1000 ft) away from the video source.
The VE170 VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance.
The VE170 VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 75 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| VGA (D-Sub) output ports | 2 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage (transmitter) | 5.3 V |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (transmitter) (max) | 2.66 W |
| Power consumption (receiver) (max) | 3.66 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 90.4 x 127.7 x 22.6 mm |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 90.4 x 127.7 x 22.6 mm |
| Transmitter weight | 240 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 700343 |
| MPN | VE170-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
