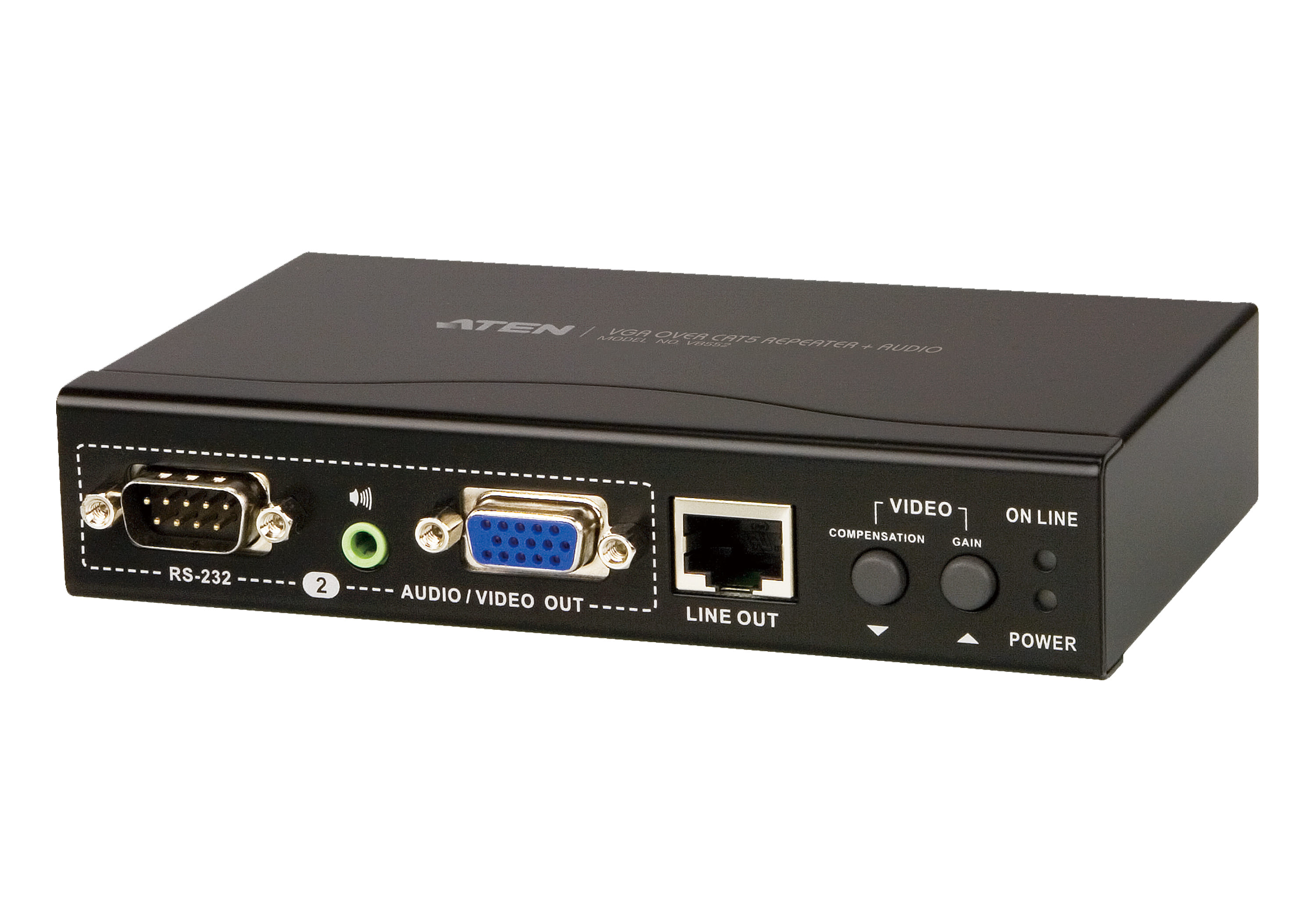

Aten VGA /Audio/232 Cat 5 Repeater with Dual Output
Item No:
700334
MPN:
VB552-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VB552 AT U, 1920 x 1200 pixels, AV receiver, 150 m, Wired, Black
The VB552 VGA Over Cat 5 Repeater Audio is an audio/video signal extension device which is compatible with ATEN Cat 5 Audio/Video splitters. The VB552 extends the audio/video transmission range an extra 500 feet (150m) over Cat 5e (or higher) cables. The use of an additional repeater means the audio/video signals can be transmitted over even longer distances, up to 1470 feet (450m).
Furthermore, for longer distance installations where video signals may degrade, the VB552 has adjustable video gain and compensation controls to provide the sharpest video quality possible. An IR remote control also provides picture control at the remote site.
Rack mountable, with two RS 232 channels on the unit for selection, and support for high video resolutions, the VB552 is the perfect solution to extend the range of your A/V and serial transmissions in any installation environment requiring VESA FDMI mount standards.
Furthermore, for longer distance installations where video signals may degrade, the VB552 has adjustable video gain and compensation controls to provide the sharpest video quality possible. An IR remote control also provides picture control at the remote site.
Rack mountable, with two RS 232 channels on the unit for selection, and support for high video resolutions, the VB552 is the perfect solution to extend the range of your A/V and serial transmissions in any installation environment requiring VESA FDMI mount standards.
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Maximum refresh rate | 60 Hz |
| LED indicators |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200, 1920 x 1200 (WUXGA) |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 300 MHz |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Control type The way in which the device is controlled. | Buttons |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 75 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| VGA (D-Sub) output ports | 2 |
| RS-232 output ports | 2 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5.3 V |
| Operating voltage (receiver) | 4.92 V |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 139 mm |
| Depth The distance from the front to the back of something. | 88 mm |
| Height The measurement of the product from head to foot or from base to top. | 28.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 350 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| IR blaster included |
|
| IR receiver included |
|
| Mounting kit |
|
| SKU | 700334 |
| MPN | VB552-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
