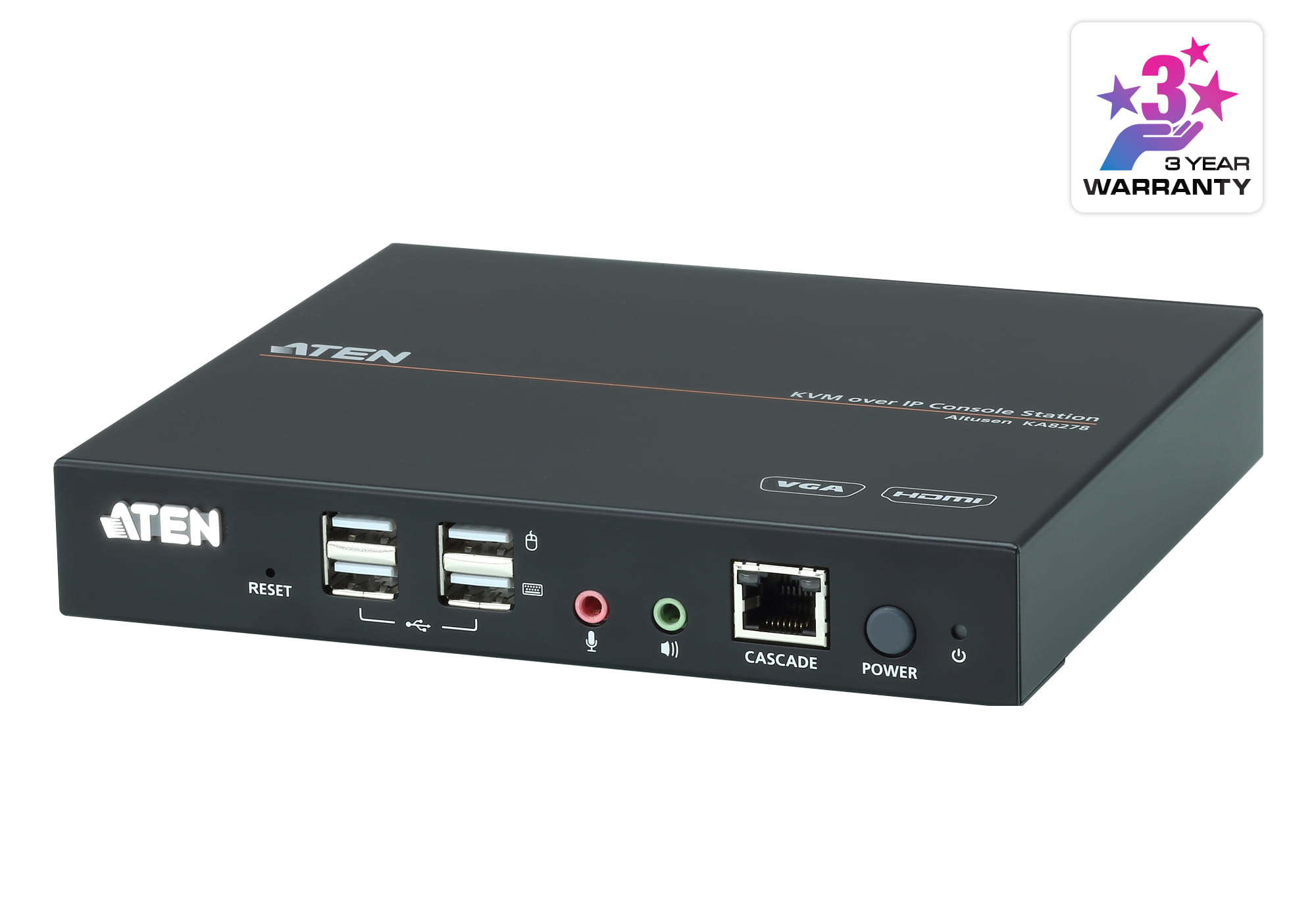

Aten VGA And HDMI KVM over IP Console Station
Skip to the beginning of the images gallery

Aten VGA And HDMI KVM over IP Console Station

Item No:
700064
MPN:
KA8278-AX-U
$1,689.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Product Related Products Related Summary Summary Details Details Specifications Specs Reviews Reviews
Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with design for 0U rack space
Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space
A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN s KVM over IP switches*
Advanced FPGA graphics processor with a Full HD resolution of 1920 x 1200
Panel Array Mode allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
Space-saving 0U rack mount design for rear rack mounting

Specifications
Connectors
Video 1 x HDB-15 Female
1 x HDMI Female
RS-232 1 x DB-9 Male
Power 1 x DC Jack
Audio 2 x Audio Jack Female
LAN Ports 1 x RJ-45 Female
Keyboard 1 x USB Type-A Female
Mouse 1 x USB Type-A Female
USB Port 2 x USB Type-A Female
Cascade Port 1 x RJ-45 Female
LEDs
Power 1 (Blue)
Switches
Power 1 x Push button
Reset 1 x Semi-recessed Push button
Video 1920 x 1200 @ 60Hz
Power Consumption DC 5V:6.53W:56.18BTU
Environmental
Operating Temperature 0 -40 DegC
Storage Temperature -20 - 60 DegC
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.80 kg ( 1.76 lb )
Dimensions (L x W x H) 17.42 x 15.54 x 2.88 cm
(6.86 x 6.12 x 1.13 in.)
Compatible Appliances
KVM over IP switches KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A.
Ports & interfaces
Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. USB
Mouse port type USB
Video port type The type of socket in the device for connecting a video e.g. SCART. HDMI/VGA
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 1
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. 1
USB connector type The type of USB connector/port that this product has. USB Type-A
Serial port type DE-9 (DB-9)
Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs Number of sockets /ports where headphones are connected. 1
Number of microphone inputs 1
DC-in jack The socket/plug where the DC electricity supply connects to the device.
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
Performance
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). Full HD+
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. 1920 x 1200 pixels
Video bandwidth 60 Hz
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white. Black
Housing material What the casing of the product is made of. Metal
LED indicators Power
Push button
Display
Built-in display A display which is part of the product, so you do not need to attach another display.
Power
Power source What is providing power for the product e.g. mains electricity. DC
DC input voltage 5 V
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 6.53 W
Sustainability
Sustainability certificates RoHS
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width The measurement or extent of something from side to side. 155.4 mm
Depth The distance from the front to the back of something. 174.2 mm
Height The measurement of the product from head to foot or from base to top. 28.8 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 800 g
Packaging content
Cables included AC
Manual
AC adapter included
More Information
SKU 700064
MPN KA8278-AX-U
Brand ATEN
Product Condition Brand New/Unused
Product Use General
Warranty Period 2 Years Warranty
Warranty Contact https://www.aten.com/
