The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions.

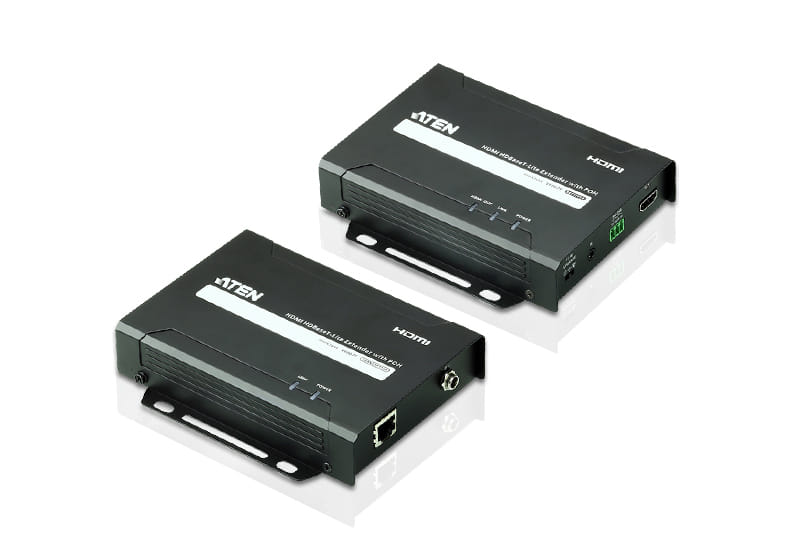

ATEN VE802 HDMI HDBaseT-Lite Extender with POH - 4K at 40m (HDBaseT Class B)
The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.
Specifications:
- Video Input:
- Interface 1 x HDMI Type A Female (Black)
- Impedance 100?
- Max distance 1.8 m
- Video Output:
- Interface 1 x HDMI Type A Female (Black)
- Impedance 100 ?
- Video:
- Max. data rate 10.2Gbps (3.4Gbps per lane)
- Max. pixel clock 340 MHz
- Compliance HDMI (3D, Deep Color, 4K) ; HDCP Compatible ; Consumer Electronics Control (CEC)
- Max resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a)
- Audio:
- Input 1 x HDMI Type A Female (Black)
- Output 1 x HDMI Type A Female (Black)
- Control:
- RS-232 Connector 1 x Terminal Block, 3 pole
- Baud rate and protocol Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
- IR 1 x Mini Stereo Jack Female (Black)
- Power:
- Connector 1 x DC Jack (Black) with locking
- Consumption VE802T: DC5V, 3.6W; VE802R: DC5V, 4W
- Environment:
- Operating Temp. 0- 50°C
- Storage Temp. -20°C - 60°C
- Humidity 0 - 80% RH, Non-condensing
- Physical Properties
- Housing Metal
- Weight VE802T: 0.44 kg; VE802R: 0.46 kg
- Dimensions(L x W x H) 14.48 x 12.30 x 3.00 cm
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160,4096 x 2160 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 350 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Consumer Electronics Control (CEC) support |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| RS-232 output ports | 2 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| Remote (IR) output | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.6 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 144.9 x 123 x 30 mm |
| Receiver weight | 460 g |
| Transmitter dimensions (WxDxH) | 144.9 x 123 x 30 mm |
| Transmitter weight | 440 g |
| SKU | 234780 |
| MPN | VE802-AT-U |
| Brand | ATEN |
