The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location.

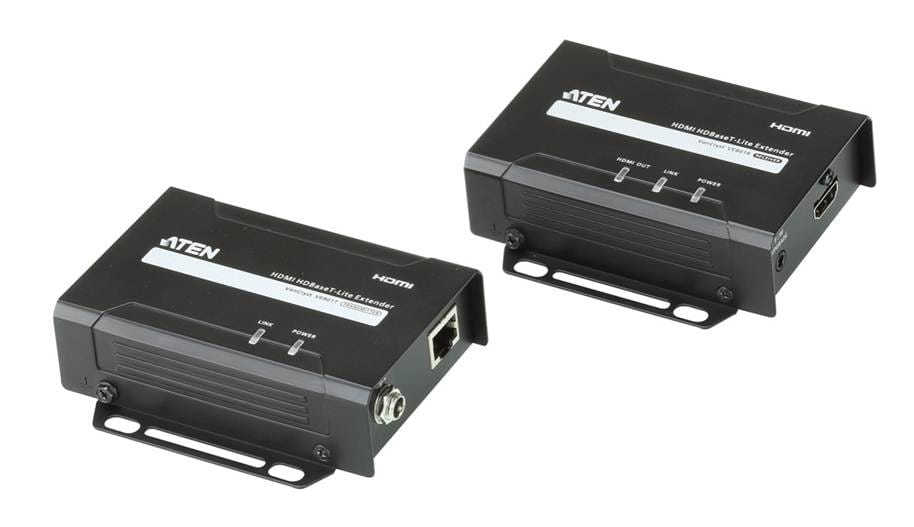

ATEN VE801 HDMI HDBaseT-Lite Extender (4K@40m) (HDBaseT Class B)
The VE801 HDMI HDBaseT Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
Specifications:
- Video Input: Interface 1 x HDMI Type A Female (Black)
- Impedance: 100 ohm
- Max distance: 1.8 m
- Video Output: Interface 1 x HDMI Type A Female (Black)
- Impedance: 100 ohm
- Video: Max. data rate 10.2Gbps (3.4Gbps per lane)
- Max. pixel clock: 340 MHz
- Compliance: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Max resolutions / Distance: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a)
- Audio: Input 1 x HDMI Type A Female (Black)
- Output: 1 x HDMI Type A Female (Black)
- Power: Connector 1 x DC Jack (Black) with locking
- Consumption: VE801T: DC5V, 1.85W; VE801R: DC5V, 4.23W
- Environment: Operating Temp. 0-50°C
- Storage Temp.: -20°C - 60°C
- Humidity: 40% - 85% RH, Non-condensing
- Physical Properties: Housing Metal
- Weight: VE801T: 0.24 kg VE801R: 0.25 kg
- Dimensions (L x W x H): 10.30 x 8.70 x 3.00 cm
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat5,Cat6,Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 780 g |
| Receiver dimensions (WxDxH) | 34.3 x 98.6 x 30 mm |
| Receiver weight | 250 g |
| Transmitter dimensions (WxDxH) | 34.3 x 98.6 x 30 mm |
| Transmitter weight | 240 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 841 g |
| Packaging content | |
| AC adapter included |
|
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.6 kg |
| Master (outer) case net weight | 3.9 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 234773 |
| MPN | VE801-AT-U |
| Brand | ATEN |
