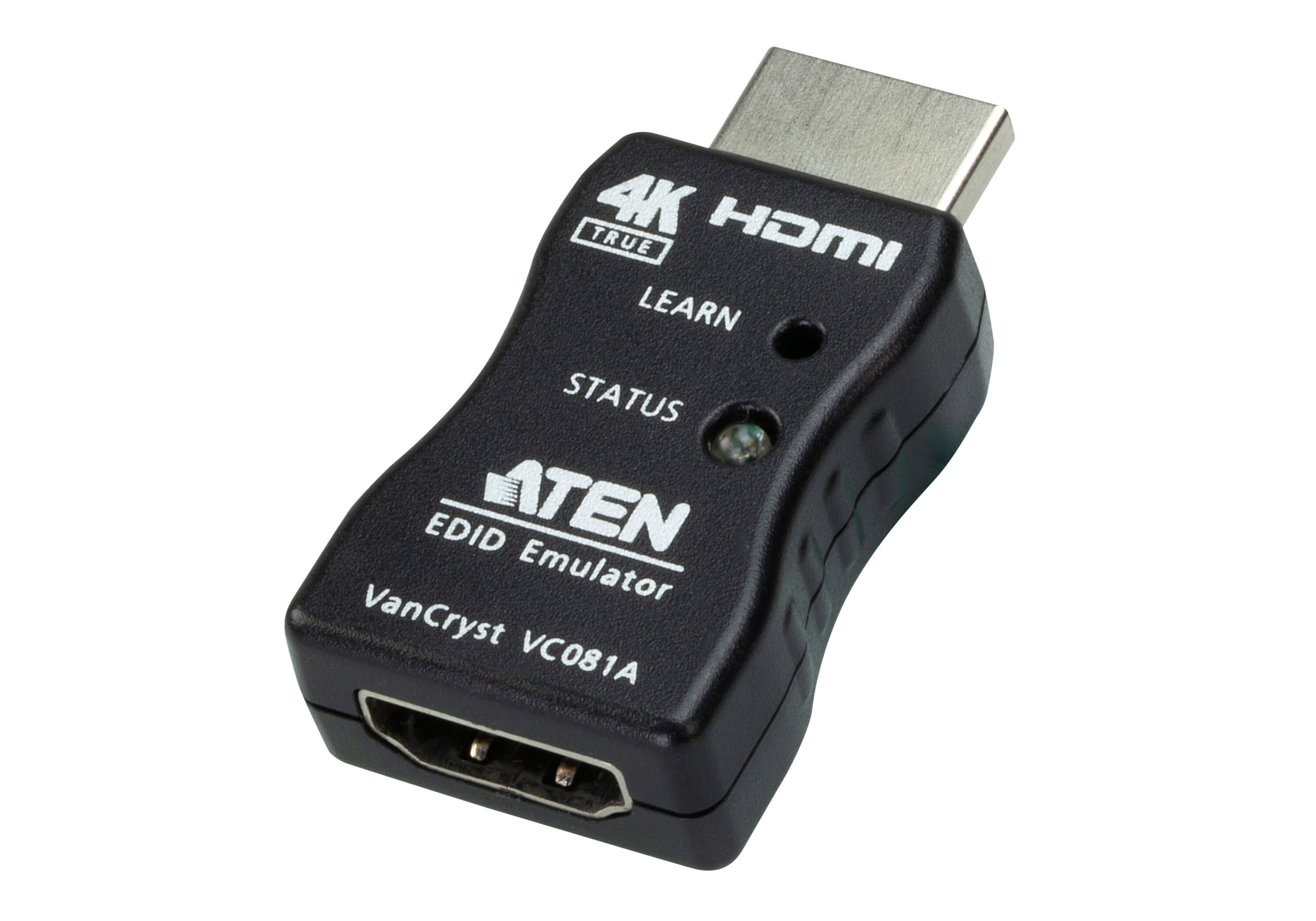

ATEN True 4K HDMI EDID Emulator Adapter, 3840 x 2160 pixels, Black, Plastic, HDMI, 20 pc(s), 1.64 kg
As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.
This new member contains a unique Learn Button Switch to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.
This new member contains a unique Learn Button Switch to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.
| Features | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Consumer Electronics Control (CEC) support |
 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
|
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case gross weight | 1.64 kg |
| Master (outer) case length | 26 cm |
| Master (outer) case width | 24.5 cm |
| Master (outer) case height | 28.5 cm |
| Master (outer) case net weight | 160 g |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 44 mm |
| Depth The distance from the front to the back of something. | 24 mm |
| Height The measurement of the product from head to foot or from base to top. | 11.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8 g |
| Packaging data | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Package width The distance from one side of the packaging to the other. | 42 mm |
| Package depth The distance from the front to the back of the packaging. | 124 mm |
| Package height The distance from the top to the bottom of the packaging. | 129 mm |
| Package weight Weight of the packaged product. | 82 g |
| SKU | 569016 |
| MPN | VC081A-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
