Aten USB VGA /Audio Cat 5 KVM Extender Extender
Item No:
699755
MPN:
CE800B-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN CE800B AT U, Transmitter & receiver, Wired, 250 m, Cat5e, 1920 x 1200 pixels, 1024 x 768 pixels

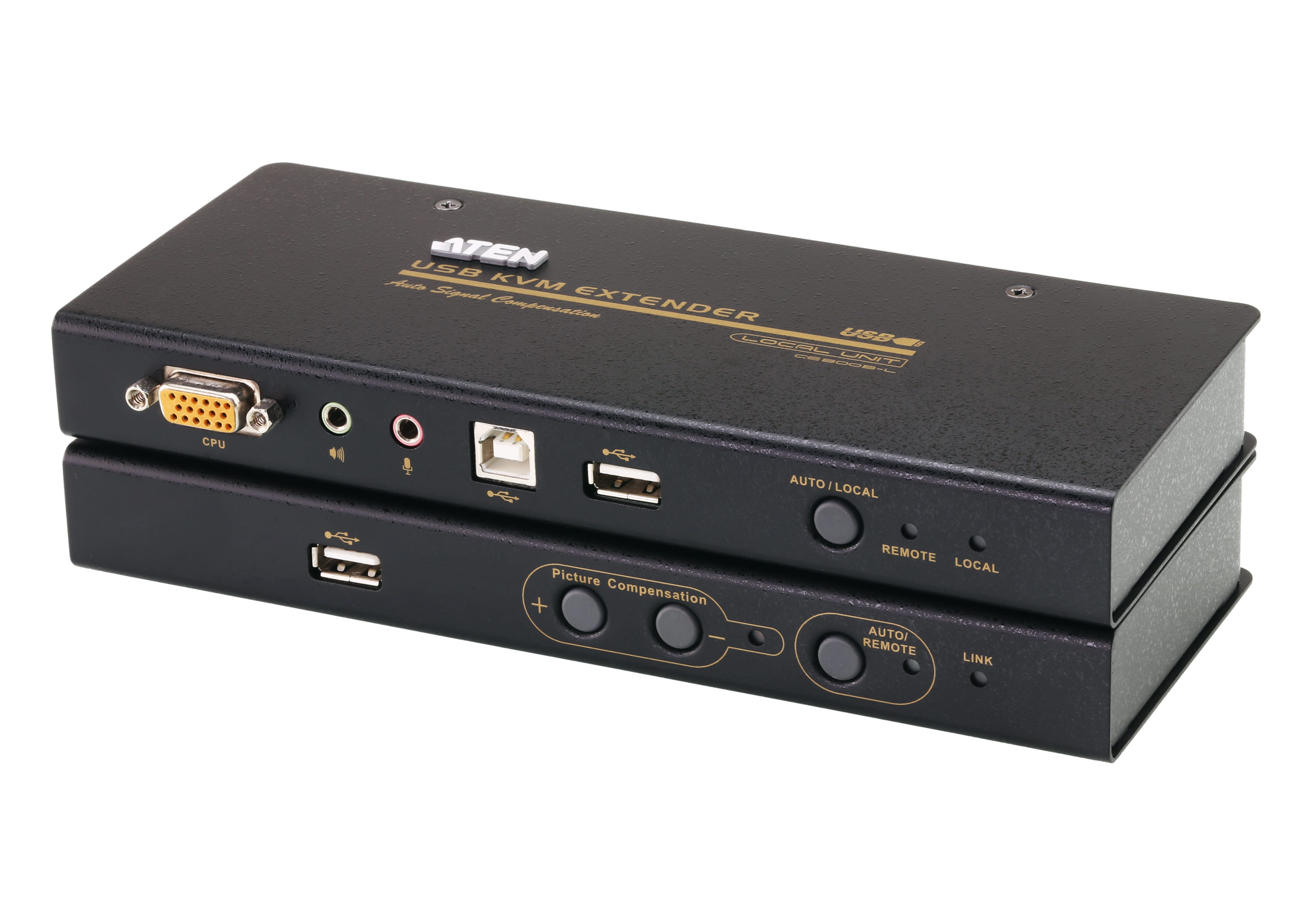

The CE800B USB KVM Extender with on board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place away from dust, dirt, and harsh environmental influences.
The CE800B has built in USB ports that support USB Mass Storage compliant flash drives. The addition of a Type B USB port on the local unit means that the flash drive facility is fully supported in both PC only and KVM switch installation.
The CE800B has built in USB ports that support USB Mass Storage compliant flash drives. The addition of a Type B USB port on the local unit means that the flash drive facility is fully supported in both PC only and KVM switch installation.
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 250 m |
| Cable types supported | Cat5e |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 1024 x 768 pixels |
| KVM port selection | Push-buttons |
| Firmware upgradeable |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| LED indicators |
|
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local video port |
|
| Transmitter local video port type | VGA |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| Power consumption (transmitter) (max) | 6 W |
| Power consumption (receiver) (max) | 6 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.16 cm |
| Transmitter height | 2.63 cm |
| Transmitter weight | 490 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.63 cm |
| Receiver height | 2.63 cm |
| Receiver weight | 510 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | KVM, USB |
| Manual |
|
| Quick installation guide |
|
| SKU | 699755 |
| MPN | CE800B-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
