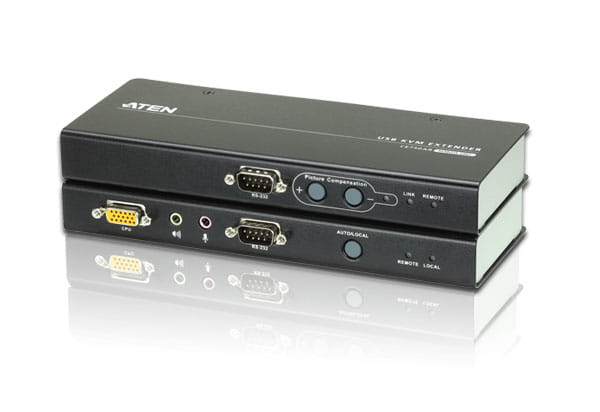

ATEN USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)

ATEN USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)

Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).

Specifications:

Connectors

• Console Ports:
  • 2 x USB Type A Female (White)
  • 1 x HDB-15 Female (Blue)
  • 1 x Mini Stereo Jack Female (Green)
  • 1 x Mini Stereo Jack Female (Pink)
  • 1 x DB-9 Female (Black)
  • 1 x RJ-45 Female
  • 1 x DC Jack
• KVM Ports:
  • CE750L:
    • 1 x SPHD-15 Female (Yellow)
    • 1 x Mini Stereo Jack Female (Green)
    • 1 x Mini Stereo Jack Female (Pink)
  • CE750R: N/A

LEDs

• CE750L:
  • Local: 1 (Green)
  • Remote: 1 (Green)
  • Link: N/A
  • Picture Compensation: N/A
• CE750R:
  • Local: N/ A
  • Remote: 1 (Green)
  • Link: 1 (Green)
  • Picture Compensation: 1 (Orange)

Pushbuttons

• CE750L:
  • Operating Mode Selection: 1 x Pushbutton
  • Picture Compensation: N/A
• CE750R:
  • Operating Mode Selection: N/A
  • Picture Compensation: 2 x Pushbuttons

Emulation

• Keyboard/ Mouse: USB

Video

• 1920x1200@60Hz at 30m;
• 1600x1200@60Hz at 150m;
• 1280x1024@60Hz at 200m

Power Consumption

• CE750L: DC5.3V/2.68W
• CE750R: DC5.3V/3.6W

Environmental

• Operating Temperature: 0-50°C
• Storage Temperature: -20-60°C
• Humidity: 0-80% RH, Non-condensing

Physical Properties

• Housing: Metal
• Weight: 0.47 kg (1.04 lb)
• Dimensions: (L x W x H) 20.20 x 8.01 x 2.50 cm
