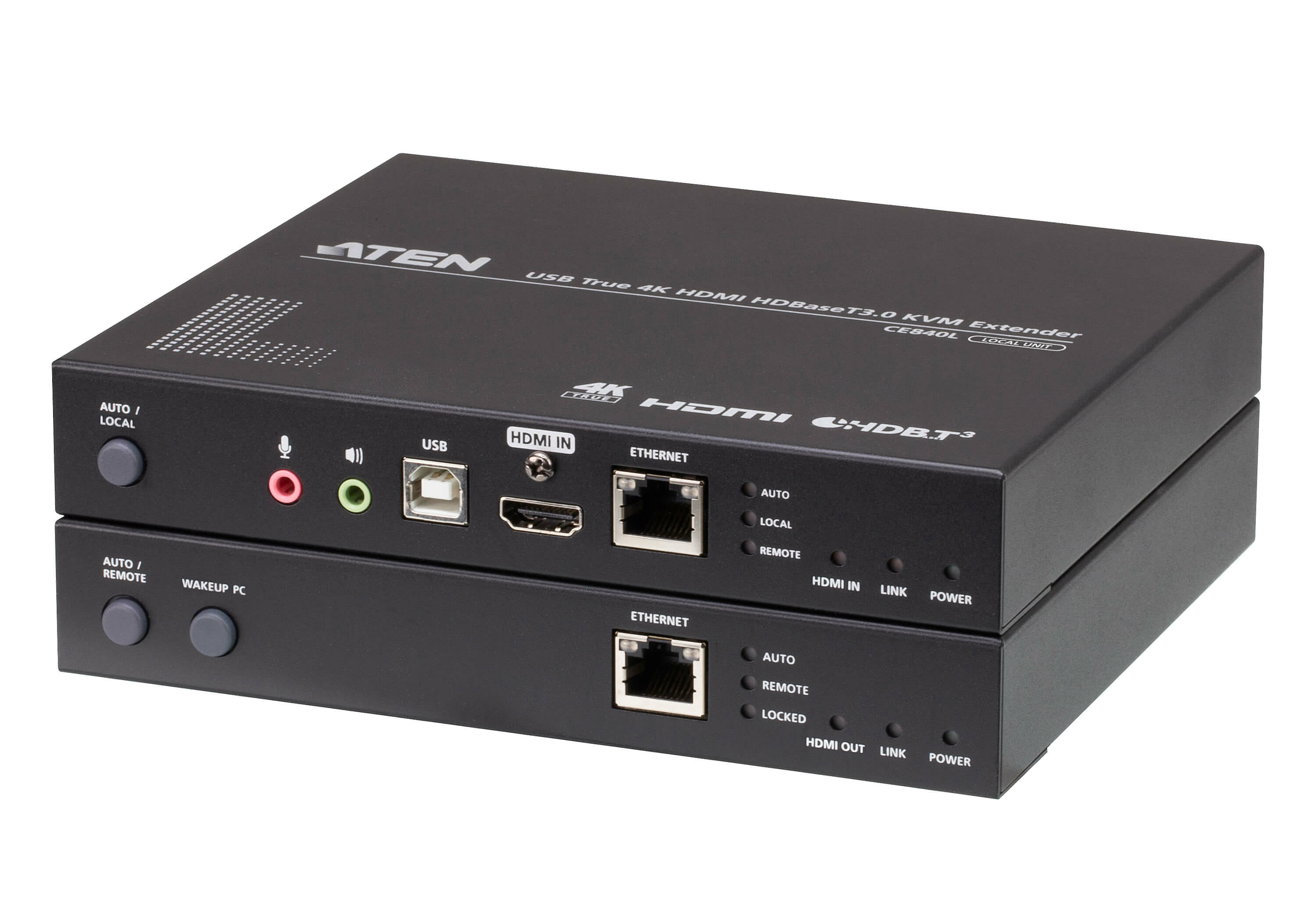

Aten USB True 4K HDMI HDBaseT3.0 KVM Extender
Item No:
791990
MPN:
CE840-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN CE840-AT-U, Transmitter & receiver, Wired, 100 m, 4096 x 2160 pixels, 4096 x 2160 3840 x 2160, Black
Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.
The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential.
The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential.
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum digital resolution | 4096 x 2160 pixels |
| Supported resolutions | 4096 x 2160 3840 x 2160 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators |
 |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port |
|
| Transmitter local video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter USB Type-B ports quantity | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB port type | USB Type-B |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Power | |
| Power consumption (transmitter) (max) | 7.36 W |
| Power consumption (receiver) (max) | 7.37 W |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| DC voltage | 12 V |
| Weight & dimensions | |
| Transmitter width | 15.6 cm |
| Transmitter depth | 17.8 cm |
| Transmitter height | 2.88 cm |
| Transmitter weight | 820 g |
| Receiver width | 15.6 cm |
| Receiver depth | 17.8 cm |
| Receiver height | 2.88 cm |
| Receiver weight | 810 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 131 mm |
| Package depth The distance from the front to the back of the packaging. | 540 mm |
| Package height The distance from the top to the bottom of the packaging. | 233 mm |
| Package weight Weight of the packaged product. | 2.98 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Other features | |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.3 |
| Bandwidth | 18 Gbit/s |
| Supported video modes The video modes that can be displayed by the device. | 480p, 600p, 768p, 800p, 900p, 1024p, 1080i, 1080p, 1440p, 2160p |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 247 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case height | 153 mm |
| Master (outer) case gross weight | 3.54 kg |
| SKU | 791990 |
| MPN | CE840-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
