Overview

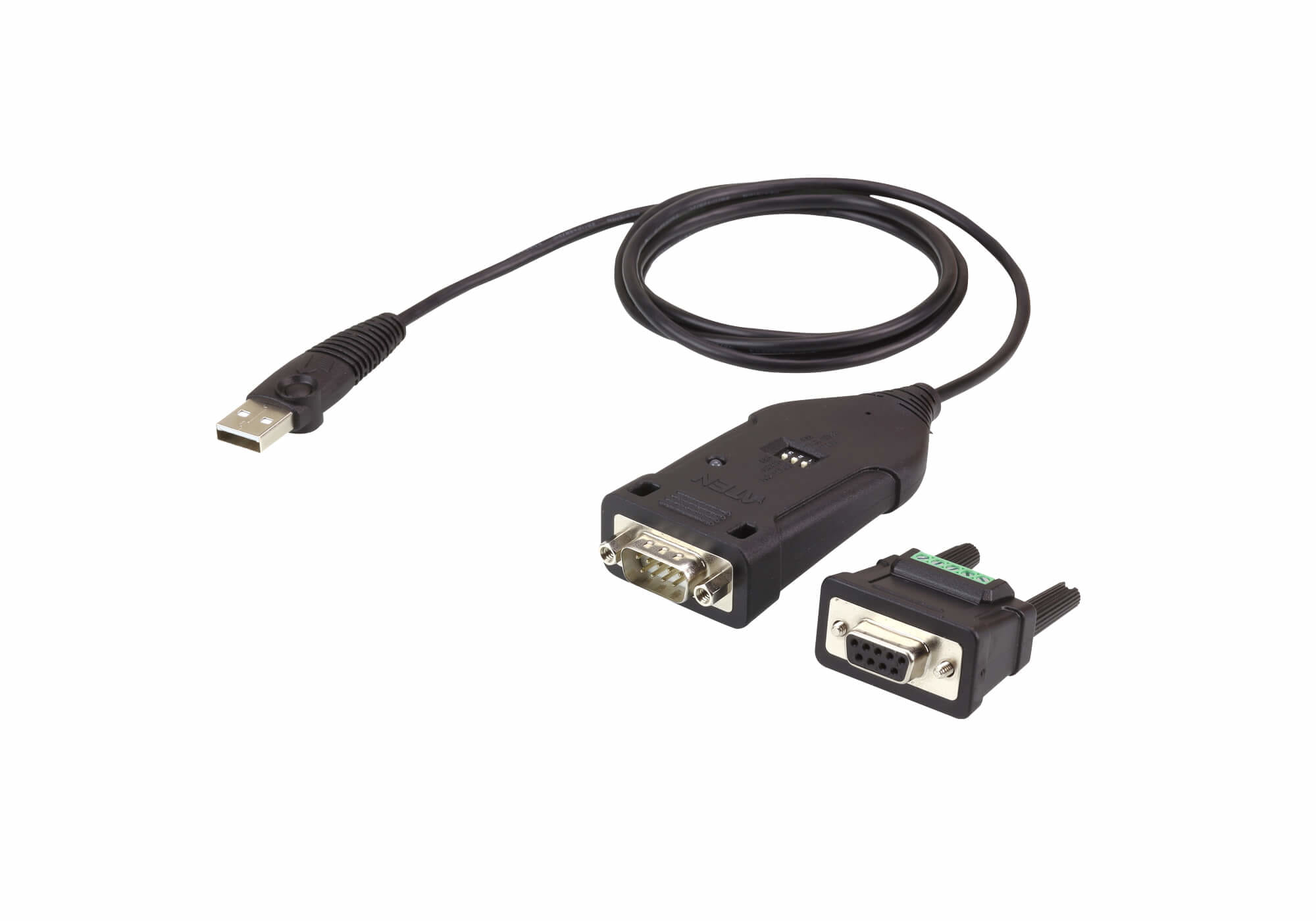

The ATEN UC485 is a high quality industrial adapter cable designed to instantly add an RS-422/485 port to your PC or laptop via a USB port.
The adapter is powered via the USB connection without needing an external power supply.
The UC485 adapter lets you use a single USB connection to create plug-and-play serial transfers without additional cables or complicated device installations.
It lets you connect any RS-485 or RS-422 device to your computer's USB port, without experiencing computer lock-ups, I/O or driver problems.
It is the ideal solution for connecting industrial devices such as laboratory machines, measuring equipment, automated systems, monitoring devices,
and many more – where mission-critical applications are required.
Features
-
Converts a USB port to a Legacy RS-422 or RS-485 COM port
-
Fast COM Port Transmission – up to 921.6 Kbps
-
Package included DB-9 female to terminal block adapter for easy wiring
-
Supports Terminal / ECHO mode by mode selector
-
Supports Windows Vista / 7 and above, Mac and Linux
-
Plug-and-Play – no power supply needed
Package Contents
-
1x UC485 USB to RS-422/485 Adapter
-
1x Terminal Adapter
-
1x User Instructions
Diagram
Specifications
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Serial | 1 x DB-9 Male (Silver) |
| Data Rate | Up to 921.6Kbps |
| Cable Length | 1.2m |
| LEDs | Power Status / RS-422 (Orange), RS-485(Green) |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0–40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.09 kg ( 0.2 lb ) |
| Dimensions (L x W x H) | 9.53 x 4.10 x 2.20 cm (3.75 x 1.61 x 0.87 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | DB-9 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable length How long the cable is. | 1.2 m |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 0.0009216 Gbit/s |
| LED indicators | Power |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Relative humidity | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 41 mm |
| Depth The distance from the front to the back of something. | 95.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 90 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual |
|
| SKU | 318479 |
| MPN | UC485-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
