Overview

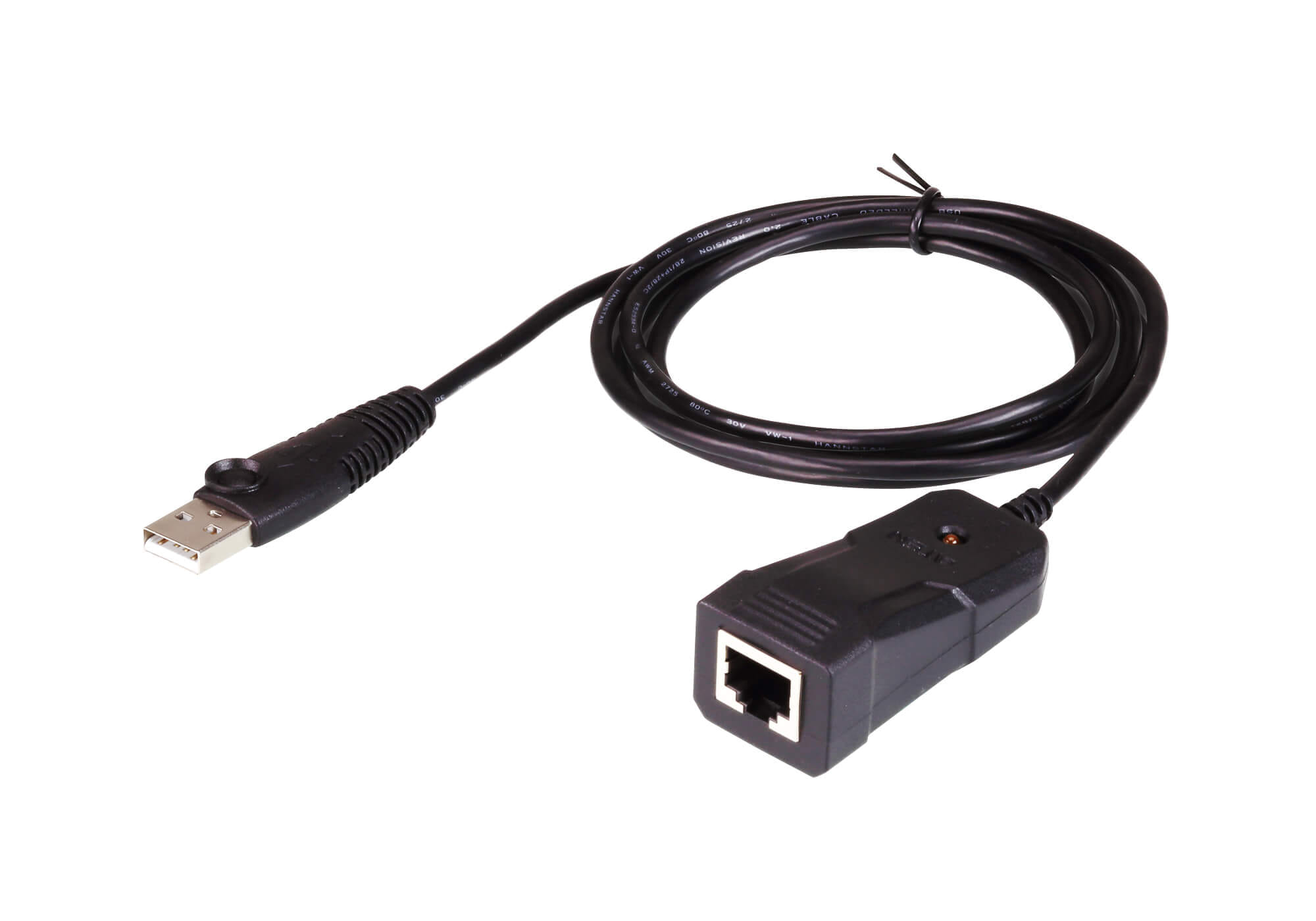

The ATEN UC232B is a one port USB-to-Serial console adapter. This high quality industrial adapter cable is designed to instantly add single RS-232 console port connectivity for networking appliances via a USB port. The adapter is powered via the USB connection.
The UC232B is compatible with the USB 2.0 standard and works conveniently with desktop and notebook PCs. It also can be used with large integrated computer-based systems or other specialized applications, such as point-of-sale applications, networking
equipment, industrial automation systems, and native serial transfer instruments to offer a convenient connectivity solution. The UC232B converter provides a plug & play solution. Windows, Mac and Linux drivers are included.
Package Contents
- 1x USB to RS-232 Console Adapter
- 1x User Instructions
Features
- Converts a USB port to RJ-45 Console port (RS-232)
- Support straight RJ45 cable, no need to use Rolled RJ45 Cable for connecting Networking Router, modem or network switch for configuration
- Fast COM Port Transmission–up to 921.6 Kbps data transfer rate
- COM retention saves the assigned port settings for the device
- OS Compatibility: Windows, Mac, Linux
- Plug-and-Play – Small and lightweight make it a perfect travel companion
- No external power supply needed
Diagram
Specifications
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Serial | 1 x RJ-45 Female (Silver) |
| Data Rate | Up to 921.6Kbps |
| Cable Length | 1.2m |
| LEDs | Power Status |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0–40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.06 kg ( 0.13 lb ) |
| Dimensions (L x W x H) | 2.56 x 5.84 x 2.23 cm (1.01 x 2.3 x 0.88 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB |
| Connector 2 This is the second connector in the device. | RJ-45 (RS-232) |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Cable length How long the cable is. | 1.2 m |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators | Power |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Relative humidity | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 60 g |
| SKU | 318472 |
| MPN | UC232B-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
