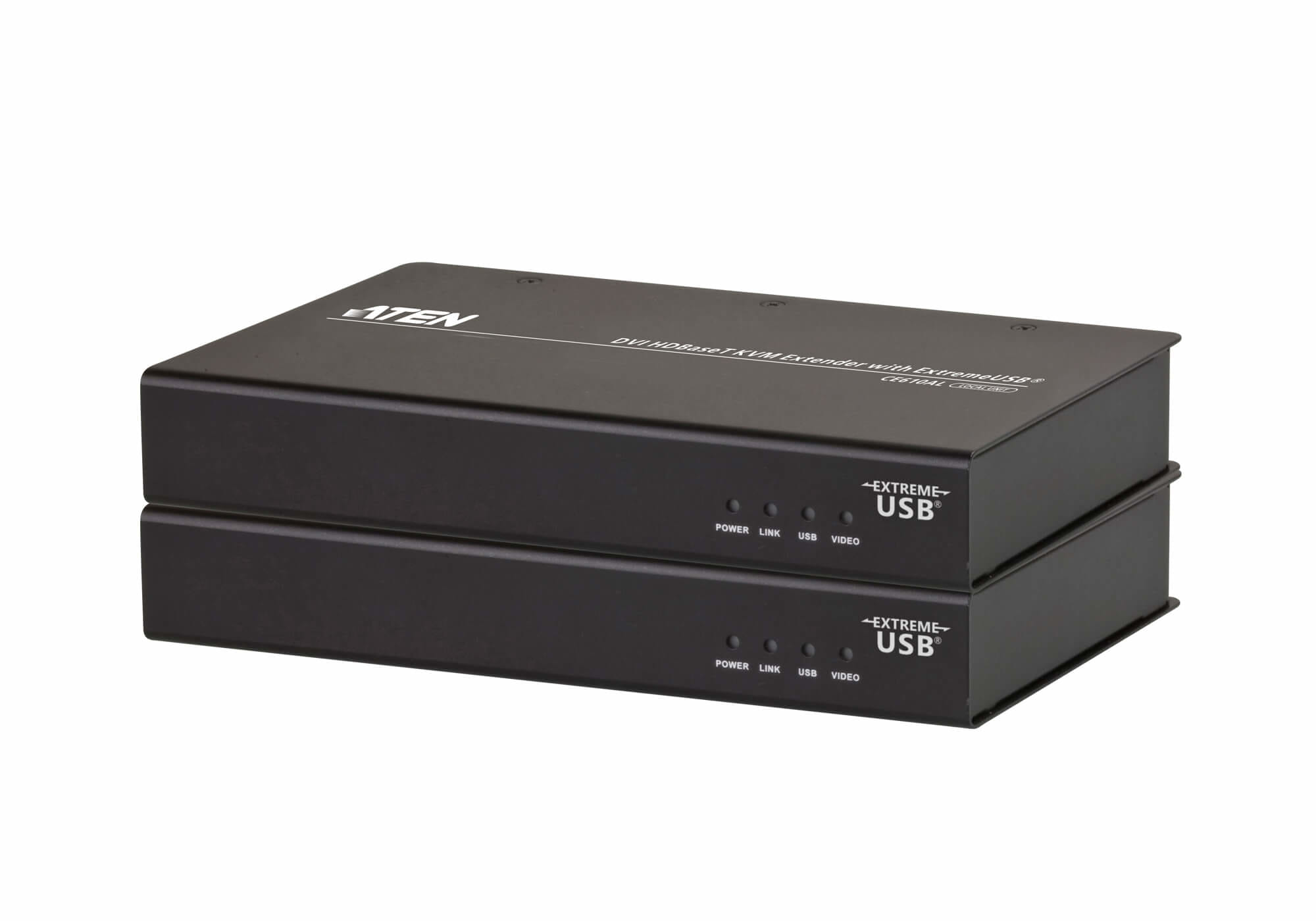

Aten USB Single Link DVI KVM Console Extender with 3x ExtreamUSB 2.0 Ports - 1920x1200 or 100m Max
The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports Extreme USB and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable. The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and file transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Cable types supported | Cat5e |
| Maximum analog resolution | 1920 x 1200 pixels |
| Firmware upgradeable |
 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| LED indicators | Link, Power, USB, Video |
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DVI-D |
| RJ-45 ports quantity (receiver) | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 11.8 cm |
| Transmitter depth | 18.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 620 g |
| Receiver width | 11.8 cm |
| Receiver depth | 18.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 620 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 98 mm |
| Package depth The distance from the front to the back of the packaging. | 325 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 2.1 kg |
| Technical details | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.05 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB |
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 10.2 kg |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 442025 |
| MPN | CE610A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
