Aten USB HDMI HDBaseT2.0 KVM Extender/Local
Item No:
699761
MPN:
CE820L-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

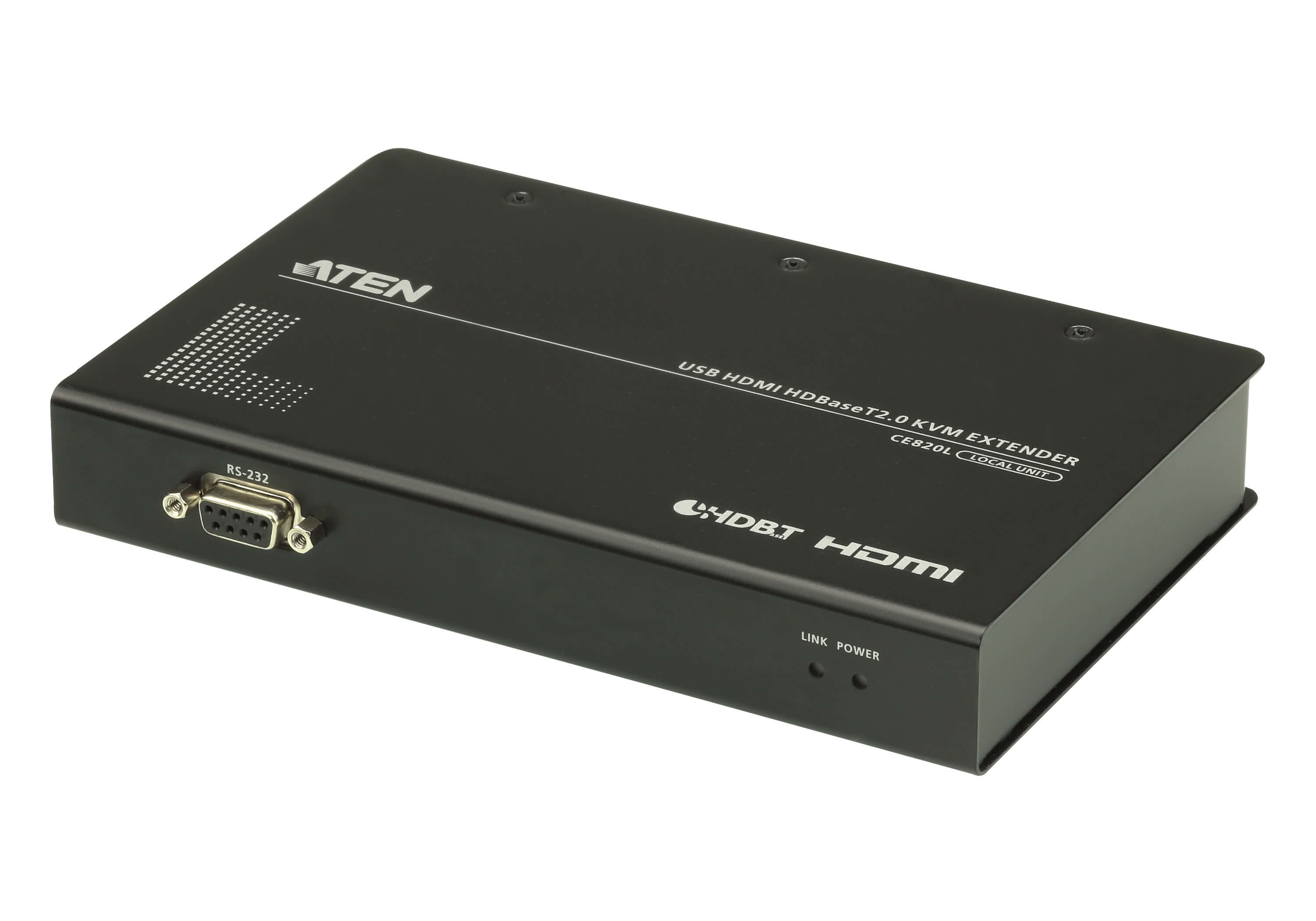

ATEN CE820L AT U, Transmitter, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black
The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet*, and RS 232 signals up to 100 meters using single Cat6 / 2L 2910 Cat 6 cable. The HDBaseT 2.0 guarantees the most reliable transmission on the market as well as enables the long reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required " such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| LED indicators |
|
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port |
|
| Transmitter local video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 2.87 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Ports & interfaces | |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| SKU | 699761 |
| MPN | CE820L-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
