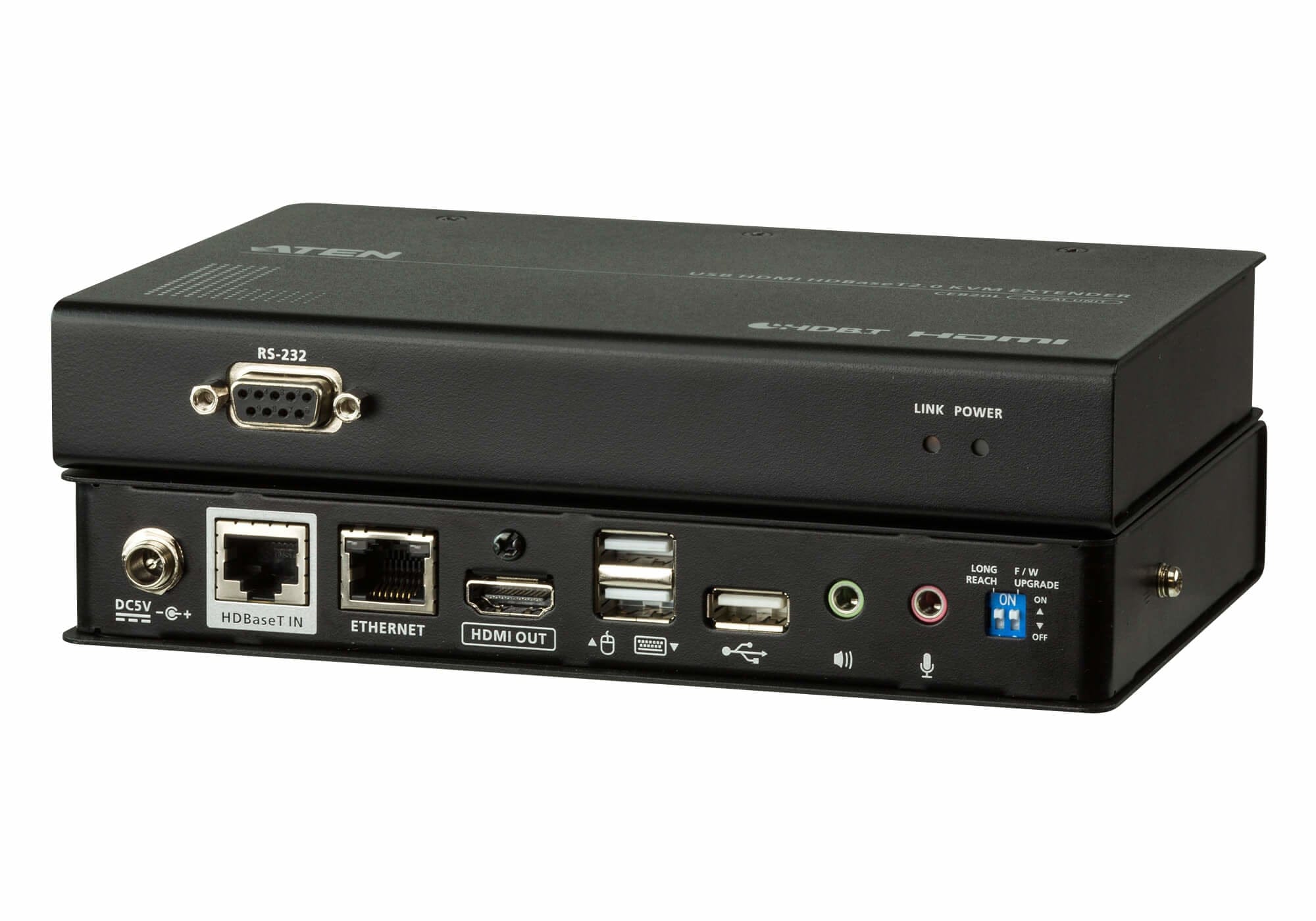

ATEN CE820-ATA-U, Transmitter & receiver, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black
The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| LED indicators | Link, Power, Video |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port |
|
| Transmitter local video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 2.87 W |
| Power consumption (receiver) (max) | 5.37 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 650 g |
| Ports & interfaces | |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| SKU | 699758 |
| MPN | CE820-ATA-U |
| Brand | ATEN |
