ATEN CE920-ATA-U, Transmitter & receiver, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black

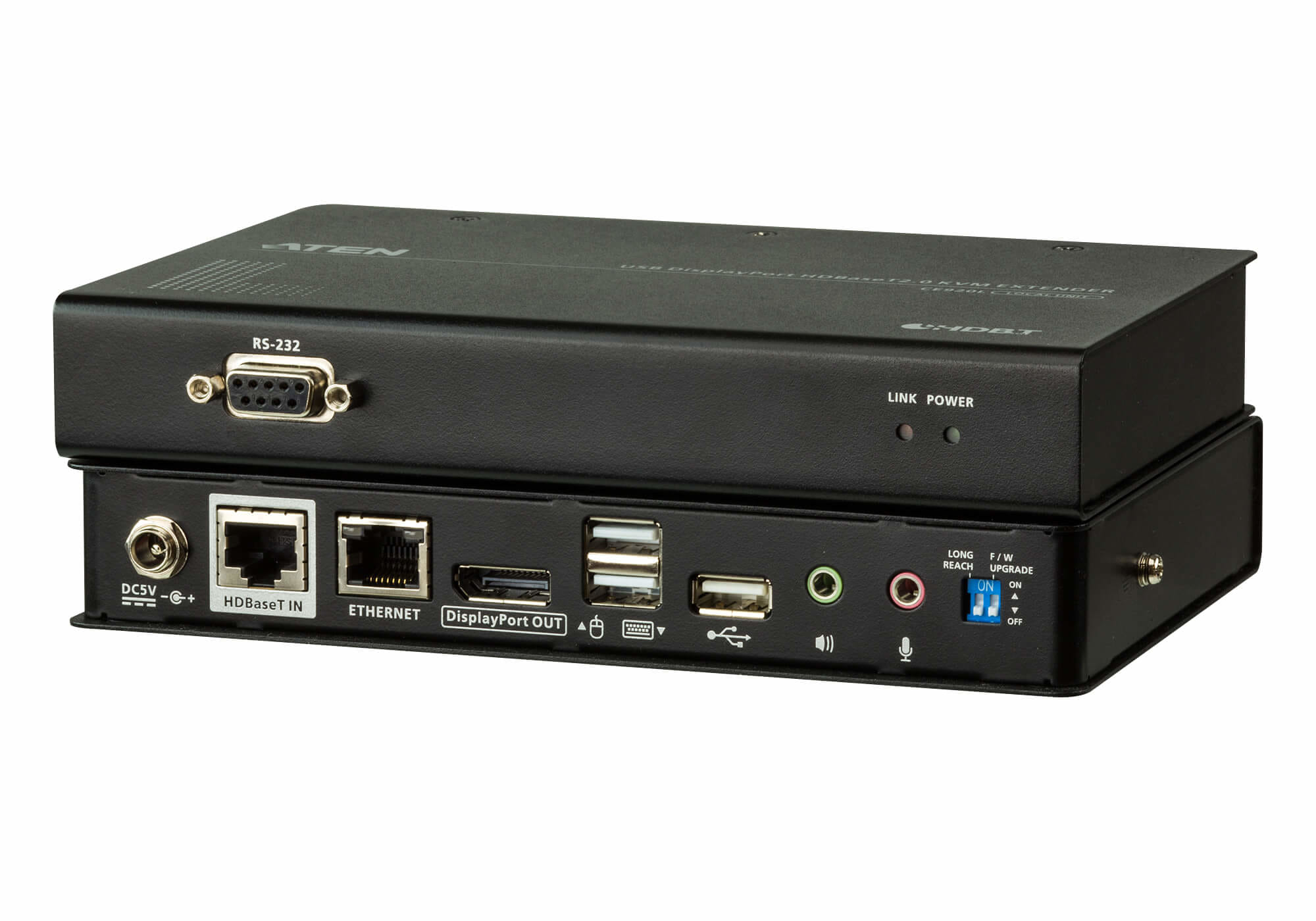

The ATEN CE920 USB DisplayPort HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-0205-21DG Microphone Cable
1x LIN5-0205-21CG Speaker Cable
1x LIN6-04U1-V1BG USB Type-A to Type-B Cable
1x LIN5-20K1-K13G DisplayPort Cable
2x Mounting Kits
2x 0AD8-1F05-30M1 Power Adapters
1x User Instructions
1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-0205-21DG Microphone Cable
1x LIN5-0205-21CG Speaker Cable
1x LIN6-04U1-V1BG USB Type-A to Type-B Cable
1x LIN5-20K1-K13G DisplayPort Cable
2x Mounting Kits
2x 0AD8-1F05-30M1 Power Adapters
1x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB data transfer rates | 480 Mbit/s |
| LED indicators |
|
| Transmitter | |
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 3.99 W |
| Power consumption (receiver) (max) | 6.74 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 98 mm |
| Package depth The distance from the front to the back of the packaging. | 325 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 2.18 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.95 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | DisplayPort |
| Manual |
|
| Mounting bracket(s) included |
|
| Ports & interfaces | |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| SKU | 699767 |
| MPN | CE920-ATA-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
