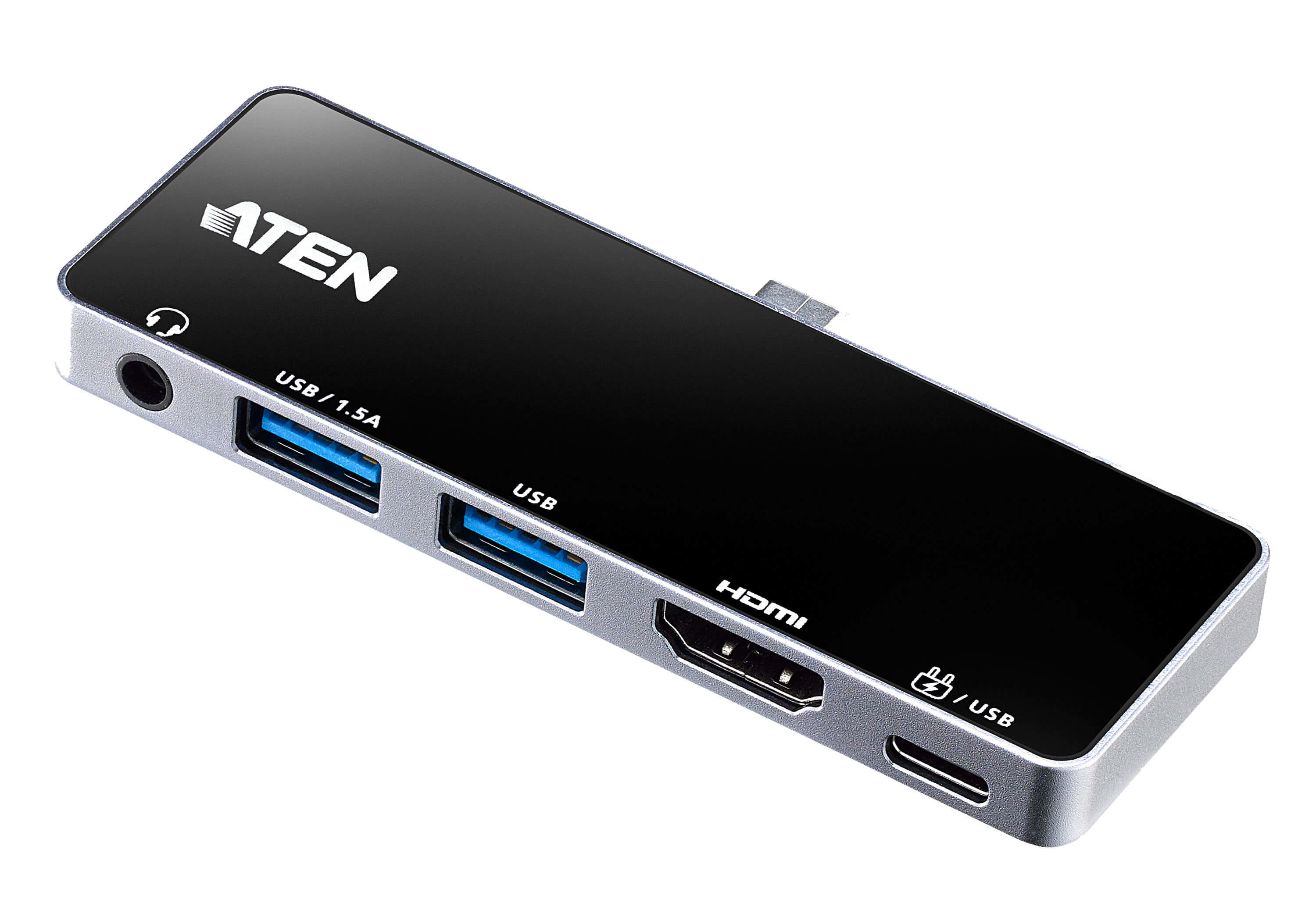

ATEN USB-C Travel Dock with Power Pass-Through, Universal, USB Type-C, Black, Silver
Designed and made to be a portable and versatile connectivity solution, the UH3238 USB-C Travel Dock with Power Pass-Through contains 5 essential ports " one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port " to provide connectivity and power supply for users that travel and require mobile office scenarios. The Thunderbolt 3 and USB 3.2 Gen 1- compatible interface guarantees superior data transmission speed up to 5 Gbps. With the support for up to 4K HDMI (3840 x 2160 @ 60Hz), the device allows users to multitask at stunningly realistic UHD resolution. The UH3238 boasts a plug-and-play design and is compatible with all major operating systems (Windows , macOS X, iPadOS, and Android). Weighing at just 44g, it is a compact, yet competent, and ideal data and power transmission solution for every mobile workstation ecosystem.
| Performance | |
| Basic device type The type or category of the device for which product is designed. | Tablet/Smartphone |
| Brand compatibility What other brands this brand can be used with. | Universal |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium |
| Maximum refresh rate | 60 Hz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Deep colour support The device can show deep colour, which means that it can produce over a billion different colours on screen. |
|
| HDCP version | 2.2 |
| USB Type-C DisplayPort Alternate Mode |
|
| 3D The device can be used with 3D technology. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android 10,Android 10.0,Android 8.0,Android 9.0,iPadOS |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Ports & interfaces | |
| Docking connector type A docking connector is a connector used to attach a mobile electronic device simultaneously to multiple external resources e.g. Apple Lightning, Micro-USB. | USB Type-C |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 3.5 mm |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI connector type | Full-size |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| USB Power Delivery |
|
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 92 W |
| Combo headphone/mic port |
|
| Power | |
| Power source type What the power source is. | USB |
| DC input voltage | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 32 mm |
| Depth The distance from the front to the back of something. | 90 mm |
| Height The measurement of the product from head to foot or from base to top. | 8.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Package weight Weight of the packaged product. | 110 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Master (outer) case net weight | 1 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 24 cm |
| Master (outer) case length | 34 cm |
| Master (outer) case height | 17 cm |
| Master (outer) case gross weight | 2.5 kg |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 546029 |
| MPN | UH3238-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
