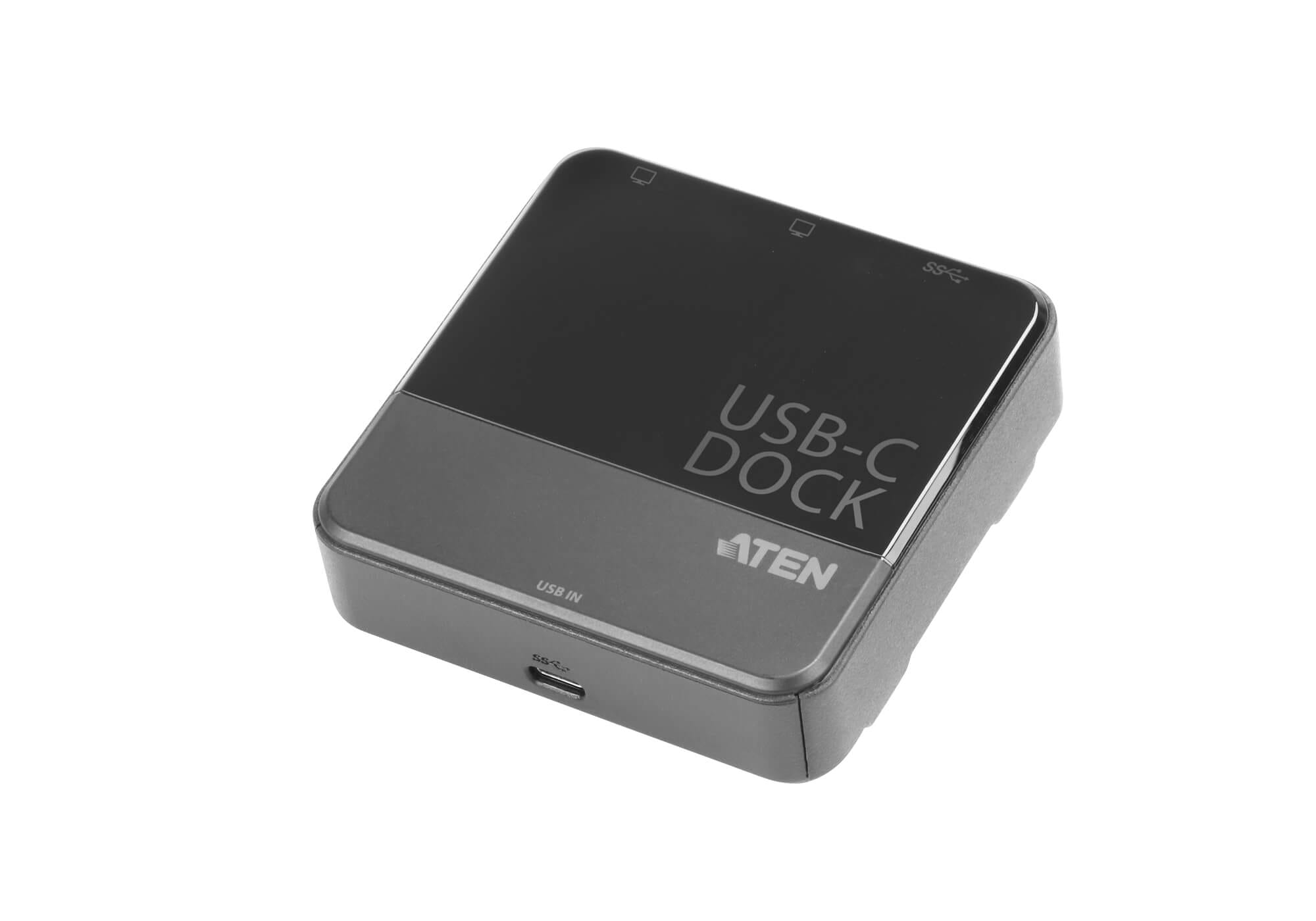

Aten USB-C Dual-View Mini Dock
Details:
The ATEN UH3233 is a USB-C Dual-HDMI Mini Dock which transforms your USB-C device to a dual monitor workstation. It’s compliant with the latest USB 3.1 Type-C specifications and supports dual display mode. The UH3233 can route video from the source device to two HDMI monitors, splitting the video transmission for a dual-view display via a single cable while maintaining a high quality resolution up to 1080p.
The UH3233 uses USB-C connections to deliver reliable highspeed data transfers. You can connect up to 128 additional peripherals, including Dual HDMI and USB 3.1 Gen1 devices. The UH3233’s slim and light design makes it ideal to maximize your workspace and travel with for business on the go.
Specifications:
- Computer Connections: 1
Connectors
- Computer: 1 x USB-C Female (Black)
- Device: 1 x USB3.1 Gen1 Type-A Female (Blue)
- Video Output: 2 x HDMI Female (Black)
LEDs
- Power: 1 (Blue/Orange)
- Video Resolution
- Single View: HDMI - 3840*2160@30*
- Dual View: HDMI - 1920*1200@60**
- * For video output to work through a USB-C port, it must support DP Alt Mode.
- **For Dual-View to work, a computers graphics card must support MST technology. Mac computers only support single-view output.
- Power Consumption: DC5V, 15W
- Package Contents: 1 x 1m USB-C Cable
Environmental
- Operating Temperature: 0–40°C
- Storage Temperature: -20–60°C
- Humidity: 0–80% RH, Non-condensing
Physical Properties
- Housing: Plastic
- Weight: 0.10 kg (0.22 lb)
- Dimensions (L x W x H): 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.)
- Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Ports & interfaces | |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | HDMI,USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 93.7 mm |
| Depth The distance from the front to the back of something. | 93 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 100 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °F |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 262682 |
| MPN | UH3233-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
