15M, support 5.0Gps, daisy-chain up to 50m, Ultra slim design & unique locker head design

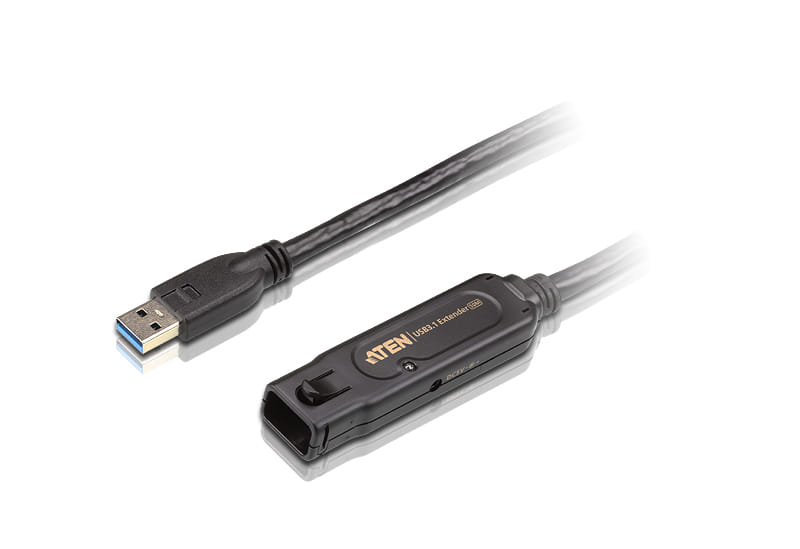

ATEN USB 3.1 Gen 1 Extender with AC Adapter
The ATEN UE3315 USB3.1 Gen1 Extender Cable allows users to extend the distance between the computer and USB devices up to 15 m. The UE3315 provides a reliable, high performance data transmission that utilizes USB 3.1 Gen1 data bandwidth up to 5Gb/s and also backward compatible with USB 2.0/1.1 standard. It's plug and play and no additional software installation required, easy to deploy and operate on the fields
The UE3315 provides a quick and high quality cost effective solution for all kinds of professional environments like: hospitals, factories, or business facilities.
Specifications:
- Connectors:
- USB Port:
- 1 x USB3.1 Gen1 Type A Male
- Downstream:
- 1 x USB3.1 Gen1 Type A Female
- USB Port:
- USB Specification:
- USB3.1 Gen1/ 2.0 / 1.1 for Super / High / Full or Low speed
- Cable Length:
- 15 m
- Data Rate:
- Up to 5 Gbps
- Power:
- Consumption:
- 5V, 4.5W
- Consumption:
- Environmental:
- Operating Temperature:
- 0–40°C
- Storage Temperature:
- -20–60°C
- Humidity:
- 0-80% RH, Non-condensing
- Operating Temperature:
| Features | |
| Cable length How long the cable is. | 15 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | USB A |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable jacket material | Plastic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Output voltage | 5 V |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.17 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 234745 |
| MPN | UE3315-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
