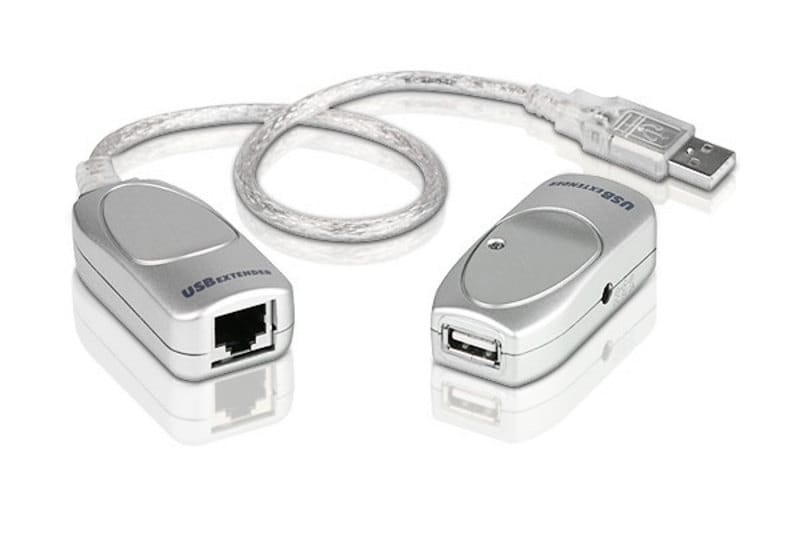

Aten USB 2.0 Cat 5 Extender, up to 60m, support 12Mbps or 1.5Mbps
Overview
UCE60 lets you locate your USB device or hub up to 60m (198 ft) from you computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Cat 5/Cat 5e/Cat 6 cable.
Package Contents
- 1x Local Unit (1 ft USB Cable attached)
- 1x Remote Unit
Features
- USB 2.0 full speed compliant.
- Provides support for any full-speed (12Mb/s) or low-speed (1.5Mb/s) USB devices.
- Extends the transmission distance of a USB device up to 60m (198 ft) using Cat 5/ Cat 5e/ Cat 6 cabling.
- Embedded USB Transceivers prevent signal loss.
- Lowest cost solution for extending USB signals.
- No additional installation software required.
- LED indicates when additional external power supply needed.
- Multiplatform support: Windows, Mac.
Specifications
USB Extender
| Function | Local Unit | Remote Unit |
| Connectors | ||
| USB Port | 1 x USB Type A Male (White) | 1 x USB Type A Female (White) |
| Link | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Power | N/A | 1 x DC Jack (Optional) |
| USB Specification | 2.0 Full / Low Speed | 2.0 Full / Low Speed |
| Environmental | ||
| Operating Temperature | 0–40˚C | 0–40˚C |
| Storage Temperature | -40–85˚C | -40–85˚C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Plastic | Plastic |
| Weight | 0.03 kg ( 0.09 lb ) | 0.02 kg ( 0.05 lb ) |
| Dimensions (L x W x H) | 6.30 x 3.10 x 2.19 cm (2.48 x 1.22 x 0.86 in.) |
6.30 x 3.10 x 2.19 cm (2.48 x 1.22 x 0.86 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| Technical details | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 60 m |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Connection to PC Capability of connection product to PC. |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| SKU | 234724 |
| MPN | UCE60-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
