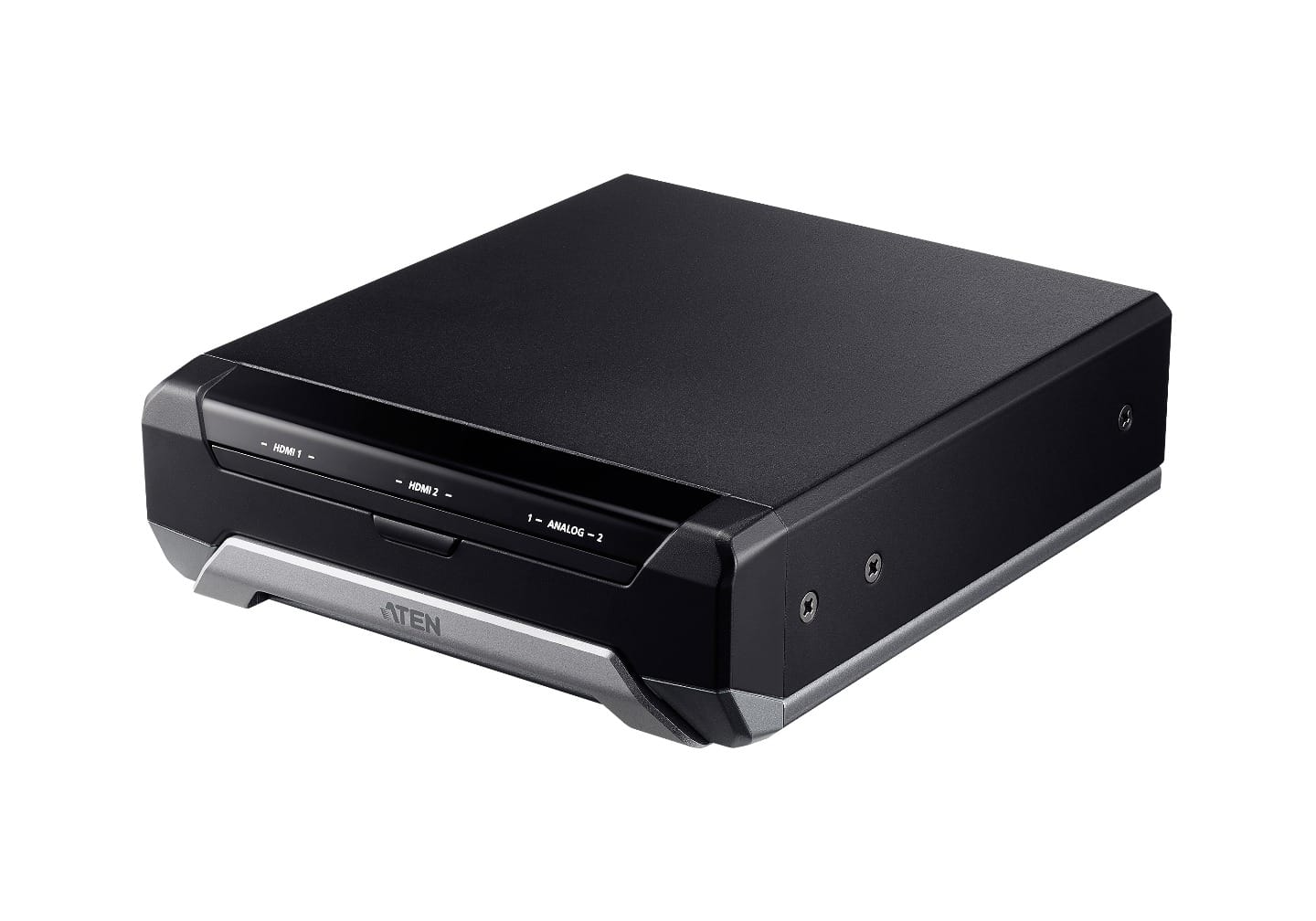

Aten UC3022 Cam Live Pro HDMI to USB-C UVC Video Capture

Performance
Product colour The colour e.g. red, blue, green, black, white.	Black, Silver
Internal The product is built in.
Host interface Interface that enables a host controller to communicate with a driver.	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	3840 x 2160 pixels
Housing material What the casing of the product is made of.	Metal

Video
Supported resolutions	2160p30/25/24, 1080p60/50/30/25/24, 720p60/50
Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).	60 fps
Supported video modes The video modes that can be displayed by the device.	720p, 1080p, 2160p

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB connector type The type of USB connector/port that this product has.	USB Type-B
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	3.2 Gen 1 (3.1 Gen 1)
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	3
HDMI in Port (socket) for HDMI input.	2
Number of HDMI outputs Port (socket) for HDMI output.	1
Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	5 V

Software
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10
Mac compatibility Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Other operating systems supported	Android, iOS

System requirements
Minimum processor The lowest speed that the computer processor can run at, or the minimum amount of processing capacity that can be used, for the computer and particular program(s) to function.	Intel i3 Dual Core 2.8Ghz
Minimum RAM The lowest RAM (memory) required to run a computer program or operating system.	4000 MB

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Sustainability
Sustainability certificates	RoHS

Weight & dimensions
Width The measurement or extent of something from side to side.	151.8 mm
Depth The distance from the front to the back of something.	130 mm
Height The measurement of the product from head to foot or from base to top.	42.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.14 kg

Other features
Master (outer) case width	283 mm
Master (outer) case height	245 mm

Packaging data
Package weight Weight of the packaged product.	1.64 kg
Package height The distance from the top to the bottom of the packaging.	220 mm
Package width The distance from one side of the packaging to the other.	95 mm
Package depth The distance from the front to the back of the packaging.	265 mm

Packaging content
AC adapter included
User guide

Logistics data
Products per master (outer) case	5 pc(s)
Master (outer) case gross weight	8.89 kg
Master (outer) case length	520 mm
Master (outer) case net weight	5.7 kg
Harmonized System (HS) code	85176990
