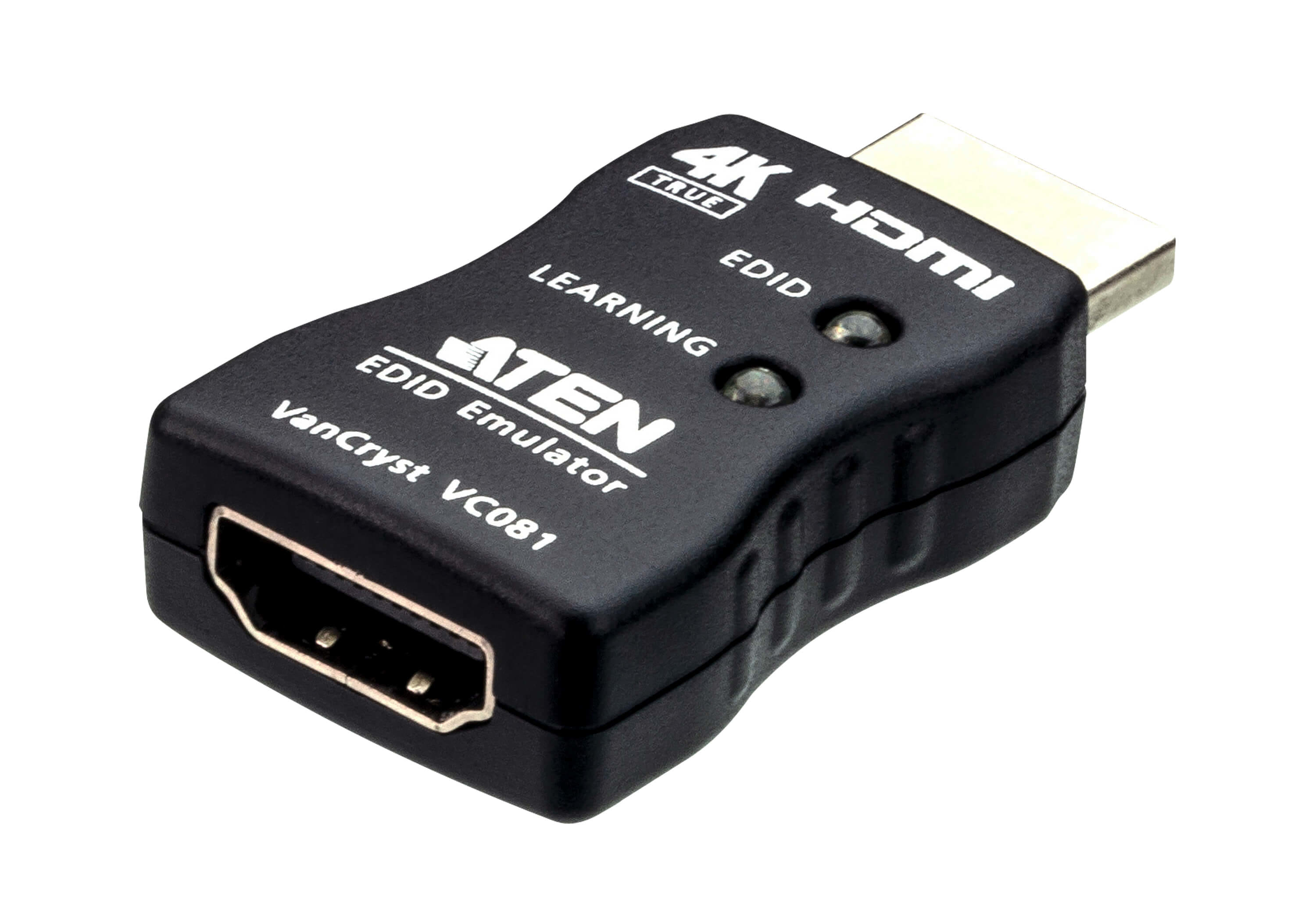

The VC081 True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters. By learning the EDID from the HDMI display and relaying it to the video source, the VC081 can effectively resolve video communication problems that occur when EDID data between the HDMI video source and display are not correctly synchronized. Moreover, after the display’s EDID is learned, the VC081 can be used in place of a monitor to keep a PC or Server awake for remote access via IP.
For product application, the VC081 is an ideal tool for wiring installation in traffic stations and commercial centers.
Package Contents
- 1x VC081 True 4K HDMI EDID Emulator
- 1x User Instructions
Features
- Manages EDID communication between connected devices
- Effectively learn the EDID from the HDMI display and relay it to the video source
- HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
- LED indicators to show device status
- Powered by HDMI source
- Compact and lightweight design
| LEDs | |
| Power | Power status (Green x 1) |
| Status | Learning (Blue x 1) |
| Video Input | |
| Interfaces | 1 x HDMI Type A Male (Black) |
| Impedance | 100 Ώ |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ώ |
| Video | |
| Compliance | HDMI 2.0 (3D, Deep Color) HDCP 2.2 Compatible Consumer Electronic Control (CEC) |
| EDID Settings | EDID Mode: Default / Learning |
| Connectors | |
| Power | Bus-powered (5 VDC from source device) |
| Power Consumption | 240MWBTU |
| Environmental | |
| Operating Temperature | 0 - 50 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic (ABS) |
| Weight | 0.01 kg ( 0.02 lb ) |
| Dimensions (L x W x H) | 4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Features | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Deep colour support The device can show deep colour, which means that it can produce over a billion different colours on screen. |
 |
| Consumer Electronics Control (CEC) support |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
|
| Certification | RoHS |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 0.25 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 24 mm |
| Depth The distance from the front to the back of something. | 44 mm |
| Height The measurement of the product from head to foot or from base to top. | 11.8 mm |
| SKU | 318780 |
| MPN | VC081-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
