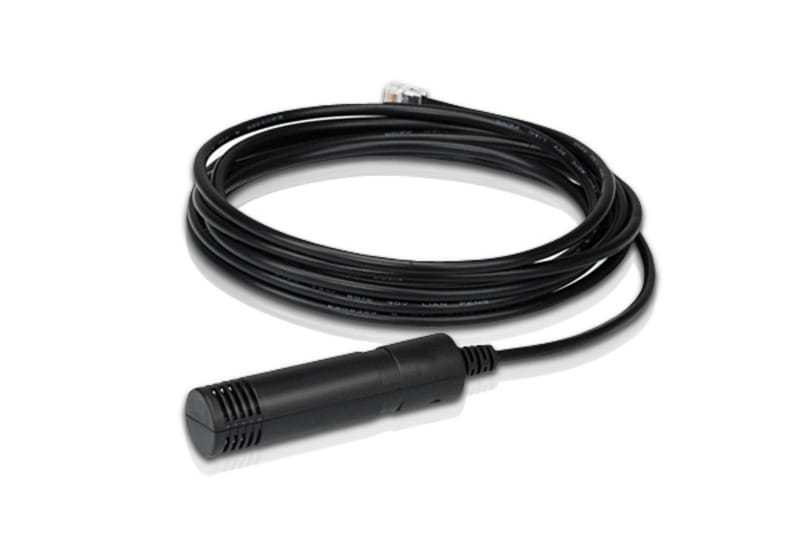

ATEN Temperature & Humidity Sensor, 80 g, 110 mm, 160 mm, 40 mm, 120 g, 0 - 55 DegC
For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of temperate and humidity. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature and humidity.
*The Sensor is an optional accessory. You can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.
1x EA1240 Temperature & Humidity sensor
1x Sensor mount
4x Tie wrap
3x Adhesive cable tie holder
*The Sensor is an optional accessory. You can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.
1x EA1240 Temperature & Humidity sensor
1x Sensor mount
4x Tie wrap
3x Adhesive cable tie holder
| Technical details | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Temperature & humidity sensor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RJ-11 |
| Temperature measuring range | 0 - 40 °C |
| Humidity measuring range | 30 - 80% |
| Accuracy | 3% |
| Cable length How long the cable is. | 3 m |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 80 g |
| Package width The distance from one side of the packaging to the other. | 110 mm |
| Package depth The distance from the front to the back of the packaging. | 160 mm |
| Package height The distance from the top to the bottom of the packaging. | 40 mm |
| Package weight Weight of the packaged product. | 120 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Logistics data | |
| Master (outer) case net weight | 1.6 kg |
| Master (outer) case width | 42 cm |
| Master (outer) case length | 23 cm |
| Master (outer) case height | 19 cm |
| Master (outer) case gross weight | 2.75 kg |
| Products per master (outer) case | 20 pc(s) |
| SKU | 541175 |
| MPN | EA1240 |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
