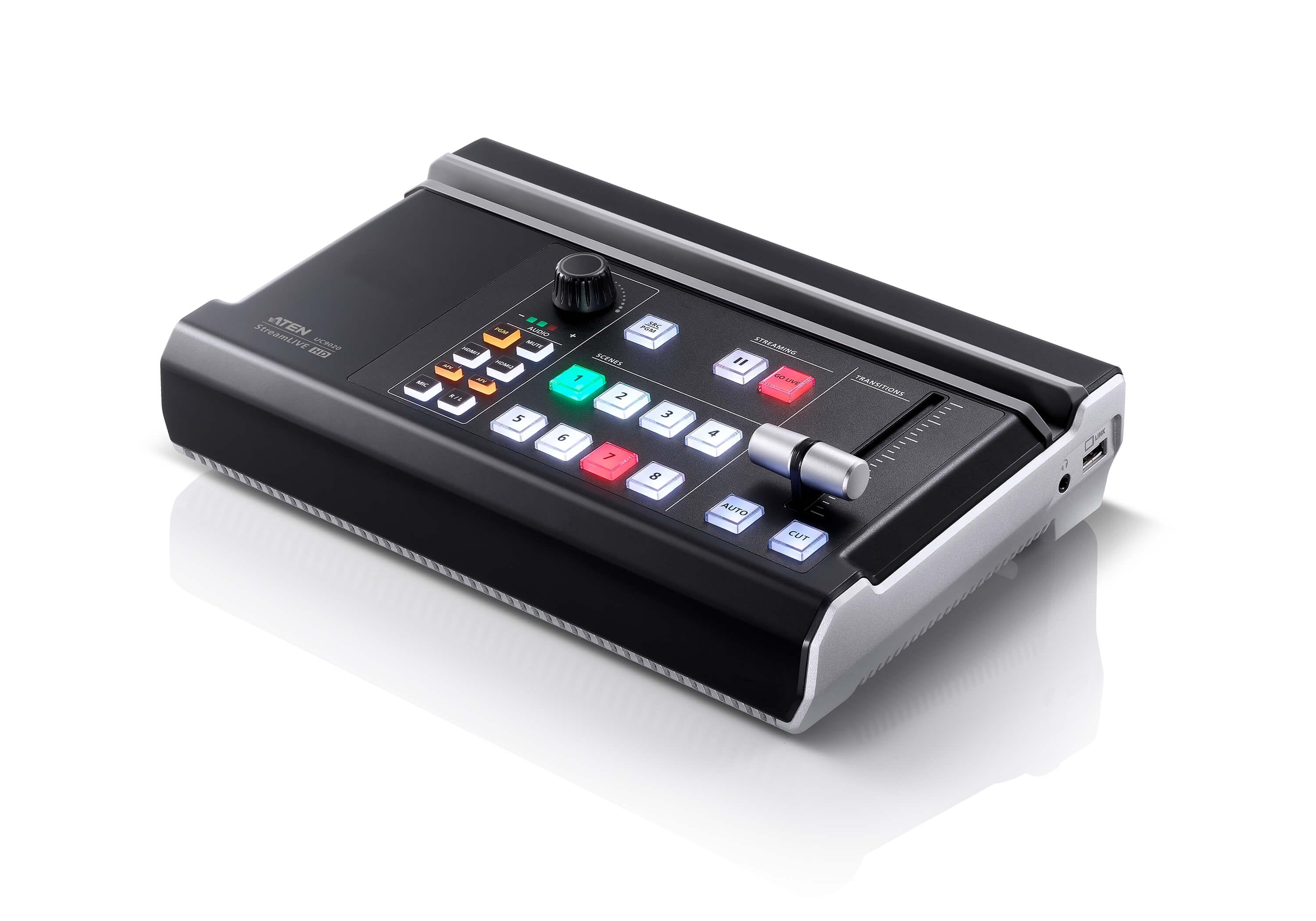

Aten StreamLIVE HD Multi-Channel AV Mixer with Streaming support, supports RTMP streaming to Youtube, Twitch, Facebook, microphone support with 2 HDMI inputs supported, tablet control support with app, program HDMI output and HDMI loop output on input 1
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Video resolutions The amount of detail that can be seen in the video image. | 640 x 480,720 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1600 x 1200,1680 x 1050,1920 x 1080,3840 x 2160,4096 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480p,720p,1080p |
| Compression ratio The ratio between the uncompressed file size and compressed size. Thus a representation that compresses a 10MB file to 2MB has a compression ratio of 10/2 = 5, often notated as an explicit ratio, 5:1 (read "five" to "one"), or as an implicit ratio, 5/1. | 4:2:2 |
| Video processing | 8 bit |
| Performance | |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Ports & interfaces | |
| HDMI in Port (socket) for HDMI input. | 3 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 2 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power consumption (max) The maximum amount of power used by the device. | 12.9 W |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 189.9 mm |
| Depth The distance from the front to the back of something. | 288.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 96.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.89 kg |
| SKU | 359653 |
| MPN | UC9020-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
