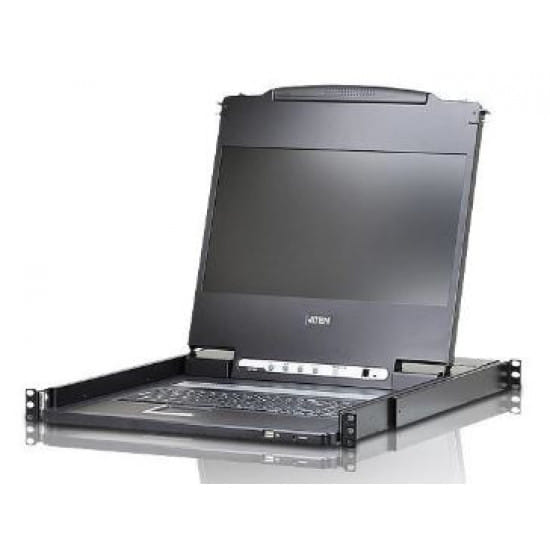

ATEN Single Rail USB DVI WideScreen Full HD 17.3" LCD Console with USB Peripheral Support
The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.
The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.
-
Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
-
Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
-
Supports an external console with USB / DVI / VGA / HDMI connectors
-
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
-
Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
-
Audio support for connecting speakers
-
Standard 105-key keyboard; Sun keyboard emulation
-
Multiplatform support – Windows, Linux, Mac, and Sun
-
Adjustable depth to fi t within the rack
-
Firmware upgradeable
-
Console lock – enables the console drawer to remain securely locked away in position when not in use
-
DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
-
Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 1 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI-D/HDMI/VGA |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Console ports | 3.5mm headphone, DVI-D, HDMI, USB A, VGA (D-Sub) |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Video bandwidth | 60 Hz |
| DDC/DDC2 supported |
 |
| DDC2B support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 43.9 cm (17.3") |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 19.4 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 589.2 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11.6 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 668 mm |
| Package depth The distance from the front to the back of the packaging. | 718 mm |
| Package height The distance from the top to the bottom of the packaging. | 135 mm |
| Package weight Weight of the packaged product. | 14.7 kg |
| Packaging content | |
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 11.6 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 718 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 14.7 kg |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Compatibility The other products, software and hardware this product can be used with. | KE6920R, KE6920T, KE6922R, KE6922T, CE611, CE620, KE6900AR, KE6900AT, KE6940AR, KE6940AT, KE6910, KE6910R, KE6910T, KE6912, KE6912R, KE6912T, KE6900ST, KE6900, KE6900R, KE6900T, KE6940, KE6940R, KE6940T, 2L-5001U, 2L-5002U, 2L-5003U, 2L-7D02DH, 2L-7D02U, 2L-7D02UH, 2L-7D03U, 2L-7D05U, 2L-5001U, 2L-5002U, 2L-5003U, 2L-7D02DH, 2L-7D02U, 2L-7D02UH, 2L-7D03U, 2L-7D05U, CN9600, CS1308, CS1316, CS1768 |
| SKU | 234927 |
| MPN | CL6700MW-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Features | RGB |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
