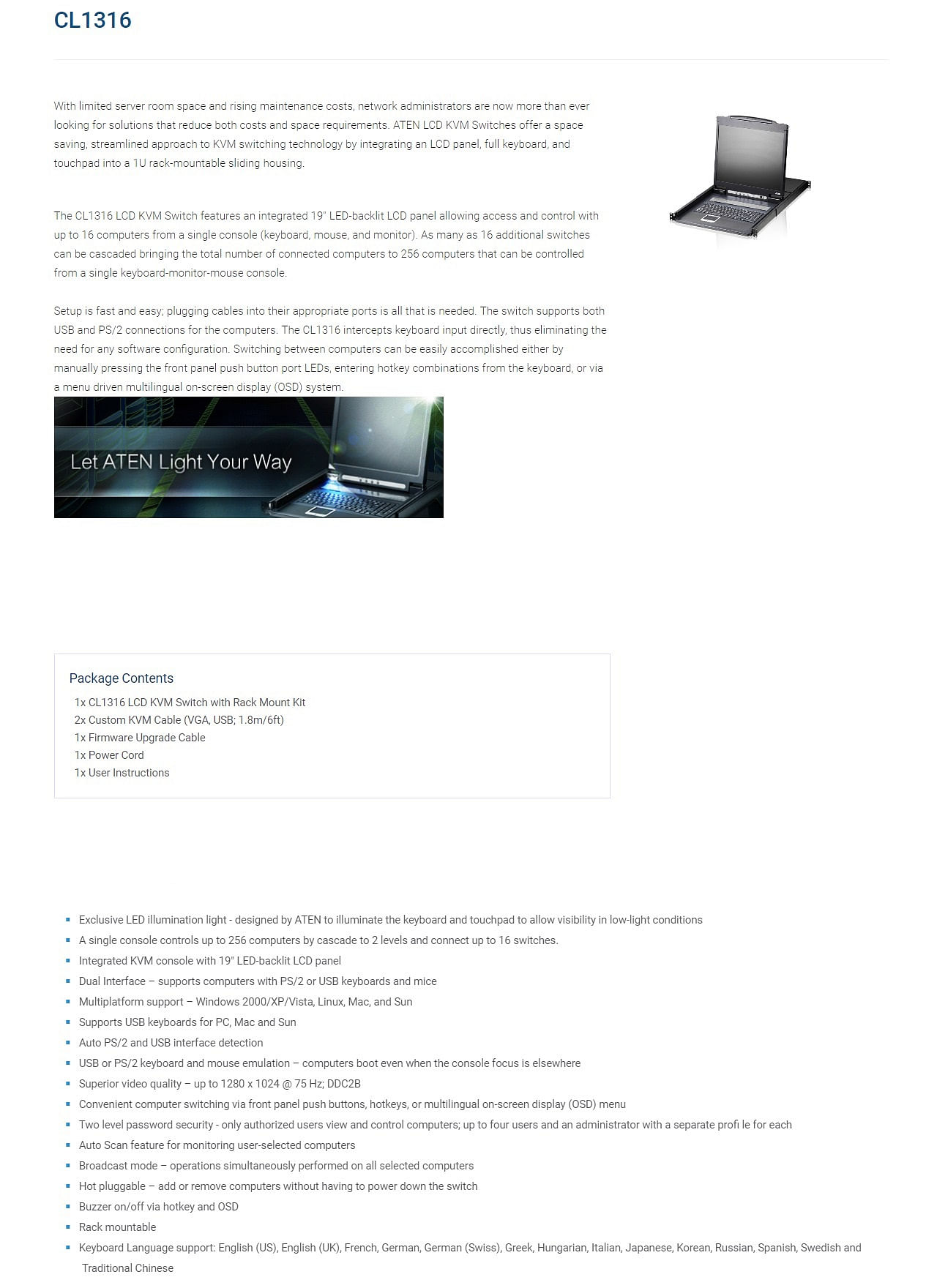

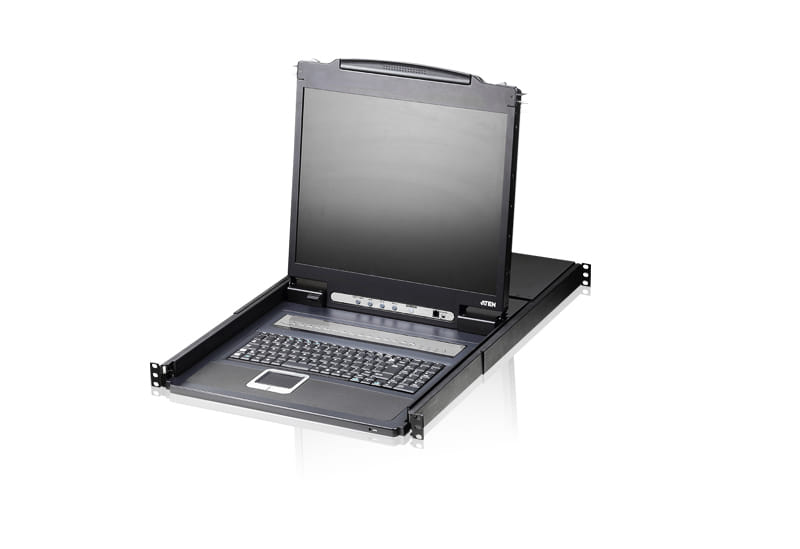

With limited server room space and rising maintenance costs network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving streamlined approach to KVM switching technology by integrating an LCD panel full keyboard and touchpad into a 1U rack-mountable sliding housing.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 48.3 cm (19") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 1024 pixels |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 160° |
| On Screen Display (OSD) |
 |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.294 x 0.294 mm |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 5 ms |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal, Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Connector type The type of connector e.g. USB. | SPHD |
| Daisy chain |
|
| Number of computers controlled The amount of computers controlled by this device. | 16 |
| Rack capacity The spase that device fill in rack. | 1U |
| Keyboard | |
| Built-in touchpad |
|
| Hot keys |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 26.1 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 689 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Depth The distance from the front to the back of something. | 483 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.3 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 16.3 kg |
| Package width The distance from one side of the packaging to the other. | 668 mm |
| Package depth The distance from the front to the back of the packaging. | 833 mm |
| Package height The distance from the top to the bottom of the packaging. | 135 mm |
| Packaging content | |
| Cables included | AC, KVM |
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 13.3 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 833 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 1 pc(s) |
| SKU | 234353 |
| MPN | CL1316N-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
