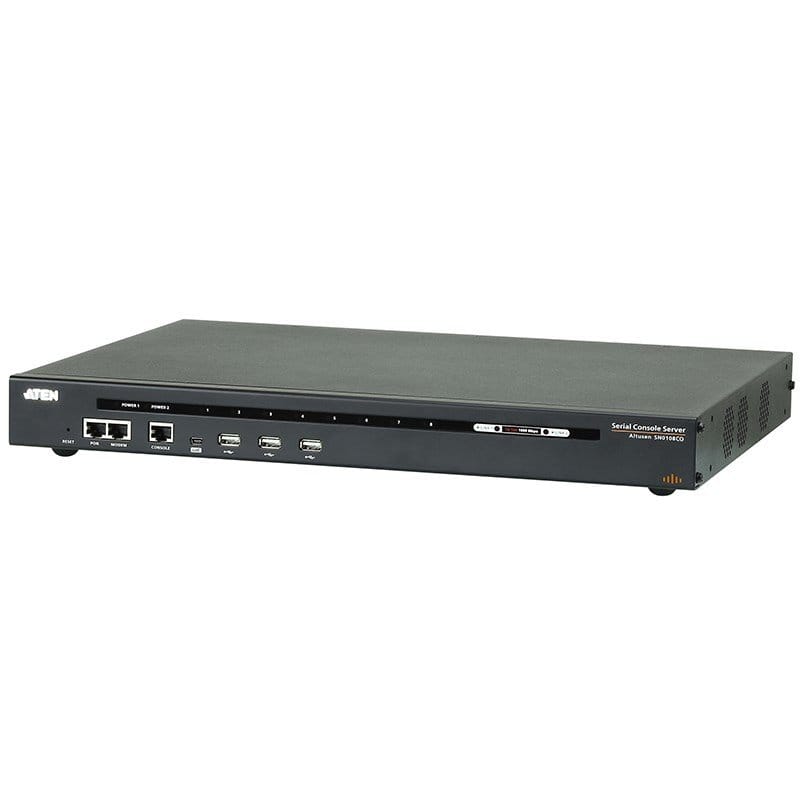

Connection: 8 - Connectors: Serial: 8x RJ-45 Female, LAN: 2x RJ-45 Female, Power: 2x IEC 60320/C14, PON: 1x RJ-45 Female(Reserved), Modem: 1x RJ-45, Local Console: 1x RJ-45 Female, Laptop USB Console (LUC) Port: 1x Mini-USB, USB Port: 3x USB Type-A
| Ports & interfaces | |
| Console port | RJ-45/Mini-USB |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 8 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Linux Kernel 2.6.12 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 2000 |
| Server operating systems supported | Windows Server 2003 |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 437.2 x 329.8 x 440 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.45 kg |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 48 W |
| Input current | 1 A |
| DC input voltage | 36 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| SKU | 505985 |
| MPN | SN0108CO-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
