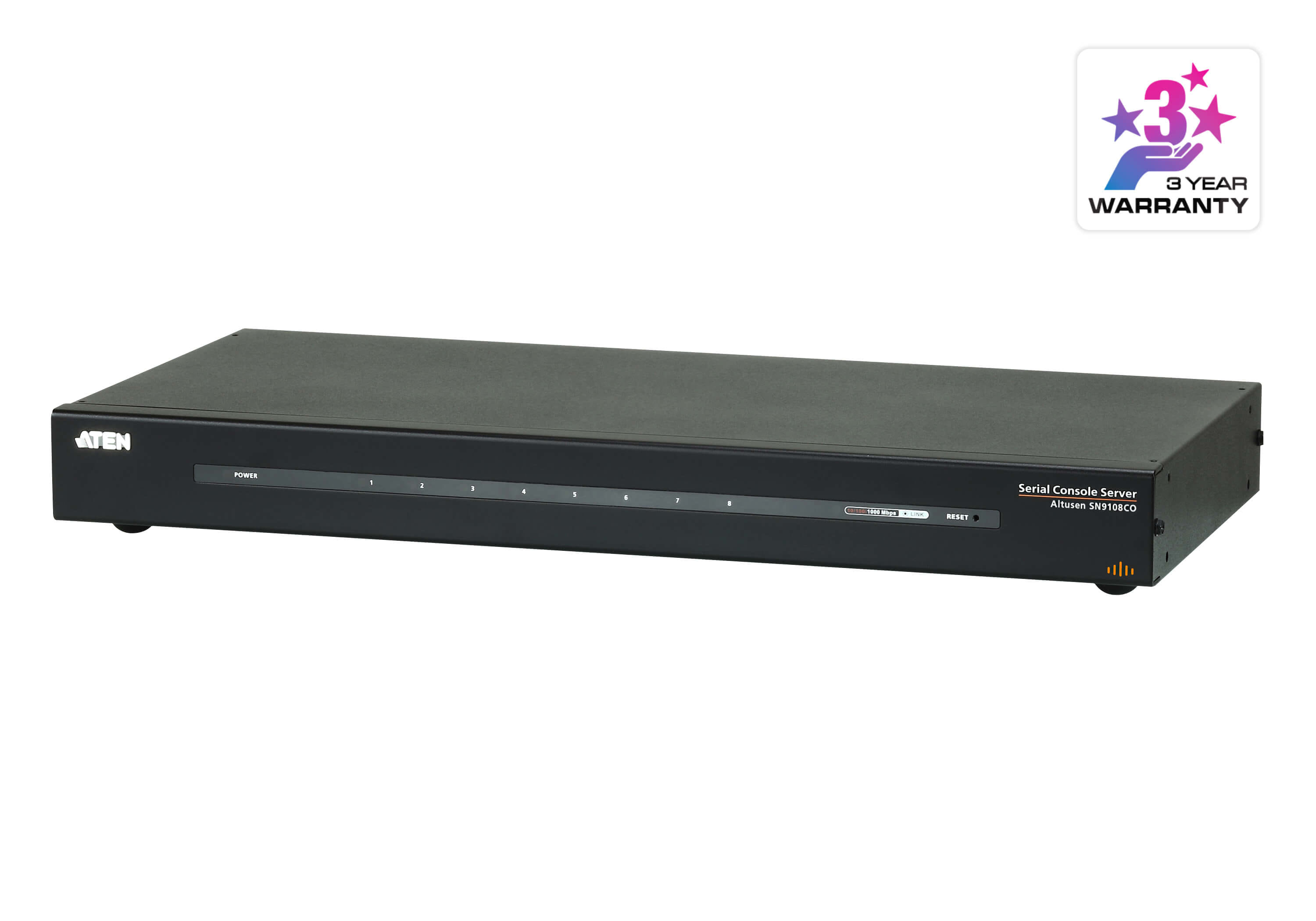

Secure in-band and out-of-band remote serial console access, Versatile serial operating modes Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP, Server/Client, and Virtual Modem, Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient, IT infrastructure deployment, Online/Offline detection of connected serial devices (including terminal blocks) automatically send event notifications when the devices are offline for device status monitoring
Features
- System Accessibility and Availability
- Secure in-band and out-of-band remote serial console access
- Browser access with an intuitive GUI
- Terminal-based access with a menu-driven UI
- Modem dial-in/dial-back/dial-out access
- Serial Console Management
- Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
- Online/Offline detection of connected serial devices (including terminal blocks) automatically send event notifications when the devices are offline for device status monitoring
- Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
- Easy port access via selectable ActiveX or Java serial viewer
- Comprehensive viewer functions copy/paste, logging, data import, macros, broadcasting and message board
- Sun Solaris ready Sun break-safe
- Alert Strings whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
- Command filter administrators can restrict users to execute only pre-defined commands
- Multiple users can simultaneously access the same port up to 16 connections per port
- Modes for simultaneous access Exclusive/Occupy/Share
- Security
- Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
- Configurable user permissions for port access and control
- Local and remote authentication and login
- Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
- IP and MAC address filter for enhanced security protection
- High-Grade Security supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
- Supports security level configuration High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control
- System Management
- System configuration via web browser, Telnet/SSH client and local console
- System log and event login
- Event Destination Event logs will be saved to Log server, Syslog server, and USB drive*
- SNMP agent
- Event notification supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
- Backup / Restore system configuration and upgradeable firmware
- Multi-browser support Internet Explorer, Chrome, Firefox
- NTP for time server synchronization
- IPv4 / IPv6 support
- Integrates into CC2000 software for centralized data center management
- Integrates into CCVSR software for user session recording
- Serial Device Management
- Versatile serial operating modes Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
- Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
- Real TTY driver for Linux
- Fixed TTY driver for UNIX*
- Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps
- Language
- Multi-language web-based GUI available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese
Note:
* Fixed TTY Driver Supports 1) OpenServer (Sco Unix); 2) UnixWare 7, SVR 5; 3) UnixWare 2.1, SVR 4.2; 4) QNX 4.25,QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i
Diagram
Specifications
|
Connection |
8 |
|
Connectors |
|
|
Serial |
8 x RJ-45 Female |
|
LAN Ports |
1 x RJ-45 Female |
|
Power |
1 x IEC60320/C14 |
|
Switches |
|
|
Reset |
1 x Recessed Pushbutton |
|
Power |
1 x Rocker Switch |
|
LEDs |
|
|
Serial |
8 (Green) |
|
10/100/1000 Mbps |
1 (Red / Orange / Green) |
|
Power |
1 (Blue) |
|
Maximum Input Power Rating |
100-240V~, 1A, 50/60Hz |
|
Power Consumption |
AC110V:9.7W:45BTU |
|
AC220V:9.6W:45BTU |
|
|
Environmental |
|
|
Operating Temperature |
0 - 40C |
|
Storage Temperature |
-20 ~ 60C |
|
Humidity |
0 - 80% RH, Non-condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
3.12 kg ( 6.87 lb ) |
|
Dimensions (L x W x H) |
43.72 x 21.76 x 4.40 cm |
|
(17.21 x 8.57 x 1.73 in.) |
|
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Console port | RJ-45 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 8 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| AC outlet types The type of outlet for AC electricity. | C14 coupler |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 437.2 x 217.6 x 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.12 kg |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| SKU | 505988 |
| MPN | SN9108CO-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
