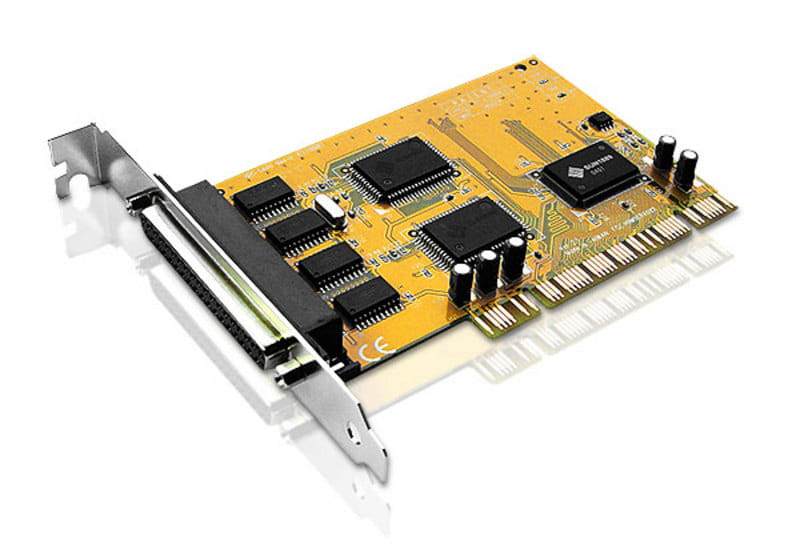

Aten RS-232 4-Port PCI Card
Item No:
700031
MPN:
IC104S-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN IC-104S, PCI, RS-232, RS-232, Multicolour, 921.6 Kbit/s, 32 B
RS232 converters and extenders are heavily represented in many enterprise fields. The telecommunication industry. Auto-teller machines. Airport check-in and flight schedule display systems. Automatic postal machines. Power and energy distribution monitoring and control systems. Highway tunnel monitoring and traffic lights. Building automation from remote image transmission to elevator control.
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI |
| Output interface The socket (port) where the output connectors are connected. | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 4 |
| Serial interface type | RS-232 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Multicolour |
| Features | |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 32 B |
| Data bits | 4, 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow control support |
|
| Parity bit | Even, Mark, Odd, Space |
| Flow Control type | No, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 57 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 2000, Windows 3.x, Windows ME, Windows NT, Windows XP |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Other operating systems supported | DOS |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 700031 |
| MPN | IC104S-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
