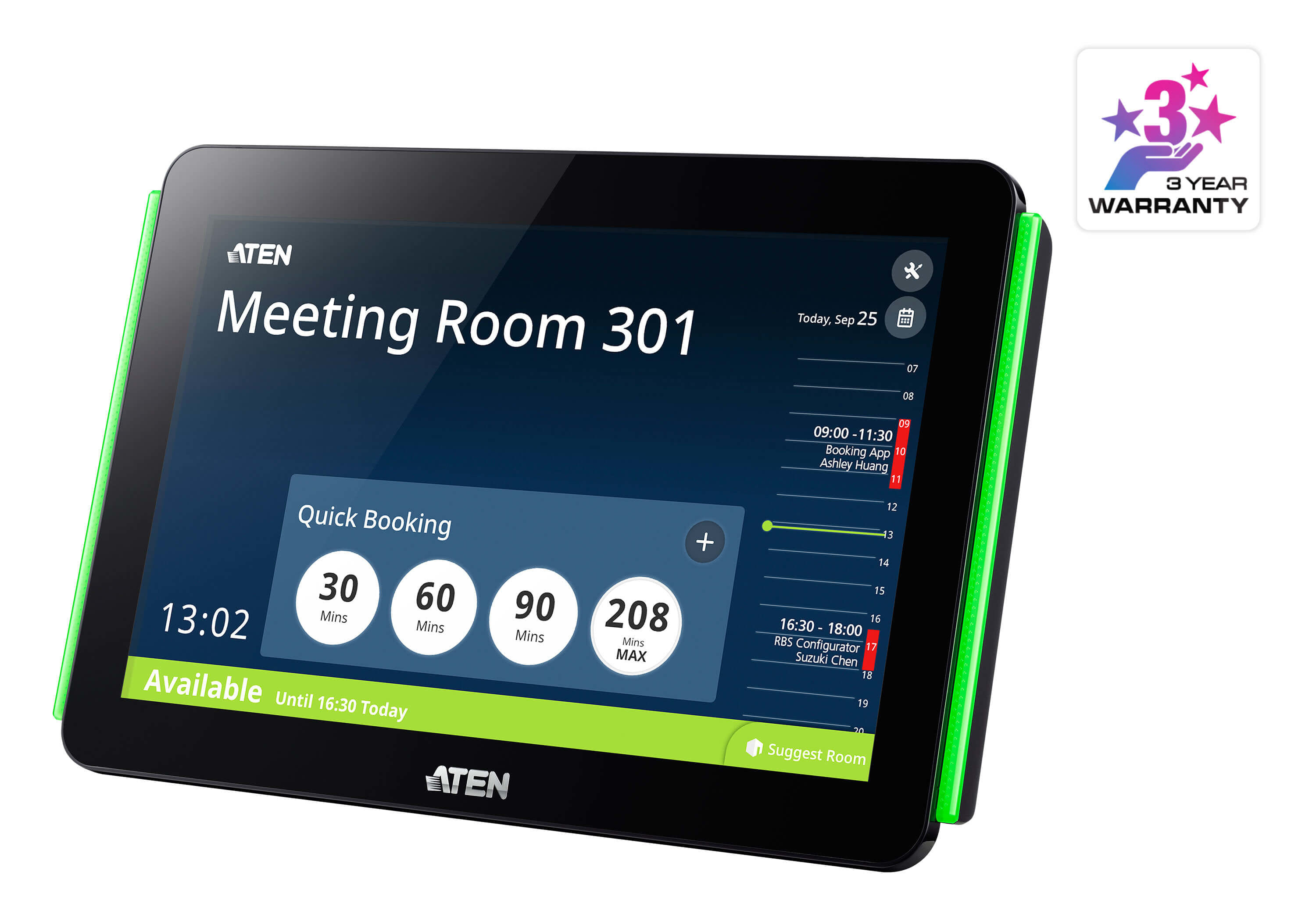

ATEN Room Booking System - 10.1" RBS Panel, 25.6 cm (10.1"), 1280 x 800 pixels, LCD, Capacitive, LED, 16:10
ATEN VK430 RBS Panel is a 10.1" touch-screen panel used to manage conference rooms, and is centrally configured by ATEN RBS Configurator
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 25.6 cm (10.1") |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Touchscreen technology | Capacitive |
| Backlight type | LED |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:10 |
| Colour depth | 8 bit |
| Contrast ratio | 800:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Performance | |
| Purpose What the product is used for. | Meeting room |
| Mounting type Type of mounting e.g. wall mounting. | Wall/Tabletop |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 55 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.8 mm |
| Depth The distance from the front to the back of something. | 263 mm |
| Height The measurement of the product from head to foot or from base to top. | 37.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| Package weight Weight of the packaged product. | 1.24 kg |
| Package depth The distance from the front to the back of the packaging. | 234 mm |
| Package width The distance from one side of the packaging to the other. | 360 mm |
| Package height The distance from the top to the bottom of the packaging. | 52 mm |
| Packaging content | |
| Quantity The number of products there are. | 1 |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Packaging content | 1 x VK430 10.1” RBS Panel with wall mount 2 x LED bars 4 x LED bar screws 4 x hard wall mount screw + screw anchor 2 x 3M glass mount tape 1 x user instructions |
| Technical details | |
| Package volume | 4530.7 cm³ |
| Master (outer) case volume | 28033.68 cm³ |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Master (outer) case gross weight | 6.7 kg |
| Master (outer) case length | 370 mm |
| Master (outer) case width | 288 mm |
| Master (outer) case height | 263 mm |
| SKU | 646555 |
| MPN | VK430-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
