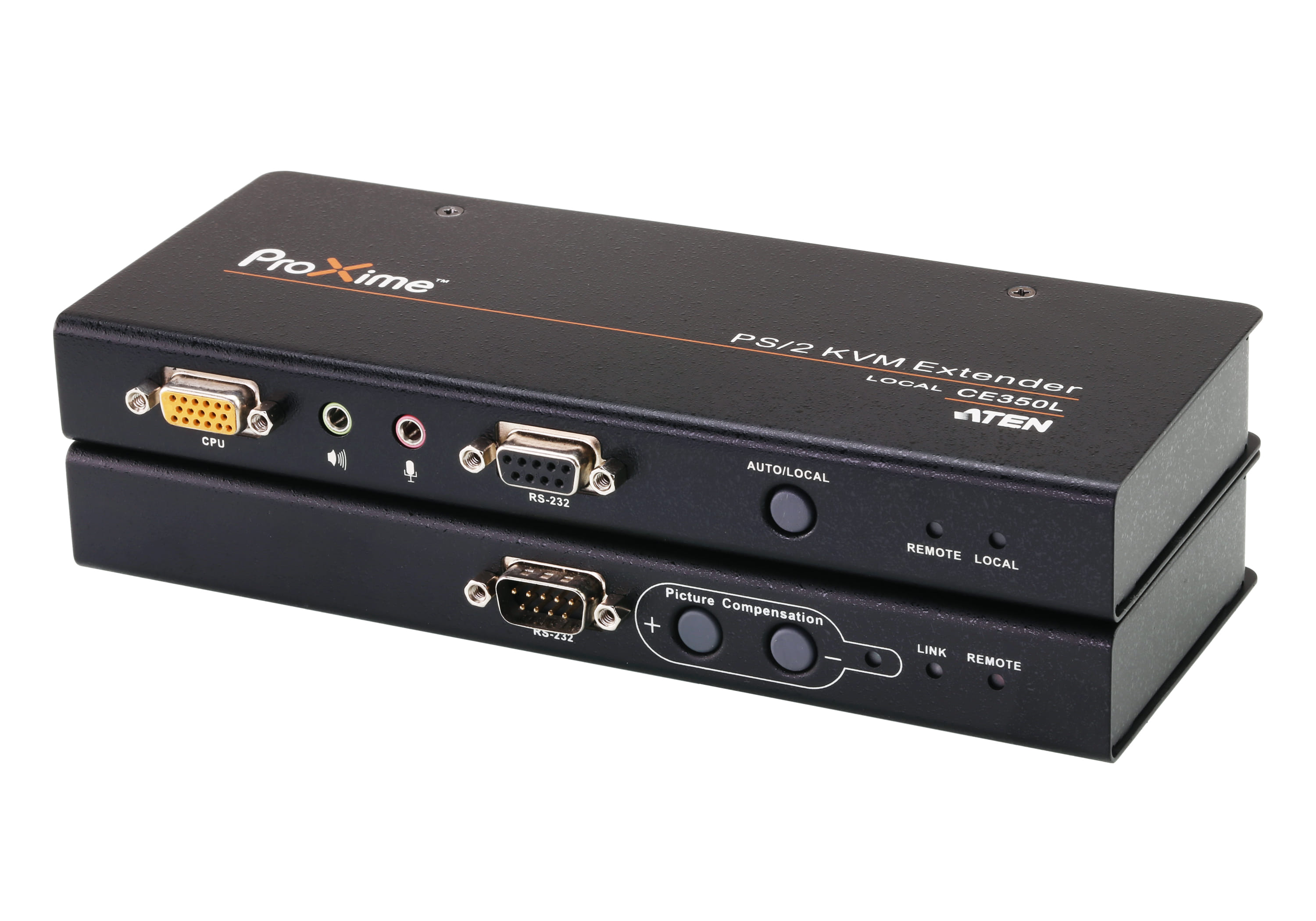

Aten PS/2 VGA/Audio Cat 5 KVM Extender
Item No:
699749
MPN:
CE350-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN CE350 AT U, Transmitter & receiver, Wired, 150 m, Cat5, Cat5e, 1920 x 1200 pixels, 1920 x 1200, 1600 x 1200, 1280 x 1024
The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS 232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE350 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Cable types supported | Cat5, Cat5e |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920 x 1200, 1600 x 1200, 1280 x 1024 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators |
 |
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | PS/2 |
| Receiver | |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | PS/2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.64 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 500 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.64 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 500 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 2 |
| RJ-45 ports quantity | 2 |
| SKU | 699749 |
| MPN | CE350-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
