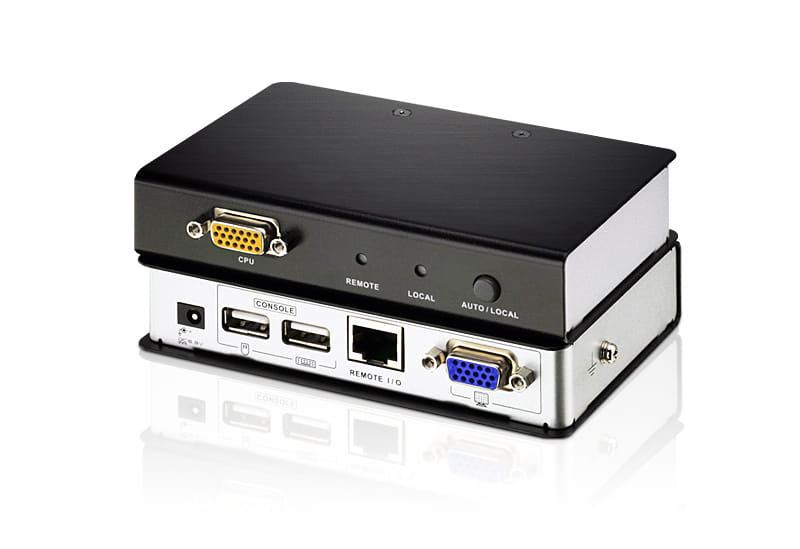

Aten VGA USB-PS/2 KVM Adapter Module with Local Console for KN, KM series
For smooth operation and added convenience, ATEN's KA7171 USB-PS/2 KVM Adapter Module is designed to provide a full console connection locally in a KVM over IP Switch or Matrix KVM* installation. The KA7171 allows a PS/2 or USB server to be connected to the switch via Cat 5e/6 cable and provides an extra console via USB keyboard, USB mouse, and monitor to use for extended local operations. In addition, the Privileged Console Control function prevents remote users from operating the device when a local administrator requires full control of the server - reducing conflicts and unwanted operations.
Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
Built-in ASIC for greater reliability and compatibility
Supports computers with PS/2 or USB keyboards and mice
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
KVM Ports 1 x SPHD-18 Female (Yellow)
Power 1 x DC Jack (Black)
Pushbuttons
Operating Mode Selection 1 x Pushbutton
LEDs
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse PS/2, USB
Video Up to 1920 x 1200 @ 60Hz; DDC2B
Power Consumption DC5.3V:1.88W:13BTU
Environmental
Operating Temperature 0 - 50 DegC
Storage Temperature -20 - 60 DegC
Humidity 0 "80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.33 kg ( 0.73 lb )
Dimensions (L x W x H) 12.70 x 8.65 x 2.50 cm
(5 x 3.41 x 0.98 in.)
Package Contents
1 x KA7171 USB-PS/2 KVM Adapter Cable with Local Console
1 x Power Adapter
1 x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
1 x Foot Pad Set (4pcs)
1 x User Instructions
Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
Built-in ASIC for greater reliability and compatibility
Supports computers with PS/2 or USB keyboards and mice
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
KVM Ports 1 x SPHD-18 Female (Yellow)
Power 1 x DC Jack (Black)
Pushbuttons
Operating Mode Selection 1 x Pushbutton
LEDs
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse PS/2, USB
Video Up to 1920 x 1200 @ 60Hz; DDC2B
Power Consumption DC5.3V:1.88W:13BTU
Environmental
Operating Temperature 0 - 50 DegC
Storage Temperature -20 - 60 DegC
Humidity 0 "80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.33 kg ( 0.73 lb )
Dimensions (L x W x H) 12.70 x 8.65 x 2.50 cm
(5 x 3.41 x 0.98 in.)
Package Contents
1 x KA7171 USB-PS/2 KVM Adapter Cable with Local Console
1 x Power Adapter
1 x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
1 x Foot Pad Set (4pcs)
1 x User Instructions
| Ports & interfaces | |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Console port | SPHD-18 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Certification | CN ZL 01124239.6 , CN ZL 200410031689.0 , CN ZL 200410042772.8 , CN ZL 200710181531.5 , DE 102004019107 , DE 102004058233 , JP 4160936 , JP 5244448 , TW 150098 , TW I237762 , TW I243890 , TW I339467 , US 6160543 , US 6489854 , US 7532998 , US 7585176 , US 7613854 , US 8090553 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3 W |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 865 mm |
| Depth The distance from the front to the back of something. | 127 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 330 g |
| Packaging content | |
| Cables included | KVM |
| Manual |
|
| AC adapter included |
|
| SKU | 700052 |
| MPN | KA7171-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
