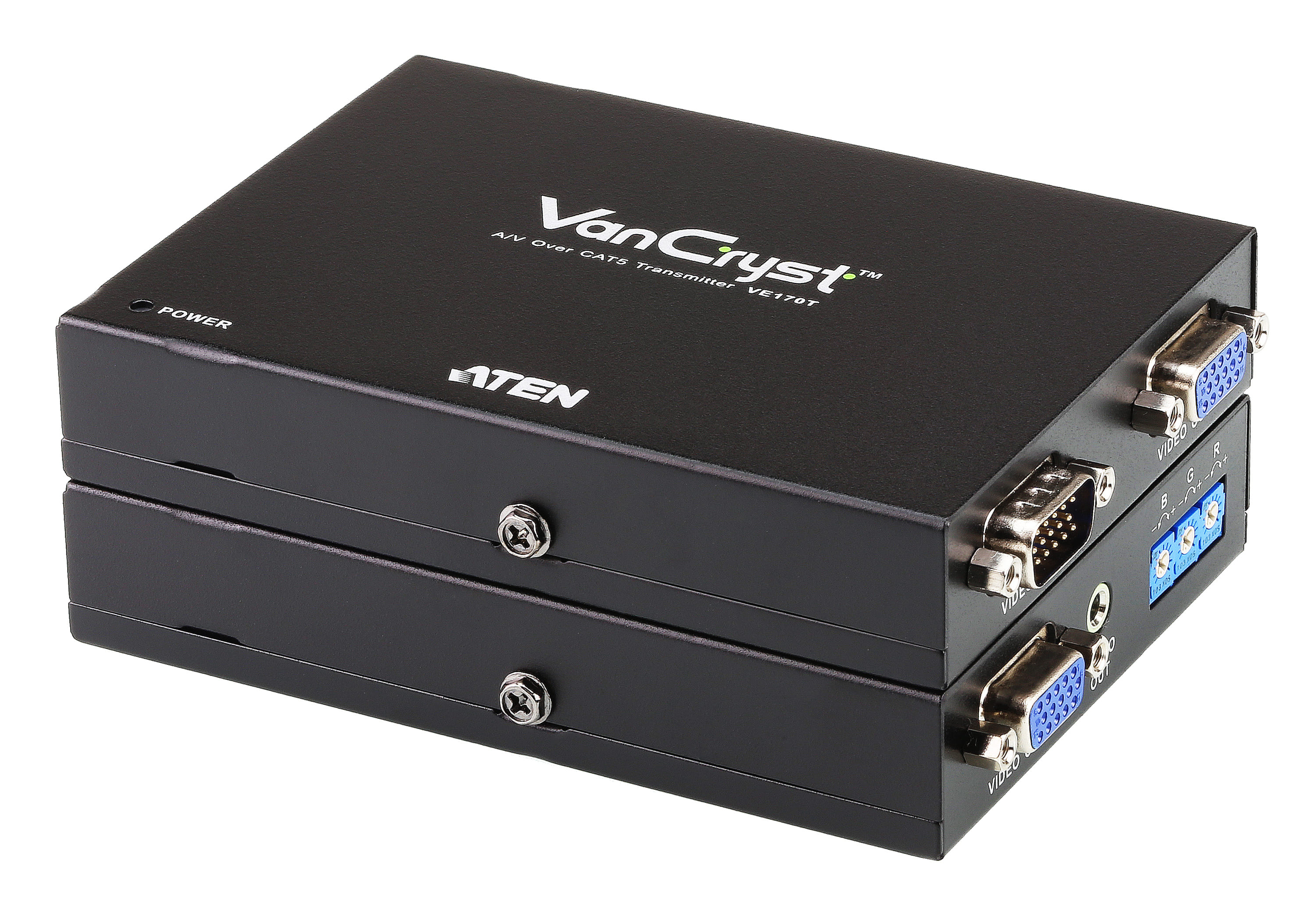

Aten Professional Video Extender VGA Via Cat5 with Audio & Deskew, Supports One local & One Remote Output, 1900x1200@60Hz 150m, 1280x1024@60hz 300m
The VE170Q package consists of a transmitter (VE170T) and receiver (VE170RQ), which includes ATEN s patented Deskew technology that supports resolutions up to 1280 x 1024 @ 300 m, and features manual synchronization of the RGB signals and correction of color phase and timing errors that occur over long distances.
The VE170Q VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance.
Connects a transmitter and receiver via Cat 5e cable
Long distance transmission - up to 1920 x 1200@30m; 1024 x 768@300m
Supports one local and one remote VGA display
Long distance transmissions " up to 300 m
Deskew " automatically synchronizes the time delay of RGB signals to compensate for distance
Adjustable Gain Control " signal strength can be manually adjusted via video gain or video compensation tuners
Audio supported (mono)
Built-in ESD protection
Rack-mountable
The VE170Q VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance.
Connects a transmitter and receiver via Cat 5e cable
Long distance transmission - up to 1920 x 1200@30m; 1024 x 768@300m
Supports one local and one remote VGA display
Long distance transmissions " up to 300 m
Deskew " automatically synchronizes the time delay of RGB signals to compensate for distance
Adjustable Gain Control " signal strength can be manually adjusted via video gain or video compensation tuners
Audio supported (mono)
Built-in ESD protection
Rack-mountable
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Cable types supported | Cat5e |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 541301 |
| MPN | VE170Q-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
