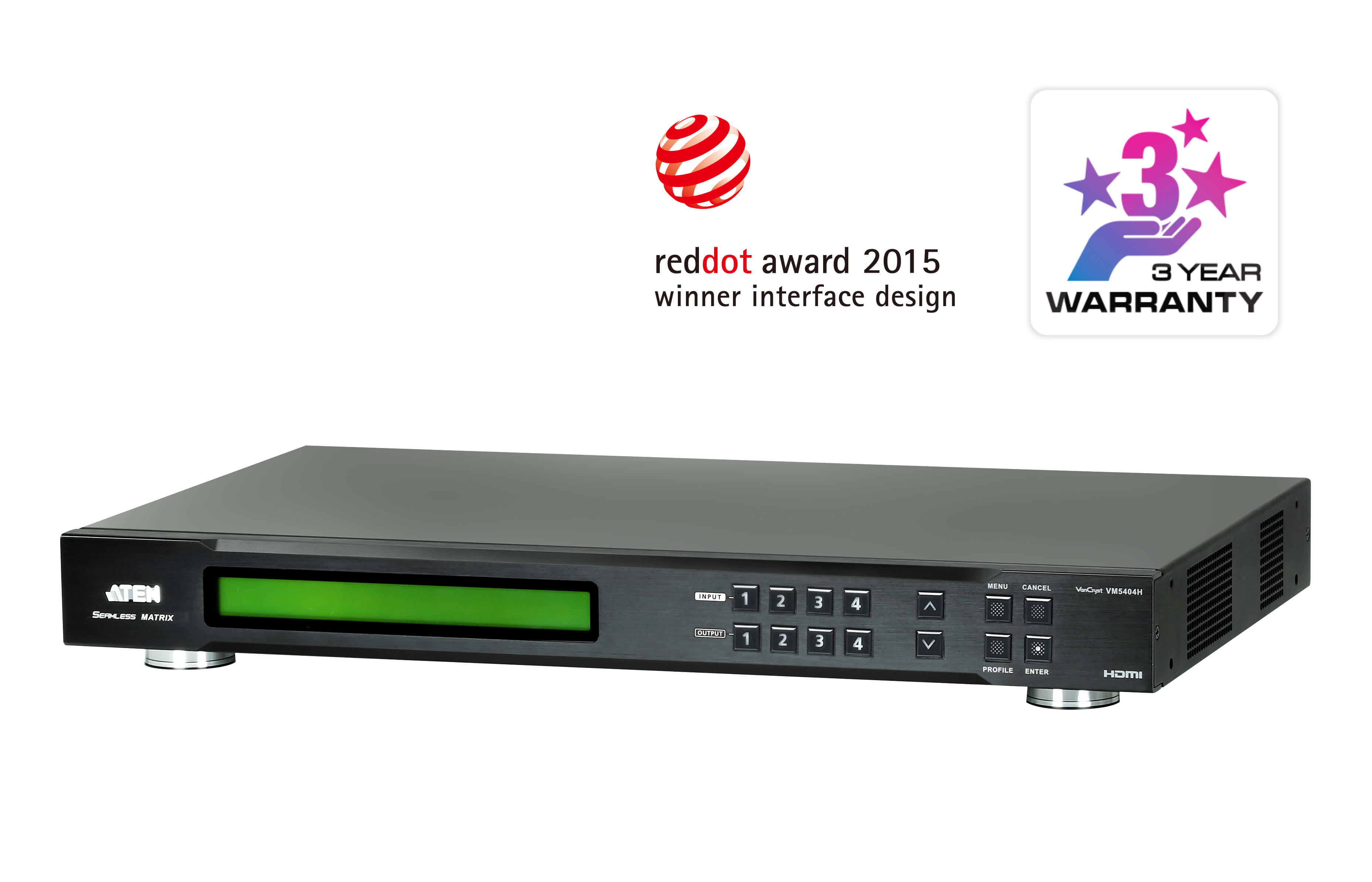

Aten Professional Matrix 4x4 HDMI Matrix with Scaler, Seamless Switch, Video Wall, control via front-panel pushbuttons, IR remote and RS232 control
The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.
The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
Connects any of 4 HDMI sources to any of 4 HDMI displays
Long Distance Transmission " supports up to 15 m (24 AWG)
HDMI (3D, Deep color); HDCP 1.4 compatible
Seamless Switch " ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions*
Video Wall "allows you to create custom video wall layouts via intuitive web GUI *
Scaler " features a video scaling function to convert input resolutions to the optimum display resolutions
EDID Expert " selects optimum EDID settings for smooth power-up and highest quality display
Multiple Control Methods " system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
View and control via ATEN Video Matrix Control App in a swift and agile way
Features a built in high-performance scaler for the best image quality
The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
Connects any of 4 HDMI sources to any of 4 HDMI displays
Long Distance Transmission " supports up to 15 m (24 AWG)
HDMI (3D, Deep color); HDCP 1.4 compatible
Seamless Switch " ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions*
Video Wall "allows you to create custom video wall layouts via intuitive web GUI *
Scaler " features a video scaling function to convert input resolutions to the optimum display resolutions
EDID Expert " selects optimum EDID settings for smooth power-up and highest quality display
Multiple Control Methods " system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
View and control via ATEN Video Matrix Control App in a swift and agile way
Features a built in high-performance scaler for the best image quality
| Features | |
| Product type The sub-category of the product. | Scaling matrix switcher |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 1.4 |
| 3D The device can be used with 3D technology. |
|
| Extended display identification data (EDID) |
|
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Ports & interfaces | |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 34.4 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 6.04 kg |
| Master (outer) case length | 515 mm |
| Master (outer) case width | 338 mm |
| Master (outer) case height | 155 mm |
| Master (outer) case net weight | 4.32 kg |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 262.3 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.32 kg |
| Package width The distance from one side of the packaging to the other. | 338 mm |
| Package depth The distance from the front to the back of the packaging. | 515 mm |
| Package height The distance from the top to the bottom of the packaging. | 155 mm |
| Package weight Weight of the packaged product. | 6.04 kg |
| Packaging content | |
| Cables included | AC |
| SKU | 541319 |
| MPN | VM5404H-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
