Overview

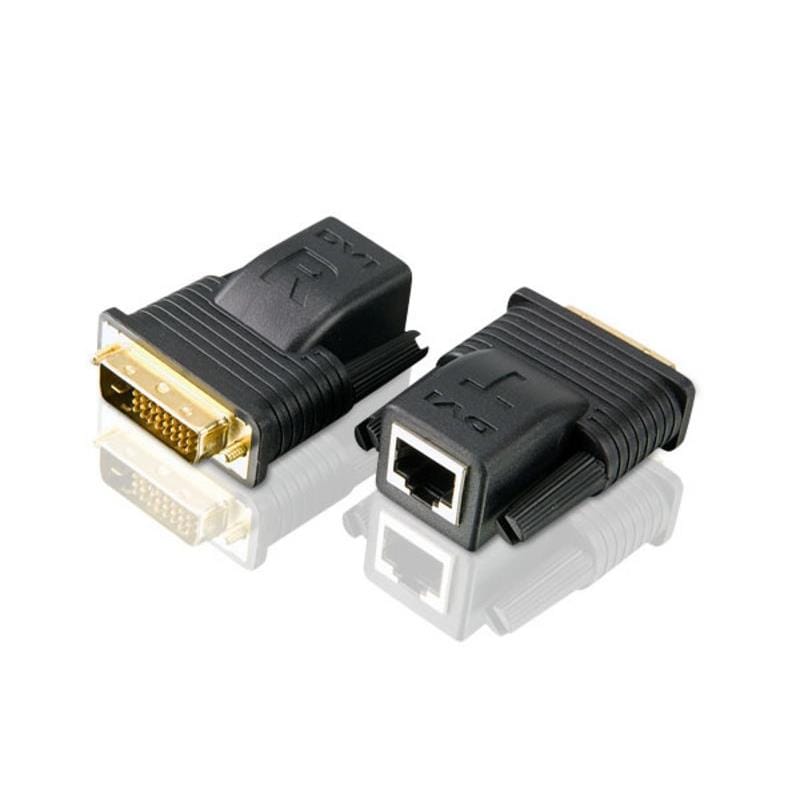

The VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6 cable, providing a
convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 Transmitter connected to the source or the VE066 Receiver
connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to extend your DVI display.
Package Contents
- 1x VE066T Mini Cat 5 DVI Extender (Transmitter)
- 1x VE066R Mini Cat 5 DVI Extender (Receiver)
- 1x User Instructions
Features
- Extends the distance between DVI source and DVI display
- Uses Cat 5e cable to connect the Transmitter and Receiver units
- Long distance transmission - up to 20 m*
- HDCP 1.1 Compliant
- Supports hot-plugging
- Superior video quality - up to 1920 x 1200
- Compact housing
- Compatible with all ATEN DVI switches and DVI splitters
- Supports LCD Screen, Plasma TV, and projectors
- Perfect for Home entertainment system, Bank, Surveillance system, Outdoors multimedia display, Airport, Finance institution
- Smart Video Display - Image quality is optimized based on the available resolution of the output device
- Non-Powered
* Using different source devices / display devices will result in varying results. For best results, we recommend using high quality cables
Diagram
Specifications
Mini Cat 5 DVI Extender
| Function | VE066R | VE066T |
| Physical Properties | ||
| Weight | 0.05 kg ( 0.11 lb ) | 0.05 kg ( 0.11 lb ) |
| Dimensions (L x W x H) | 5.66 x 4.07 x 2.15 cm (2.23 x 1.6 x 0.85 in.) |
5.66 x 4.07 x 2.15 cm (2.23 x 1.6 x 0.85 in.) |
| Housing | Plastic | Plastic |
| Carton Lot | 20 pcs | 20 pcs |
| Video Input | ||
| Interfaces | N/A | 1 x DVI-D Male (Gold) |
| Impedance | N/A | 100 Ώ |
| Video Output | ||
| Interfaces | 1 x DVI-D Male (Gold) | N/A |
| Impedance | 100 Ώ | N/A |
| Video | ||
| Max. Data Rate | 4.95 Gbps (1.65 Gbps Per Lane) | 4.95 Gbps (1.65 Gbps Per Lane) |
| Max. Pixel Clock | 165 MHz | 165 MHz |
| Compliance | HDCP Compatible | HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080P@15m; 1080i@20m | Up to 1080P@15m; 1080i@20m |
| Environmental | ||
| Operating Temperature | 0 - 50°C | 0 - 50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| Features | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 40.7 x 56.6 x 21.5 mm |
| SKU | 318500 |
| MPN | VE066-AT |
