Aten Lt.Wt. PS/2-USB VGA LCD Console With USA Keyboard
Item No:
699785
MPN:
CL3000N-ATA-AU
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN Lightweight Single Rail LCD Console (PS/2 USB, VGA), 48.3 cm (19"), 1280 x 1024 pixels, TFT LCD, 250 cd/m 2, 1000:1, 170 Deg

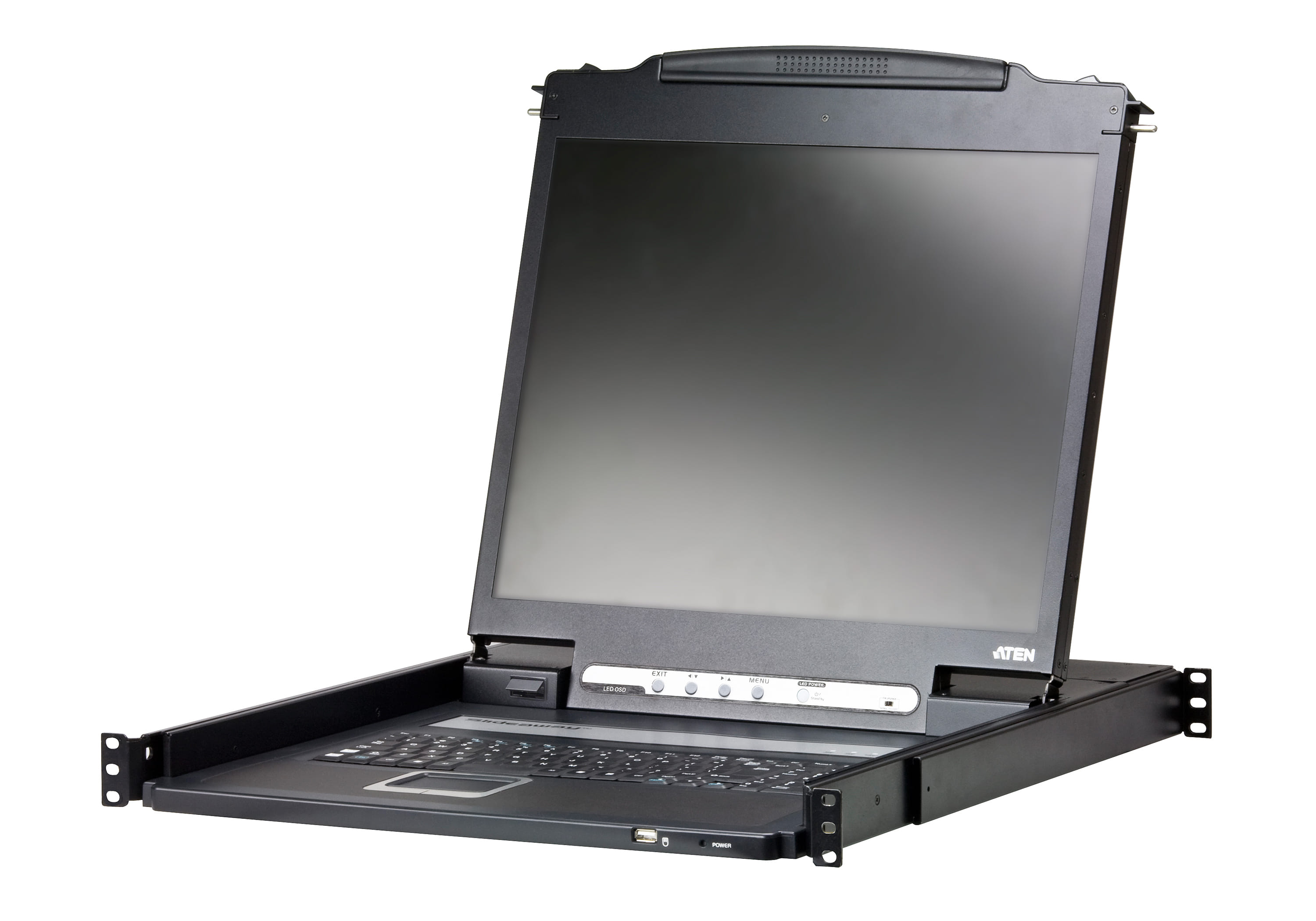

The CL3000 Lightweight PS/2 USB LCD Console is a LCD KVM console that serves as the front end console for compatible KVM switches.
Lightweight and with a 19" power saving LED backlit LCD, the CL3000 offers a space saving, streamlined approach to KVM switch technology by integrating a keyboard, LED backlit LCD monitor, and touchpad in a 1U housing.
In addition, testing is performed utilizing the MIL STD 810G* (Method 514.6, Procedure 1, Category 4 Common Carrier) procedure for Vibration Certification. MIL STD 810G testing provides proven reliable operations of the CL3000 in harsh environments, by using advanced testing to emphasize the equipment s environmental design and limits in real world conditions that it will experience throughout its life; such as operating in a moving vehicle or on a factory floor where high vibrations occur often.
Lightweight and with a 19" power saving LED backlit LCD, the CL3000 offers a space saving, streamlined approach to KVM switch technology by integrating a keyboard, LED backlit LCD monitor, and touchpad in a 1U housing.
In addition, testing is performed utilizing the MIL STD 810G* (Method 514.6, Procedure 1, Category 4 Common Carrier) procedure for Vibration Certification. MIL STD 810G testing provides proven reliable operations of the CL3000 in harsh environments, by using advanced testing to emphasize the equipment s environmental design and limits in real world conditions that it will experience throughout its life; such as operating in a moving vehicle or on a factory floor where high vibrations occur often.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 48.3 cm (19") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 1024 pixels |
| Display The description of display that can includes display type, resolution, size etc. | TFT-LCD |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 160° |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.294 x 0.294 mm |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 5 ms |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium |
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | MIL-STD-810G |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| LED indicators |
 |
| Sustainability compliance |
|
| Sustainability certificates | CE, RoHS, UKCA |
| Ports & interfaces | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SPHD |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| USB 2.0 Type-A ports quantity | 1 |
| Keyboard | |
| Keyboard number of keys | 105 |
| Built-in touchpad |
|
| Hot keys |
|
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 23.8 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 589.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 480 mm |
| Depth The distance from the front to the back of something. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9 kg |
| Packaging content | |
| Cables included | AC, KVM |
| Manual |
|
| SKU | 699785 |
| MPN | CL3000N-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
