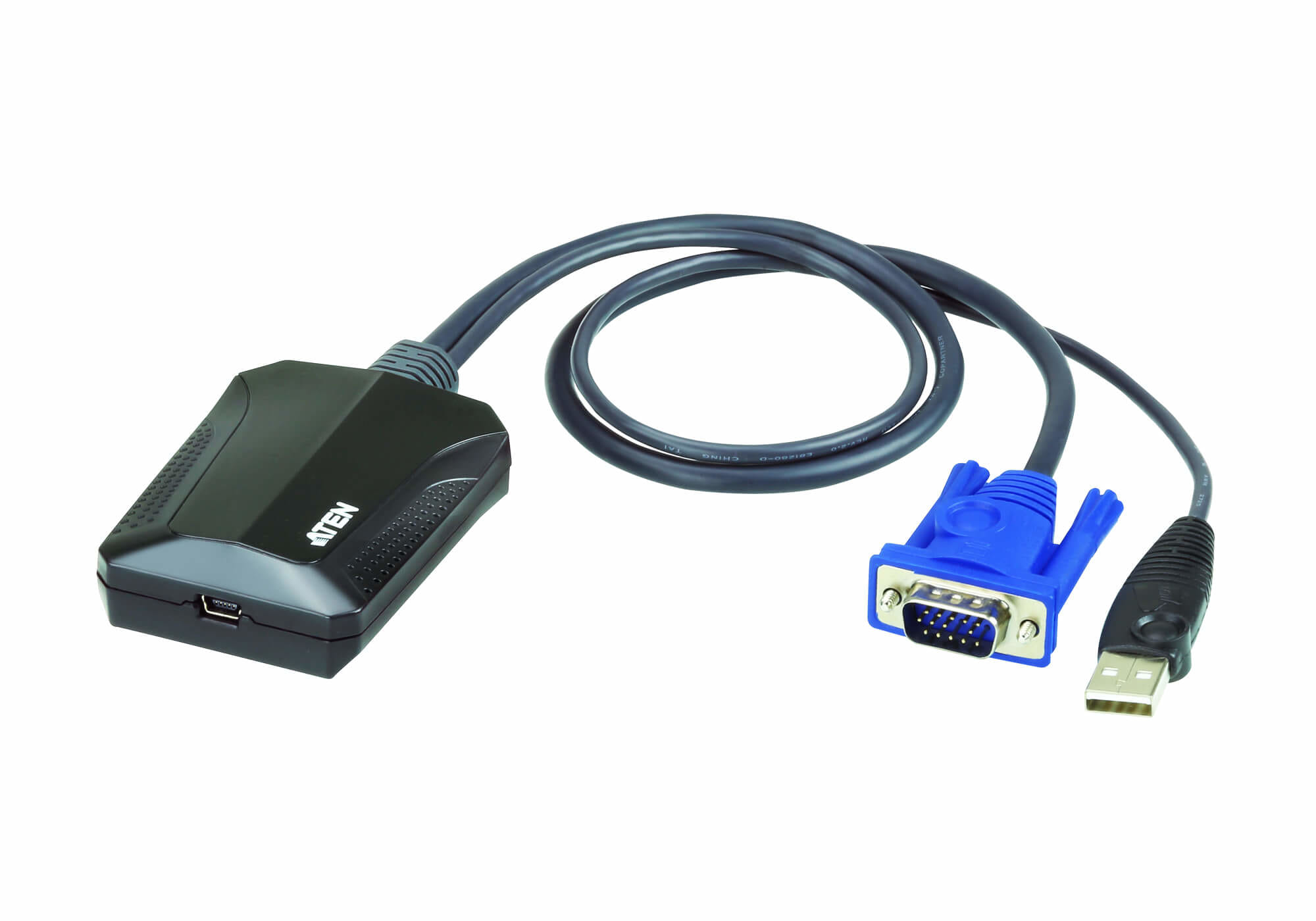

ATEN Laptop USB Console Adapter
'Turn your laptop into a mobile console in a few seconds.' The CV211 Laptop USB Console Adapter provides a direct Laptop-to-Computer connection for fast and easy remote desktop access with no software to install. High efficiency in a compact design, the CV211 offers bi-directional file transfers, hotkey macros, video recording and screenshots through a USB 2.0 and VGA composite cable. The innovative virtual media function provides file application, OS patching and software installations, as well as diagnostic testing through the CV211's intuitive graphical user interface (GUI) which provides easy operation and fast remote access. The GUI console window can be adjusted to the exact size and resolution of the remote computer's desktop by re-sizing the pane automatically; or you can manually adjust the window size as you see fit. This allows you to view the server's entire desktop without needing to use a scroll bar. In addition, the unique cable clip design is utilised for easy tidying up of disorganised cables while the CV211 is being used and transported. The CV211 is recommended as a portable direct connect server access troubleshooting device for IT professionals.
Specifications:
- Computer Connections: 1
- Connectors:
- Laptop USB Console (LUC) Port: 1 x Mini-USB Female (Black)
- KVM (Computer) Ports: 1 x USB Type A Male (Black) 1 x VGA Male (Blue)
- LEDs: 1 (Blue)
- Environmental:
- Operating Temperature: 0 - 40°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-condensing
- Physical Properties:
- Housing: Plastic
- Weight: 0.13 kg (0.29 lb)
- Dimensions (L x W x H): 7.05 x 5.37 x 3.01 cm (2.78 x 2.11 x 1.19 in.)
| Features | |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Female |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Blue |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 130 g |
| Width The measurement or extent of something from side to side. | 53.7 mm |
| Depth The distance from the front to the back of something. | 70.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 30.1 mm |
| SKU | 234647 |
| MPN | CV211-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
