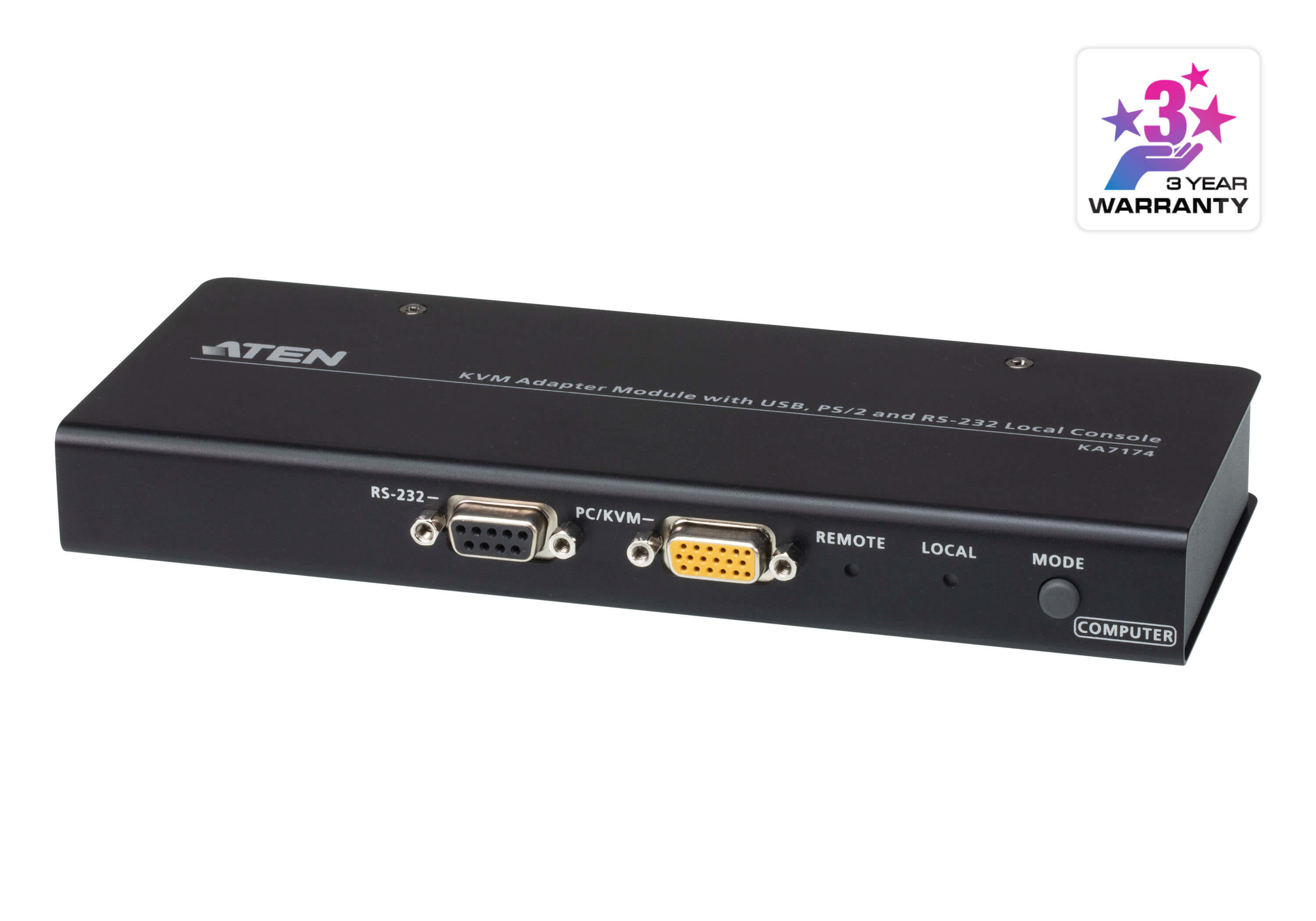

Aten KVM Adapter Module With USB, PS2, RS232
Item No:
700055
MPN:
KA7174-AX-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN KA7174 AX U, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 1.75 W, Black
KA7174 KVM Adapter Module is designed to provide a convenient local console connection in a KVM over IP switch or matrix KVM installation. KA7174 allows a PS/2, USB, or RS 232 server to be connected to an ATEN KVM over IP switch via Cat 5e / 6 cable while providing an extra local console connection supporting USB or PS/2 keyboard and mouse, monitor, and / or RS 232 touch panel for convenient local operation. In addition, the KA7174 also features Privileged Console Control function with OSD tag notifications indicating denial of access to the local or remote users when configured as such.
| Ports & interfaces | |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| DC input voltage | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.75 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 86.4 mm |
| Depth The distance from the front to the back of something. | 203 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 490 g |
| SKU | 700055 |
| MPN | KA7174-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
