Features
- Allows you to connect a KVM switch with a DisplayPort video port and USB ports of a managed computer
- Audio Extraction Support ( Audio De-Embedder )
- Automatic signal compensation (ASC) - no need to adjust the DIP-switches for different distances
- Keyboard and mouse emulation - ensures uninterrupted operation of the server when disconnecting the KVM switch from the port or switching to another port
- Virtual Media Support Function ** (Virtual Media) **
- Smart Card / Public Access Card (CAC) Reader **
- Resolution support up to 1920 x 1200 (in “Reduced blanking†mode) ***
- Integrated ASIC chip for increased reliability and compatibility
- Compact size
- Firmware update capability
Description

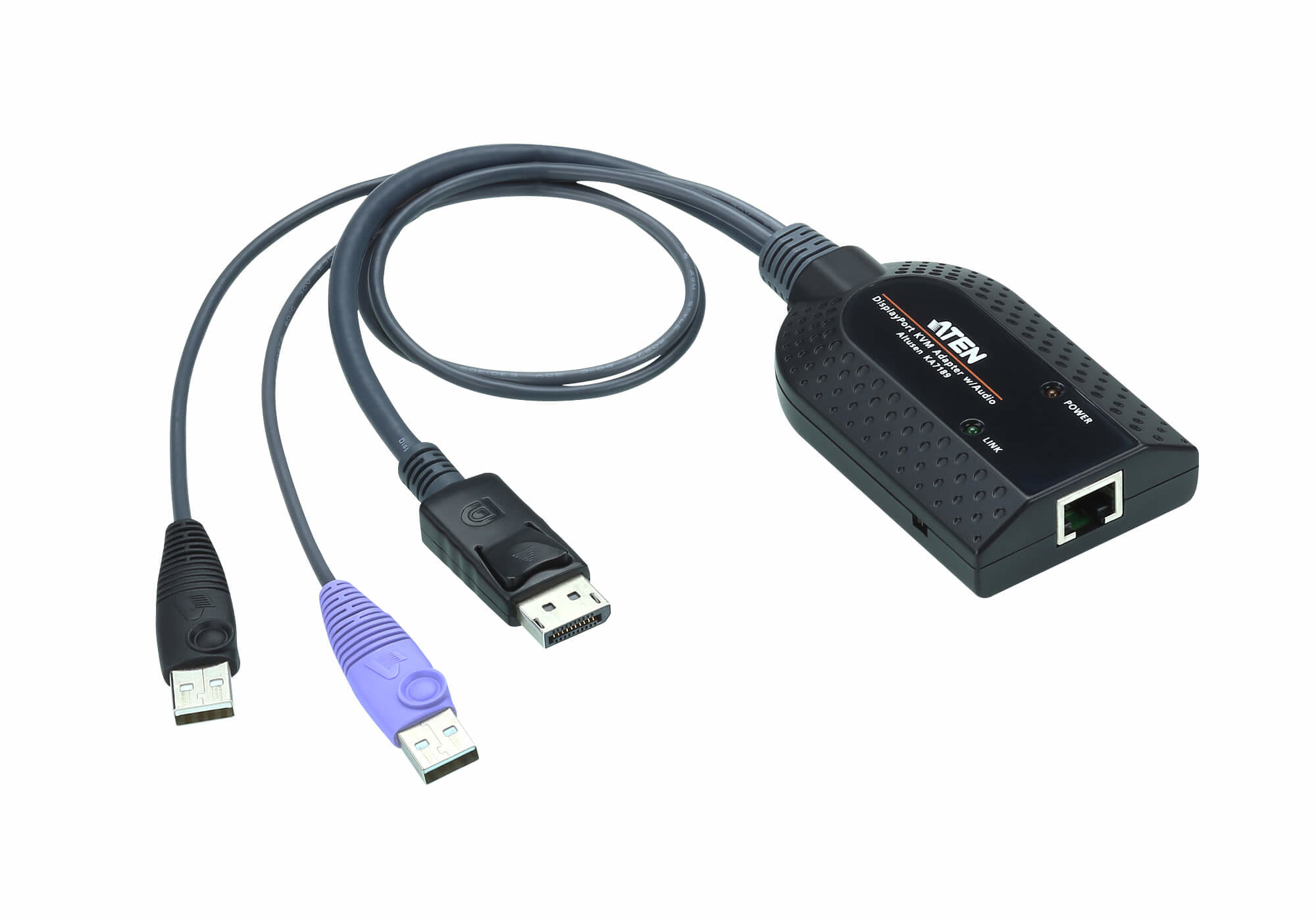

The KA7189 adapter cable is used to connect a KVM switch to the KVM ports of a managed computer via DisplayPort and USB interfaces. * The KA7189 supports Virtual Media, which provides access to the server’s USB port from a remote computer. Additionally, KA7189 provides the ability to remotely read smart cards / CAC via USB connector.
Also, the KA7189 adapter cable is equipped with an audio de-embedder function, which allows you to select an audio signal from a DisplayPort stream. Additional advantages of cable adapter KA7189 are small size and weight. At the same time, it implements improved technologies for signal compensation and delay of its distortion (Delay Skew), which allows to achieve high quality images.
Specifications
|
Connectors |
|
|
Connection |
1 x RJ-45 jack |
|
Computer |
2 x USB type A |
|
connector 1 x DisplayPort connector |
|
|
LED indicators |
|
|
Connection |
1 (green) |
|
Nutrition |
1 (orange) |
|
Physical properties |
|
|
Housing |
Plastic |
|
Weight |
0.11 kg (0.24 lb) |
|
Dimensions (L x W x H) |
9.10 x 5.60 x 2.14 cm |
| Technical details | |
| Sustainability certificates | RoHS |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 0.5 m |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| Console port | RJ-45 |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Packaging data | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 110 g |
| SKU | 505970 |
| MPN | KA7189-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
