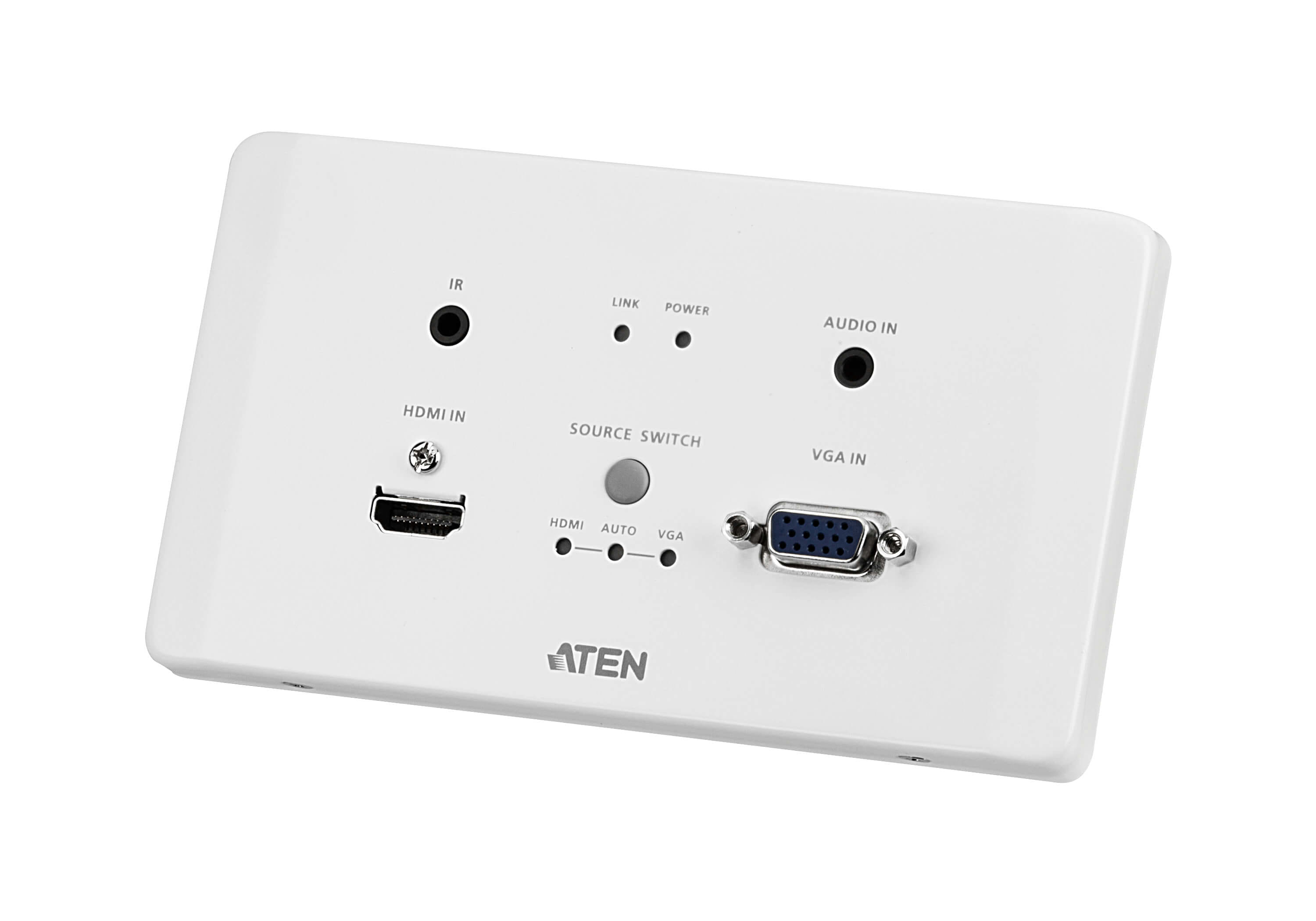

ATEN VE2812AEUT-AT-U, 4096 x 2160 pixels, AV transmitter, 100 m, Wired, 3D, HDCP
With minimal dimension requirements that can fit both EU and MK standards across different regions, the VE2812AEUT is a wall plate transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a cable that is designed to merge with the clean and elegant d
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum refresh rate | 60 Hz |
| LED indicators | Status |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1600 x 1200 (UXGA),1920 x 1200 (WUXGA),3840 x 2160,4096 x 2160 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| 3D The device can be used with 3D technology. |
|
| Control type The way in which the device is controlled. | Buttons |
| Firmware upgradeable |
|
| Consumer Electronics Control (CEC) support |
|
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Baud rate | 19.2 Kbit/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| HDBaseT certified |
|
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| HDMI version | 1.4 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Power consumption (TX) | 3.14 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 50 mm |
| Depth The distance from the front to the back of something. | 108 mm |
| Height The measurement of the product from head to foot or from base to top. | 51.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| SKU | 646408 |
| MPN | VE2812AEUT-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
