HDMI 2.0; HDCP 2.2; HDR. Support up to 10m@4K@60Hz(4:4:4 8bits); 20m@1080p resolution. The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.

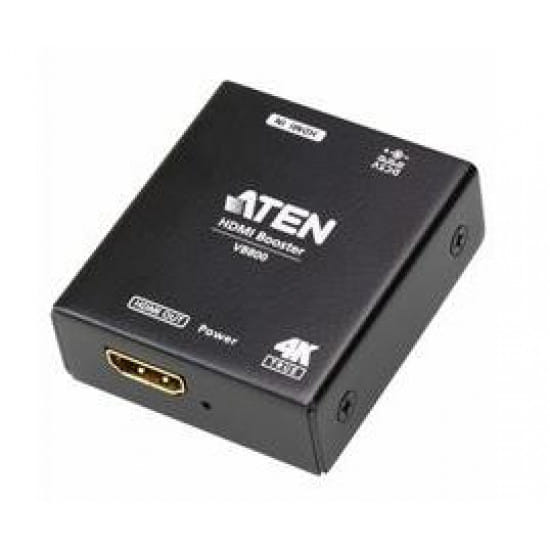

ATEN HDMI True 4K Booster
The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
-
Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
-
HDMI (3D, Deep Color, 4K)
-
Max. Data Rate 18 Gpbs (6 Gbps Per Lane)
-
HDMI and HDCP 2.2 compatible
-
4K resolution when cascaded up to 10 levels
• Input/output max distance for single unit: True 4k resolution up to a distance of 10 meters; 1080p resolution up to a distance of 20 meters* -
A single unit can be powered from the source device
-
Supports HDR
-
Plug-and-play — No software installation required
-
Rack mountable
* Longer distances are possible with lower data rates and/or higher quality cable.
Package Contents
-
1x VB800 True 4k HDMI Booster
-
1x Power Adapter
-
1x Rack Mount Kit
-
1x User Instructions
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 20 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1080 (HD 1080) |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 600 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.99 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 56 mm |
| Depth The distance from the front to the back of something. | 49 mm |
| Height The measurement of the product from head to foot or from base to top. | 17 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 290 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 119 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 300 g |
| Packaging content | |
| Cables included | AC |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.56 kg |
| Master (outer) case net weight | 2.9 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 234955 |
| MPN | VB800-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
