Converts HDMI signals to VGA output, Superior video quality – up to 1920 x 1200, 1080p, Supports wide screen formats, Non-powered
Aten HDMI to VGA Adapter - Converts HDMI signals to VGA output, Superior video quality – up to 1920 x 1200, 1080p, Supports wide screen formats, Non-powered

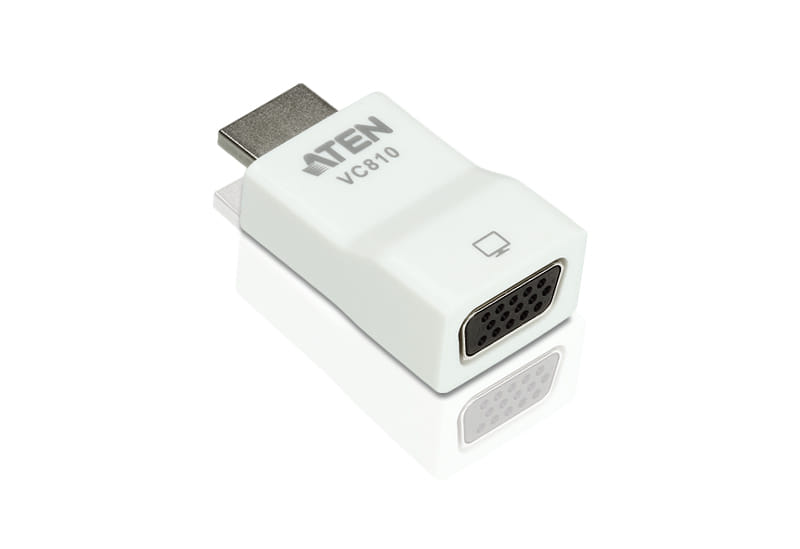

The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed – simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
- Converts HDMI signals to VGA output
- Superior video quality – up to 1920 x 1200, 1080p
- Supports wide screen formats
- Non-powered
Specifications:
- Connectors: Input 1 x HDMI Type A Male (Black)
- Output: 1 x HDB-15 Female (Black)
- Video Resolution: VGA, SVGA, XGA, SXGA,UXGA and resolutions up to1920 x 1200(PC) / 1080p(HDTV)
- Environment: Operating Temp. 0-60°C
- Storage Temp.: -10°C - 70°C
- Humidity: 40% - 85% RH, Non-condensing
- Physical Properties: Housing Plastic
- Weight: 0.01 kg
- Dimensions (L x W x H): 4.55 x 2.30 x 1.48 cm
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | VGA |
| Power | |
| External power adapter |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 23 mm |
| Depth The distance from the front to the back of something. | 45.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 14.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 g |
| SKU | 229586 |
| MPN | VC810-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Product Use | Business |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
