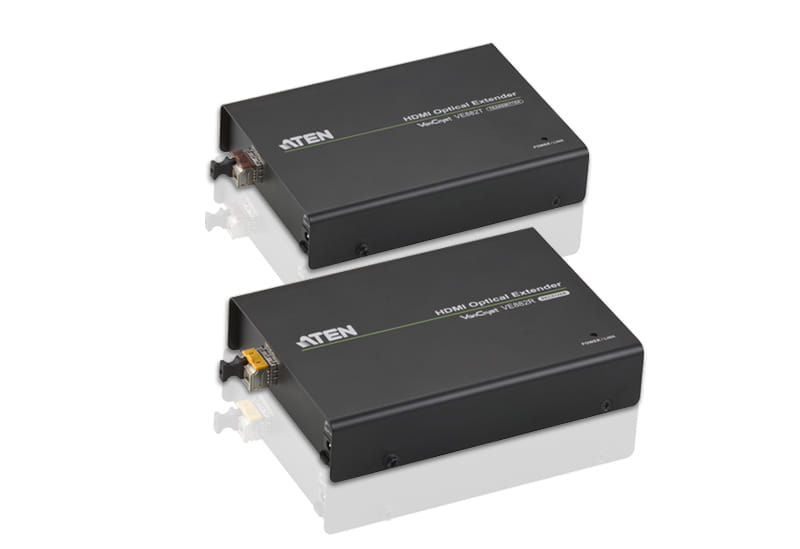

ATEN VE882-AT-U, AV transmitter & receiver, 600 m, Black
The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).
The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.
Package Contents
- 1x VE882T
- 1x VE882R
- 1x IR Transmitter
- 1x IR Receiver
- 1x Mounting Kit
- 2x Power Adapters
- 1x User Instructions
The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).
The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.
Package Contents
- 1x VE882T
- 1x VE882R
- 1x IR Transmitter
- 1x IR Receiver
- 1x Mounting Kit
- 2x Power Adapters
- 1x User Instructions
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 600 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Video in | 1 |
| Video out | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5.3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 420 g |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 700454 |
| MPN | VE882-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
