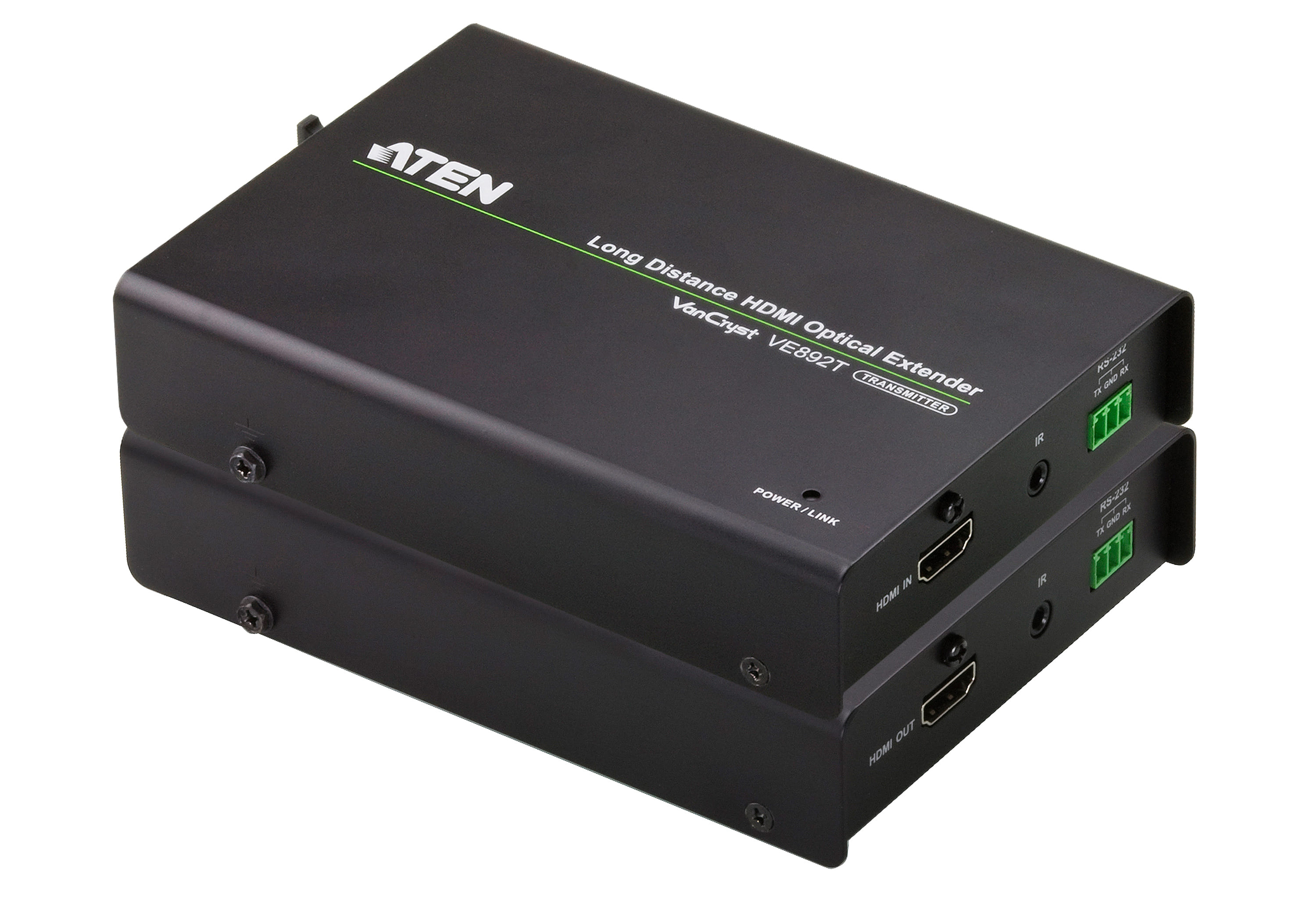

Aten VE892 HDMI Optical Extender (1080p@20km) (PROJECT)
Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
Very long distance transmission up to 20km
HDMI (3D, Deep Color), HDCP compatible signaling rates up to 3.125 Gbits
Superior video quality up to 1080p@60Hz
Supports full frequency IR signal from 30KHz to 60KHz
(The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
Uses one fiber optic cable to connect the local and remote units
Supports wide screen formats
Built-in 8KV/15KV ESD protection
Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
Supports bi-directional IR signal transmission, one way at a time
Rack-mountable
Hot-pluggable
Package Contents
1x VE892T
1x VE892R
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G IR Receiver
1x Mounting Kit
2x 0AD8-1605-24M1 Power Adapters
1x User Instructions
Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
Very long distance transmission up to 20km
HDMI (3D, Deep Color), HDCP compatible signaling rates up to 3.125 Gbits
Superior video quality up to 1080p@60Hz
Supports full frequency IR signal from 30KHz to 60KHz
(The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
Uses one fiber optic cable to connect the local and remote units
Supports wide screen formats
Built-in 8KV/15KV ESD protection
Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
Supports bi-directional IR signal transmission, one way at a time
Rack-mountable
Hot-pluggable
Package Contents
1x VE892T
1x VE892R
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G IR Receiver
1x Mounting Kit
2x 0AD8-1605-24M1 Power Adapters
1x User Instructions
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 20000 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Bandwidth | 6.75 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| HDCP version | 1.4 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | Blu-ray,Supports(3D),Supports(PS3),HDMI,ROHS,Weee |
| Compatible products Other products that can be used with this product. | 2X-EA12,2L-7D02H-1,2L-7D03H,2L-7D05H,2L-7D10H,2L-7D15H,2L-7D20H,2L-7D02H,VE-RMK1U,VE7832,VE7833,VE7834,VE7835,2L-7DA3H,2L-7DA6H,2L-7D01H,2L-7D05H-1,CS1842,CS1844,VE781010,VE781020,VE781030 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| Serial interface type | RS-232 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5.3 V |
| Power consumption (transmitter) (max) | 5.8 W |
| Power consumption (receiver) (max) | 4.69 W |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.31 kg |
| Receiver dimensions (WxDxH) | 103 x 141.7 x 30 mm |
| Receiver weight | 440 g |
| Transmitter dimensions (WxDxH) | 103 x 141.7 x 30 mm |
| Transmitter weight | 440 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width The distance from one side of the packaging to the other. | 100 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Package weight Weight of the packaged product. | 1.59 kg |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 8.53 kg |
| Master (outer) case volume | 29166.35 cm³ |
| Master (outer) case net weight | 655 g |
| SKU | 700460 |
| MPN | VE892-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
