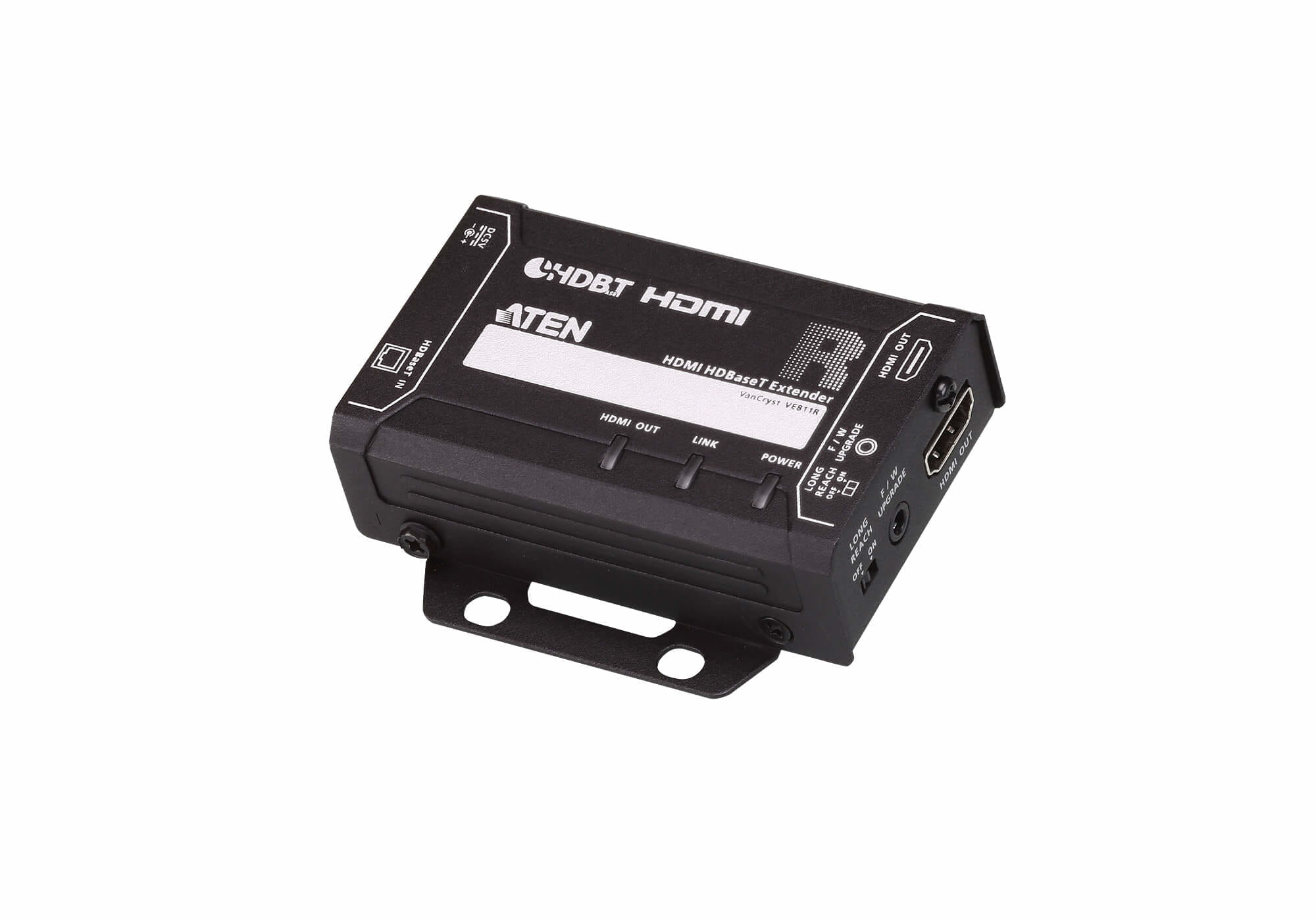

ATEN VE811R, 4096 x 2160 pixels, AV receiver, Wired, 3D, Black, HDCP
The ATEN VE811R HDMI HDBaseT Receiver guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811R meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K.
Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today
Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5,Cat6,Cat6a |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160,4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| 3D The device can be used with 3D technology. |
|
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Firmware upgradeable |
|
| Consumer Electronics Control (CEC) support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3.9 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 73 x 86.4 x 24.7 mm |
| Receiver weight | 170 g |
| SKU | 646471 |
| MPN | VE811R-AT-U |
